New

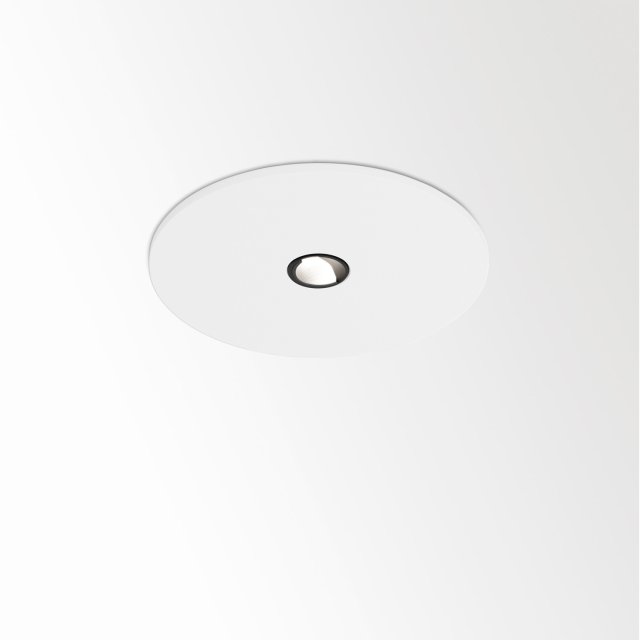

NIME II WALLWASH 930 W
White - 26416 9300 W
CRI
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 67 |
| Min. recessed depth (mm) | 90 |
| Thickness of mounting surface (mm) | 9,5-12,5 |
| IP | IP20 |
| Weight (kg) | 0.3 |
| Adjustability | non adjustable |
| Information | EXCL.LED POWER SUPPLY 350-700mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
Lightsource
| Light source | LED |
| LED information | LED cluster 2-4,3W / CRI>90 (R9: 50) / 3000K / 228-404lm |
| TM-30 Values | Rf: 90 / Rg: 101 |
| SDCM | SDCM3 |
| LM80 | L80 > 60000 |
| LED technics (light source) | 404lm // 4,3W // 94lm/W |
| LED technics (luminaire) | 354lm // 4,9W // 72lm/W |
Additional
| Requirements | LED POWER SUPPLY 350 / 500 / 700mA-DC DIM |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
