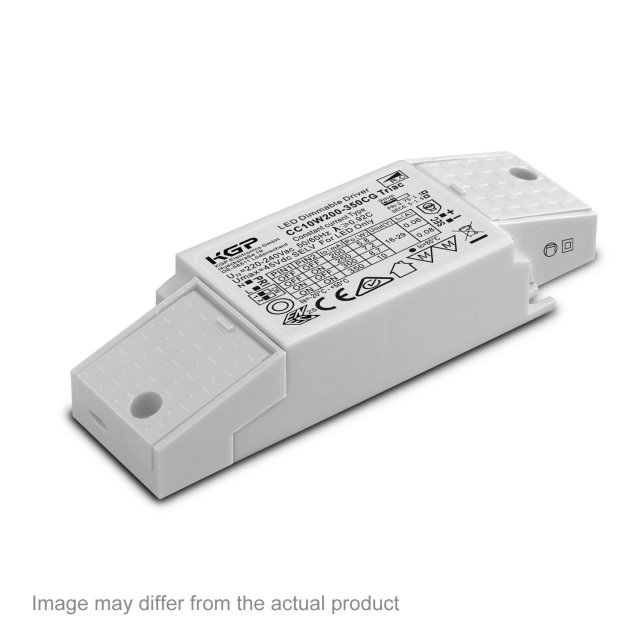

LED POWER SUPPLY MULTI POWER 200-350 / 10W DIM8

21012 0258

General

Location	Indoor
Cutout shape	round
Cutout size (mm)	50
IP	IP20
Weight (kg)	0.1
Information	MAINS DIMMING - TRAILING EDGE OUTPUT: 200mA / 5,8W / 16-29V-DC 250mA / 7,2W / 16-29V-DC 300mA / 8,7W / 16-29V-DC 350mA / 10W / 16-29V-DC λ > 0,9 Inrush current : 8A - 10µs @ 230V-AC Max. 28 units on circuit breaker B 16A @ 230V-AC

Electrical

Voltage	220-240V / 50-60Hz
Class	II
Dimming type	mains (phase cut-off)

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Installation manual

Where used

BOWIE CLIP

BOWIE CLIP 92725 B-B

Product name	CRI	CCT	Beam angle^°	IP	Cutout size^mm
BOWIE CLIP 92725	90	2700K	25	IP20	51
BOWIE CLIP 92737	90	2700K	37	IP20	51
BOWIE CLIP 93025	90	3000K	25	IP20	51
BOWIE CLIP 93037	90	3000K	37	IP20	51

BOWIE CLIP

BOWIE CLIP

Finish colours

CARREE ST LED

CARREE ST LED 92733 A

Product name	CRI	CCT	Beam angle^°	Adjustability	IP
CARREE ST LED IP 92733	90	2700K	33	-	IP44
CARREE ST LED IP 93033	90	3000K	33	-	IP44
CARREE ST OK LED 92733	90	2700K	33	0-25°	IP23/20
CARREE ST OK LED 93033	90	3000K	33	0-25°	IP23/20

CARREE ST LED

CARREE ST LED

Finish colours

CARREE TRIMLESS LED IP

CARREE TRIMLESS LED IP 92733 S1 W

Product name	CRI	CCT	Beam angle^°	Adjustability	IP
CARREE TRIMLESS LED IP 92733 S1	90	2700K	33	-	IP44/20
CARREE TRIMLESS LED IP 93033 S1	90	3000K	33	-	IP44/20

CARREE TRIMLESS LED IP

Finish colours

CARREE TRIMLESS OK

CARREE TRIMLESS OK LED 9-SOFT B

Product name	CRI	CCT	Beam angle^°	Adjustability	IP
CARREE TRIMLESS OK LED 92733	90	2700K	33	0-25°	IP23/20
CARREE TRIMLESS OK LED 93033	90	3000K	33	0-25°	IP23/20

CARREE TRIMLESS OK

CARREE TRIMLESS OK

Finish colours

CARREE X

CARREE X LED 92733-65 S2 A

Product name	CRI	CCT	Beam angle^°	Location	Adjustability	IP
CARREE X LED 92733 S1	90	2700K	33	Indoor, Outdoor	-	IP44/20-22/20
CARREE X LED 93033 S1	90	3000K	33	Indoor, Outdoor	-	IP44/20-22/20
CARREE X LED 92733-65 S1	90	2700K	33	Indoor, Outdoor	-	IP65
CARREE X LED 93033-65 S1	90	3000K	33	Indoor, Outdoor	-	IP65
CARREE X LED 92733-65 S2	90	2700K	33	Indoor, Outdoor	-	IP65

CARREE X

CARREE X

CARREE X

Finish colours
