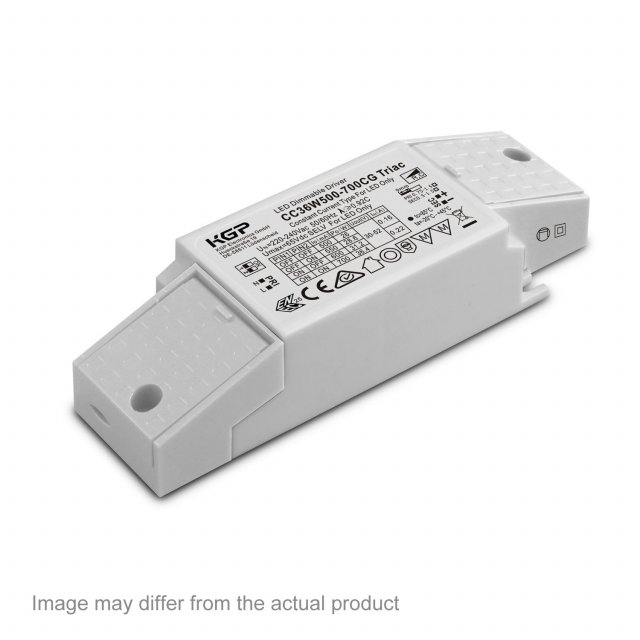

LED POWER SUPPLY MULTI POWER 500-700 / 36W DIM8
21012 0288
General
| Location | Interior |
| Cutout shape | round |
| Cutout size (mm) | 55 |
| IP | IP20 |
| Weight (kg) | 0.1 |
| Information | MAINS DIMMING - TRAILING EDGE
OUTPUT: 500mA / 26W / 30-52V-DC 550mA / 28,6W / 30-52V-DC 600mA / 31,2W / 30-52V-DC 700mA / 36,4W / 30-52V-DC λ > 0,9 Inrush current : 30A - 500µs @ 230V-AC Max. 8 units on circuit breaker B 16A @ 230V-AC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | II |
| Dimming type | mains (phase cut-off) |
Technical data was measured in optimum conditions.
