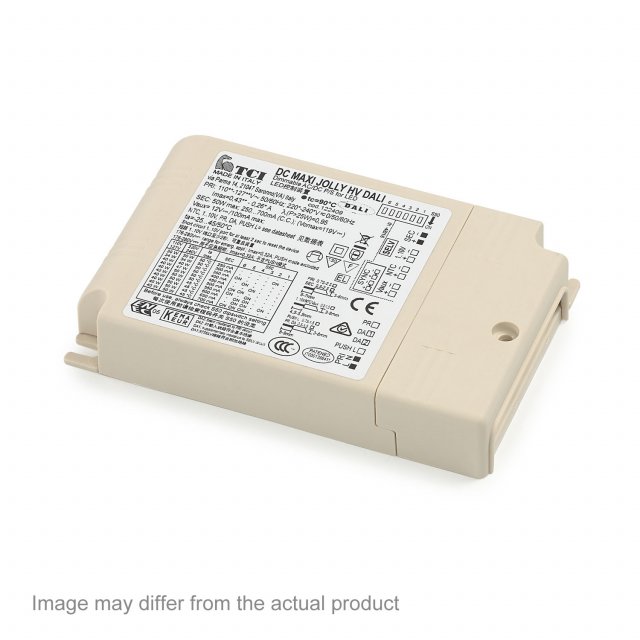

LED POWER SUPPLY MULTI-POWER HV DIM9
Add to pinlist

General

Location
Indoor
Cutout shape
round
Cutout size (mm)
84
IP
IP20
Weight (kg)
0.1
Information
OUTPUT:
250mA / 28W / 20-112V-DC 350mA / 39W / 20-112V-DC 500mA / 56W (110V:40W)/ 2-112V-DC 650mA / 60W (110V:40W) / 2-92V-DC 700mA / 60W (110V:40W)/ 2-86V-DC λ > 0,9 Inrush current : 10A - 200µs @ 230V-AC Max. 30 units on circuit breaker B 16A @ 230V-AC

Electrical

Voltage
110-240V / 0|50-60Hz
Class
II
Dimming type
1-10V or DALI or push button
Technical data was measured in optimum conditions.
