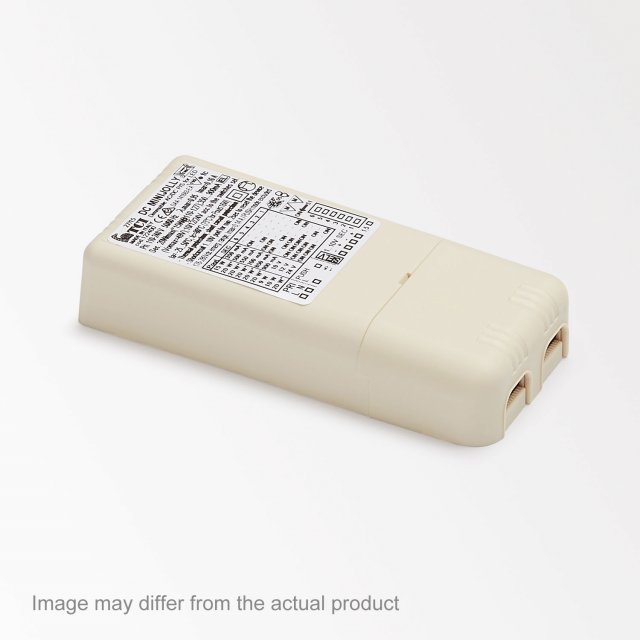

LED POWER SUPPLY MULTI-POWER DIM7

General

Location
Indoor
Cutout shape
round
Cutout size (mm)
55
IP
IP20
Weight (kg)
0.1
Information
OUTPUT:
250mA / 13W (110V:13W) / 20-53V-DC 350mA / 18W (110V:15W) / 15-50V-DC 450mA / 20W (110V:15W) / 5-45V-DC 500mA / 20W (110V:15W) / 5-40V-DC 650mA / 20W (110V:15W) / 3-31V-DC 700mA / 20W (110V:15W) / 3-29V-DC 900mA / 20W (110V:15W) / 3-23V-DC λ > 0,9
Inrush current : 5A - 50µs @ 230V-AC Max. 50 units on circuit breaker B 16A @ 230V-AC

Electrical

Voltage
110-240V / 0|50-60Hz
Class
II
Dimming type
1-10V or push button
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Where used

DEEP RINGO LED

DEEP RINGO X 92733 B
Product nameLED lmlmWattWBeam angle°CRICCTDiametermmIPAdjustabilityCutout sizemm
DEEP RINGO SOFT 93045103810.245903000K-1800K91IP43/20-76
