STIG 830 N

Anthracite - 232 20 83 N

CRI

CCT

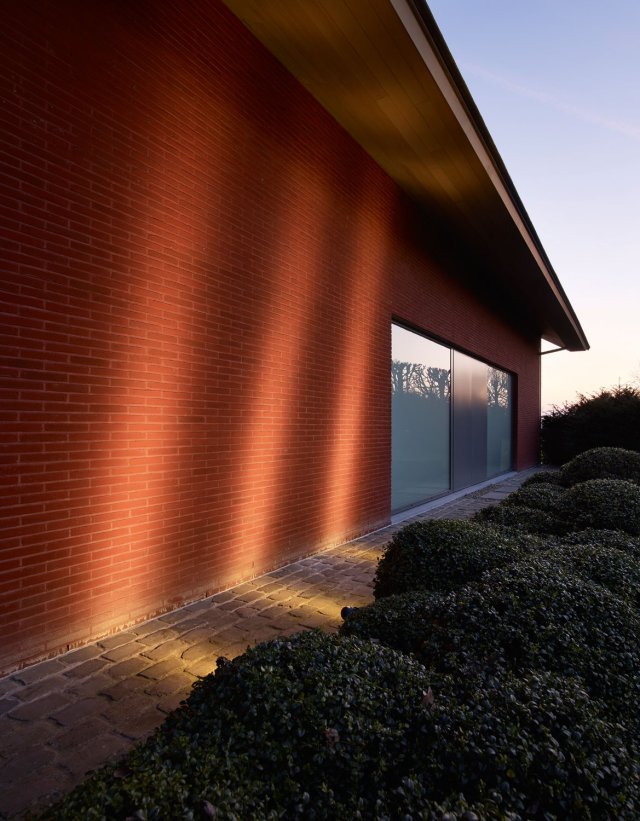

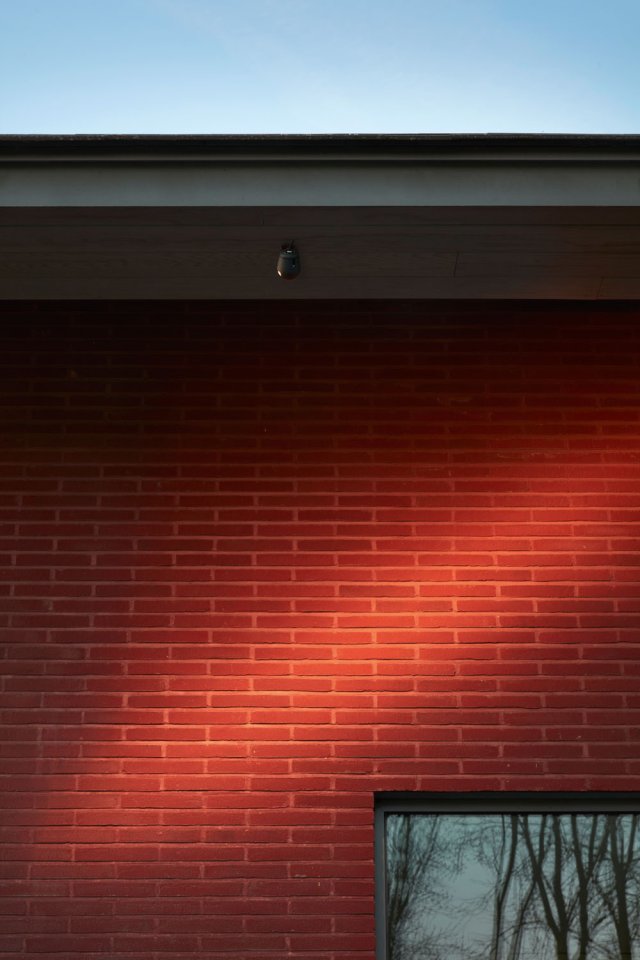

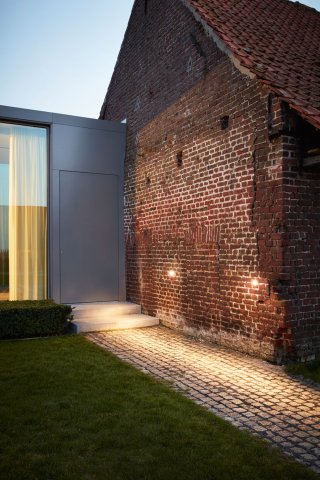

Interesting projects

General

Location	Outdoor
Fixation	Ceiling, Floor, Wall
Installation	Surface mounted
IP	IP65
IK	IK03
Weight (kg)	0.5
Adjustability	180° swiveling, 360° rotatable
Information	INCL.LENS INCL.1 x CABLE H05 RN-F 2 x 1 mm² 2m EXCL.LED POWER SUPPLY 350-700mA-DC

Electrical

Class	III
Dimming type	depending on power supply
Energy class	G

Lightsource

Light source	LED
LED information	LED array 3,9-8,2W / CRI>80 / 3000K / 420-723lm
SDCM	SDCM2
Riskgroup	RG2 (threshold 0,6m)
LED technics (light source)	723lm // 8,2W // 87lm/W
LED technics (luminaire)	257lm // 9W // 27lm/W

Additional

Requirements	LED POWER SUPPLY 350 / 500 / 700mA-DC DIM
Options	PIN 16 / STRAP CBOX IP68 CONNECTION KIT IP68 CONNECTOR 3P

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Installation manual

Finish your specifications

Use the information listed below to complete your product

	Product name	Voltage	Class	Dimming type	IP	Cutout shape	Cutout size	max. devices / supply
	LED POWER SUPPLY MULTI POWER	220-240V	II	non-dimmable	IP20	round	50	2->3 \| 3 \| 3	Add to pinlist
	LED POWER SUPPLY MULTI POWER DIM1	220-240V	II	1-10V	IP20	round	54	4 \| 4 \| 4	Add to pinlist
	LED POWER SUPPLY MULTI POWER DIM5	220-240V	II	DALI	IP20	round	54	4 \| 4 \| 4	Add to pinlist
	LED POWER SUPPLY MULTI-POWER COMPACT WDL	220-240V	II	WDL = wireless dimmable	IP20	round	54	4 \| 4 \| 4	Add to pinlist
	LED POWER SUPPLY MULTI POWER 200-350 / 10W DIM8	220-240V	II	mains (phase cut-off)	IP20	round	50	2->2	Add to pinlist
	LED POWER SUPPLY MULTI POWER 200-350 / 15W DIM8	220-240V	II	mains (phase cut-off)	IP20	round	50	3->3	Add to pinlist
	LED POWER SUPPLY MULTI POWER 500-700 / 20W DIM8	220-240V	II	mains (phase cut-off)	IP20	round	55	2->2 \| 2->2	Add to pinlist
	LED POWER SUPPLY MULTI POWER 500-700 / 36W DIM8	220-240V	II	mains (phase cut-off)	IP20	round	55	3->4 \| 3->4	Add to pinlist
	LED POWER SUPPLY MULTI POWER 250-900 / 20W DIM8	220-240V	II	mains (phase cut-off)	IP20	round	48	3 \| 3 \| 2	Add to pinlist
	LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5	-	III	DALI	IP20	round	30	3	Add to pinlist
	LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5	-	III	DALI	IP20	round	30	3	Add to pinlist
	LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM5	-	III	DALI	IP20	round	30	3	Add to pinlist
	LED POWER SUPPLY 350mA-DC / 18W DIM8	220-240V	II	mains (phase cut-off)	IP20	round	55	3->4	Add to pinlist
	LED POWER SUPPLY MULTI-POWER DIM7	110-240V	II	1-10V or push button	IP20	round	55	2->4(3) \| 3(2) \| 2(1)	Add to pinlist
	LED POWER SUPPLY MULTI-POWER MINI DIM5	110-240V	II	DALI	IP20	round	55	4(3) \| 4(2) \| 2(1)	Add to pinlist
	LED POWER SUPPLY MULTI-POWER DIM9	110-240V	II	1-10V or DALI or push button	IP20	round	82	6(6) \| 5(5) \| 5(4)	Add to pinlist
	LED POWER SUPPLY MULTI-POWER DIM5	110-240V	II	DALI	IP20	round	72	4(3) \| 4(2) \| 3(1)	Add to pinlist
	LED POWER SUPPLY MULTI-POWER HV DIM9	110-240V	II	1-10V or DALI or push button	IP20	round	84	2->9(9) \| 9(6) \| 6(4)	Add to pinlist
