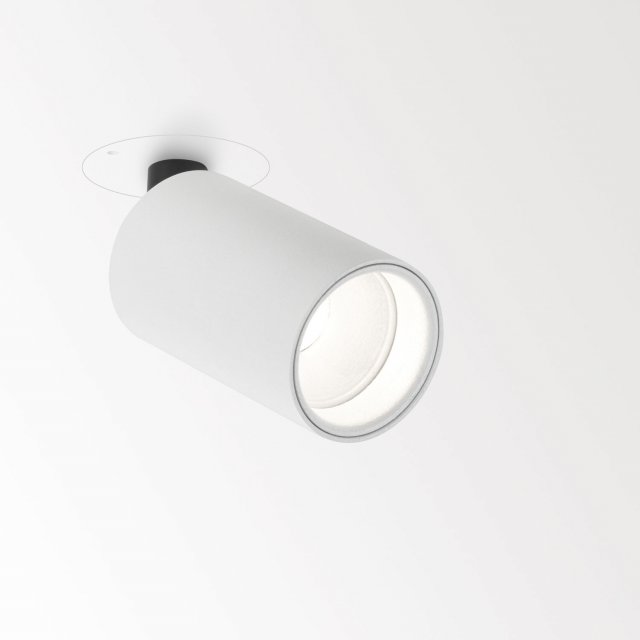

MIDISPY TRIMLESS 93040 B
Black - 414 221 933 B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 130 |
| IP | IP20 |
| Weight (kg) | 0.2 |

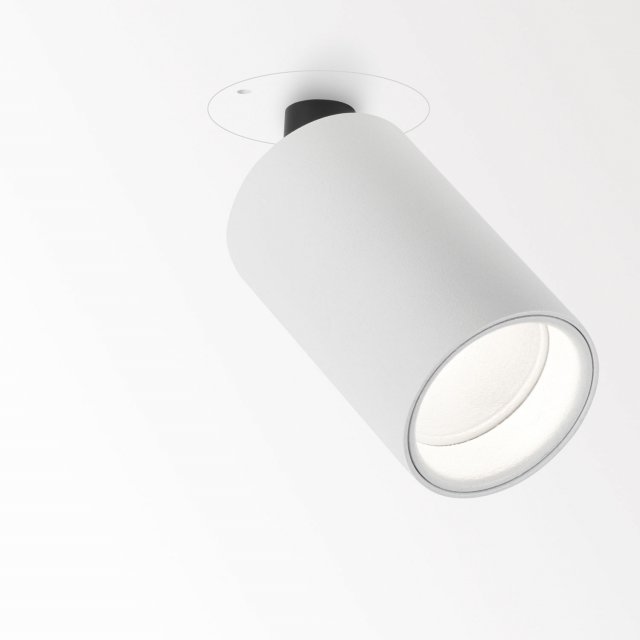

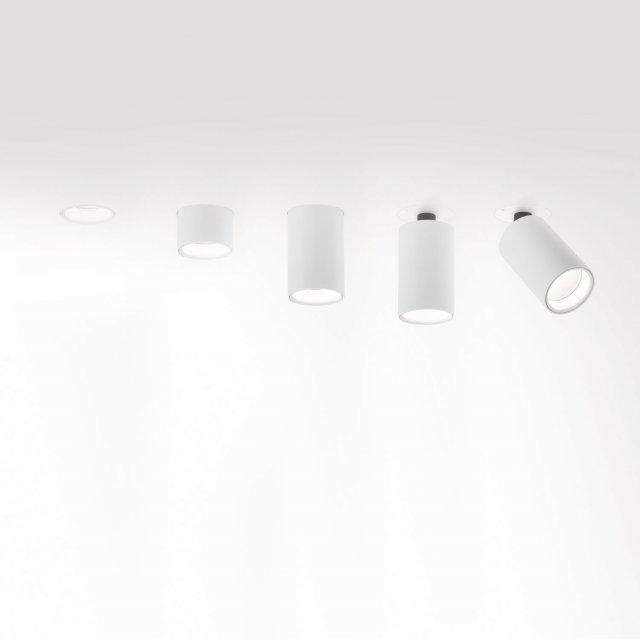

| Adjustability | 0° to 90° swiveling, 355° rotatable |
| Information | REFLECTOR WFL-40°
EXCL.LED POWER SUPPLY 350mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
Lightsource
| Light source | LED |
| LED information | LED array 6,4W / CRI>90 / 3000K / 587lm |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LED technics (light source) | 587lm // 6,4W // 92lm/W |
| LED technics (luminaire) | 488lm // 7,4W // 66lm/W |
Additional
| Requirements | MIDISPY TUBE
MOUNTING KIT MIDISPY TRIMLESS
LED POWER SUPPLY 350mA-DC DIM |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
