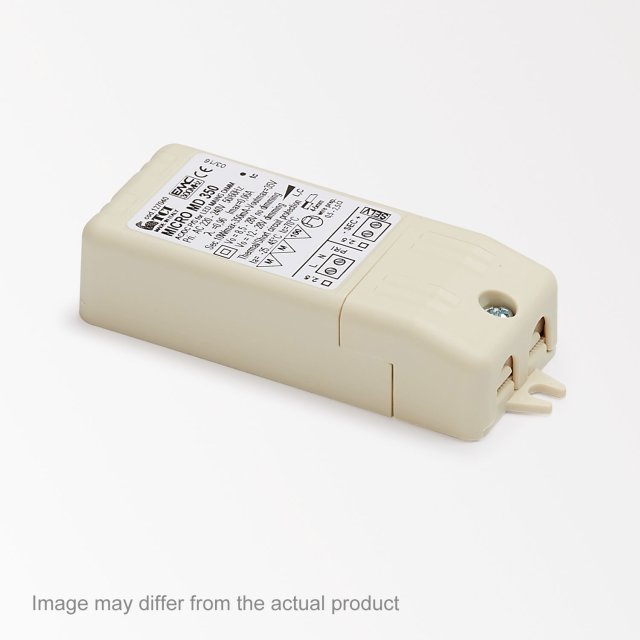

LED POWER SUPPLY 350mA-DC / 10W DIM8

300 90 110

General

Location	Indoor, Outdoor
Cutout shape	round
Cutout size (mm)	42
IP	IP20
Weight (kg)	0.1
Information	dimming range: 10-100% OUTPUT: 350mA / 10W / 12-28V-DC λ > 0,9 Inrush current : 2A - 50µs @ 230V-AC Max. 50 units on circuit breaker B 16A

Electrical

Voltage	220-240V / 50-60Hz
Class	II
Dimming type	mains (phase cut-off)

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Installation manual

Where used

DEEP VARO

DEEP VARO AC 92733 DIM8 B

Product name	Reference number
DEEP VARO 92736 S1	423 021 811 922
DEEP VARO 93036 S1	423 021 811 932
DEEP VARO 92736 IP S1	423 022 811 922
DEEP VARO 93036 IP S1	423 022 811 932

DEEP VARO

DEEP VARO

Finish colours

ENTERO RD-L

ENTERO RD-L 92710 B

Award

Product name	Reference number
ENTERO RD-L 92710	28417 9210
ENTERO RD-L 93010	28417 9310

ENTERO RD-L

ENTERO RD-L

ENTERO RD-L

Finish colours

ENTERO RD-L TRIMLESS

ENTERO RD-L TRIMLESS 92710 B

Award

Product name	Reference number
ENTERO RD-L TRIMLESS 92710	28434 9210
ENTERO RD-L TRIMLESS 93010	28434 9310

ENTERO RD-L TRIMLESS

ENTERO RD-L TRIMLESS

ENTERO RD-L TRIMLESS

Finish colours

ENTERO RD-L X

ENTERO RD-L X 92710 B

Award

Product name	Reference number
ENTERO RD-L X 92710	28446 9210
ENTERO RD-L X 93010	28446 9310

ENTERO RD-L X

ENTERO RD-L X

ENTERO RD-L X

ENTERO RD-L X

Finish colours

ENTERO SQ-L

ENTERO SQ-L 92710 B

Award

Product name	Reference number
ENTERO SQ-L 92710	28517 9210
ENTERO SQ-L 93010	28517 9310

ENTERO SQ-L

ENTERO SQ-L

ENTERO SQ-L

Finish colours
