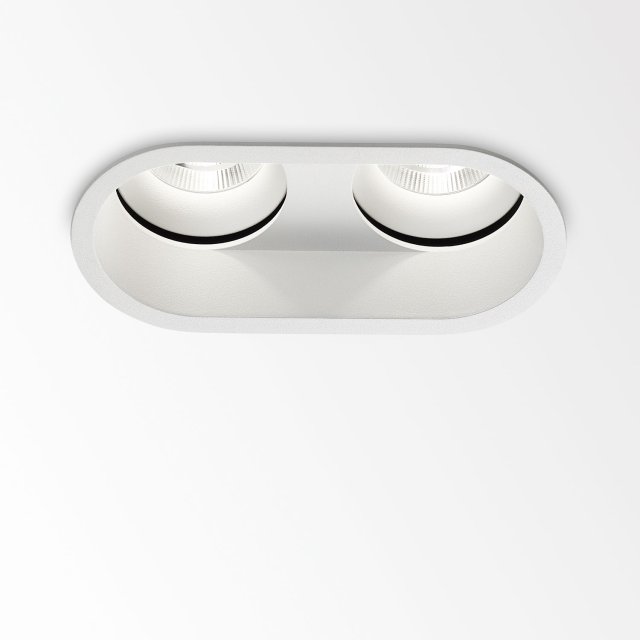

DIRO DUO ST OK LED 92733 S1 W
White - 202 292 812 922 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 153 x 75 |
| Min. recessed depth (mm) | 110 |
| Thickness of mounting surface (mm) | max.22 |
| IP | IP23/20 |
| Weight (kg) | 0.7 |
| Adjustability | 0° to 20° swiveling, 350° rotatable |
| Information | 2 x REFLECTOR FL-33°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
Lightsource
| Light source | LED |
| LED information | 2 x (LED array 7,1-10,4W / CRI>90 (R9: 60) / 2700K / 779-1083lm) |
| TM-30 Values | Rf: 89 / Rg: 100 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 2166lm // 20,8W // 105lm/W |
| LED technics (luminaire) | 1438lm // 24W // 60lm/W |
Additional
| Requirements | LED POWER SUPPLY 350 / 500mA-DC DIM |
| Options | PLASTERKIT 104 |
Technical data was measured in optimum conditions.
