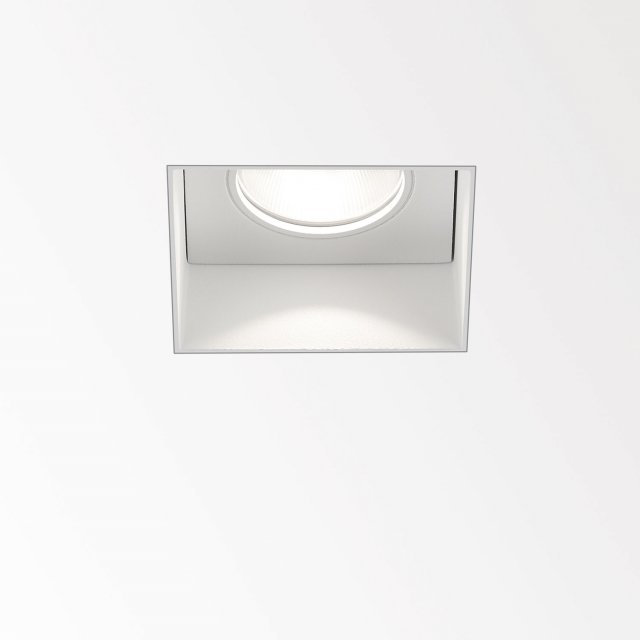

CARREE TRIMLESS LED IP 92733 S1 W
White - 202 511 811 922 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | KIT |
| Min. recessed depth (mm) | 75 |
| Thickness of mounting surface (mm) | 9 or 12 |
| IP | IP44 |
| Weight (kg) | 0.3 |
| Adjustability | non adjustable |
| Information | REFLECTOR FL-33°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 5,8-8,6W / CRI>90 (R9: 60) / 2700K / 753-1041lm |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1041lm // 8,6W // 121lm/W |
| LED technics (luminaire) | 812lm // 10W // 82lm/W |
Additional
| Requirements | MOUNTING KIT 75 TRIMLESS
MOUNTING KIT 75 TRIMLESS O.F.A.
LED POWER SUPPLY 350 / 500mA-DC DIM (Remote) |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
Finish your specifications
Use the information listed below to complete your product
requirement
Mounting kits
| Product name | Cutout shape | Cutout size | Thickness of mounting surface | ||
|---|---|---|---|---|---|
 | MOUNTING KIT 75 TRIMLESS | round | 121 | 9 or 12 | Add to pinlist |
 | MOUNTING KIT 75 TRIMLESS O.F.A. | round | 182 | - | Add to pinlist |
