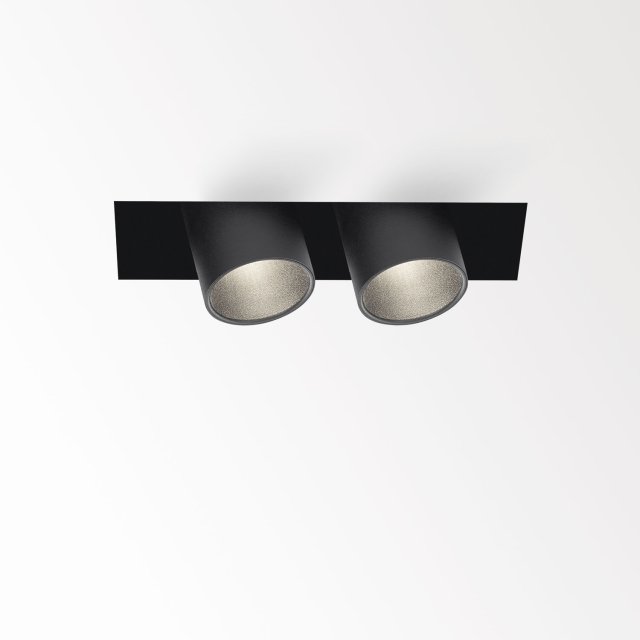

SPLITBOX 2 B + 2 x SPLITBOX SPY 93033 B
SPLITBOX WITH 2 SPY
Black + Black - 417 00 02 B + 2 x 417 371 811 932 B
Beam angle
CRI
CCT
General
| Location | Indoor |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 275 x 150 |
| Min. recessed depth (mm) | 180 |
| Thickness of mounting surface (mm) | max.12 |
| IP | IP20 |
| Weight (kg) | 4.2 |
| Information | ADJUSTABLE
2 x REFLECTOR FL-33°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
Lightsource
| Light source | LED |
| LED information | 2 x (LED array 7,1-10,4W / CRI>90 (R9: 52) / 3000K / 812-1128lm) |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 2256lm // 20,8W // 109lm/W |
| LED technics (luminaire) | 1159lm // 23,9W // 48lm/W |
Additional
| Remarks | Parts to be ordered separately |
| Requirements | SPY TUBE
LED POWER SUPPLY 350 / 500mA-DC DIM |
| Accessories | HONEYCOMB 50
LINEAR SPREAD LENS 50
SPREAD LENS 50
SOFTENING LENS 50
GLASS SBL 50 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
