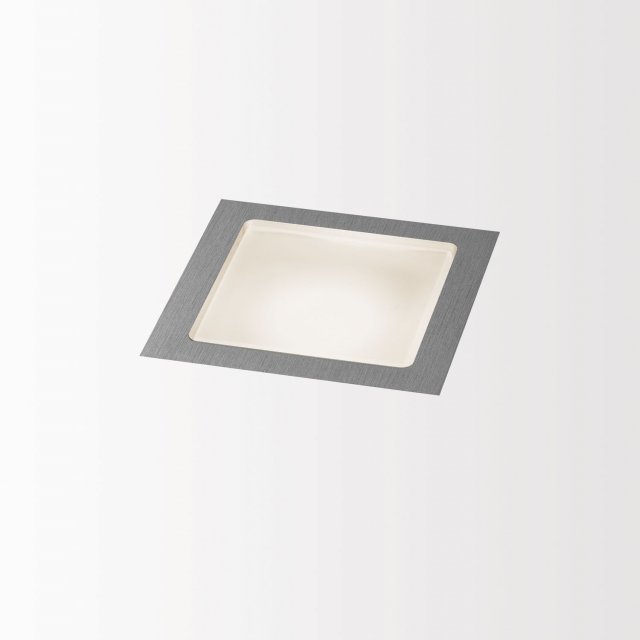

LEDS GO IN FORTE WW ANO
Alu Anodized - 302 10 32 ANO
CRI
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor, Wall |
| Installation | Recessed |
| Cutout shape | square |
| Cutout size (mm) | 38 x 38 |
| Min. recessed depth (mm) | 45 |
| IP | IP67 |
| IK | IK03 |
| Weight (kg) | 0.1 |
| Adjustability | non adjustable |
| Information | EXCL.LED POWER SUPPLY 350mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
Lightsource
| Light source | LED |
| LED information | LED array 1W / CRI>80 (R9: 6) / 3000K / 132lm |
| TM-30 Values | rf: 86 / Rg: 95 |
| SDCM | SDCM3 |
| Riskgroup | RG2 |
| LM80 | L90B10 > 150000 |
| LED technics (light source) | 132lm // 1W // 132lm/W |
| LED technics (luminaire) | 39lm // 1,2W // 34lm/W |
Additional
| Requirements | LED POWER SUPPLY 350mA-DC DIM |
| Options | CONCRETE BOX 151
CONCRETE BOX TR 152 |
Technical data was measured in optimum conditions.
