New

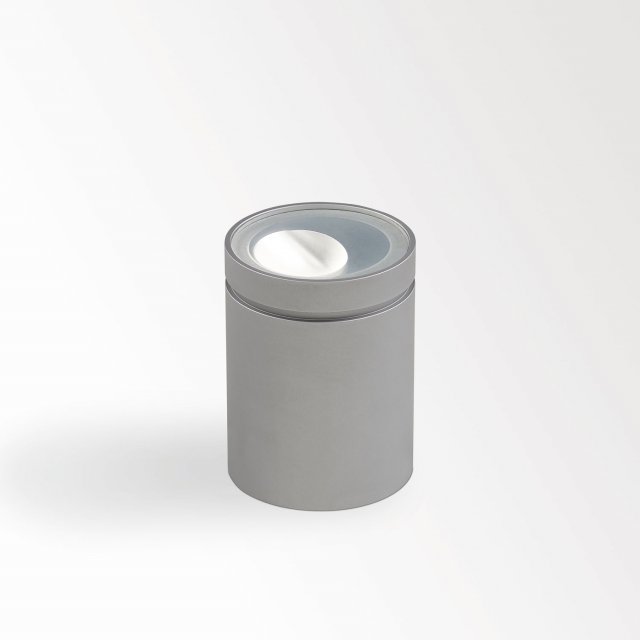

LOGIC 60 R WALLWASH 930 ANO
Alu Anodized - 13978 9300 ANO
CRI
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 61 |
| Max. recessed depth (mm) | 100 |
| IP | IP67 |
| IK | IK08 |
| Weight (kg) | 0.5 |
| Adjustability | non adjustable |
| Information | INCL.CABLE H05 RN-F 2 x 1mm² 0,5m
EXCL.LED POWER SUPPLY 24V-DC
IEC 60598-2-13 : max.150kg 25N/cm²
ESG 5mm |
Electrical
| Voltage | 24V-DC |
| Class | III |
| Dimming type | non-dimmable |
| Energy class | F |
Lightsource
| Light source | LED |
| LED information | LED 4W / CRI>90 / 3000K / 372lm |
| LED technics (light source) | 372lm // 4W // 93lm/W |
| LED technics (luminaire) | 159lm // 5W // 35lm/W |
Additional
| Requirements | LED POWER SUPPLY 24V-DC |
| Options | LOGIC 60 BOX R
CBOX
IP68 CONNECTION KIT
IP68 CONNECTOR 3P |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 24V-DC / 24W | 220-240V | II | non-dimmable | IP20 | round | 55 | 5 | Add to pinlist |
 | LED POWER SUPPLY 24V-DC / 150W | 100-240V | I | non-dimmable | IP67 | round | 75 | 33 | Add to pinlist |
