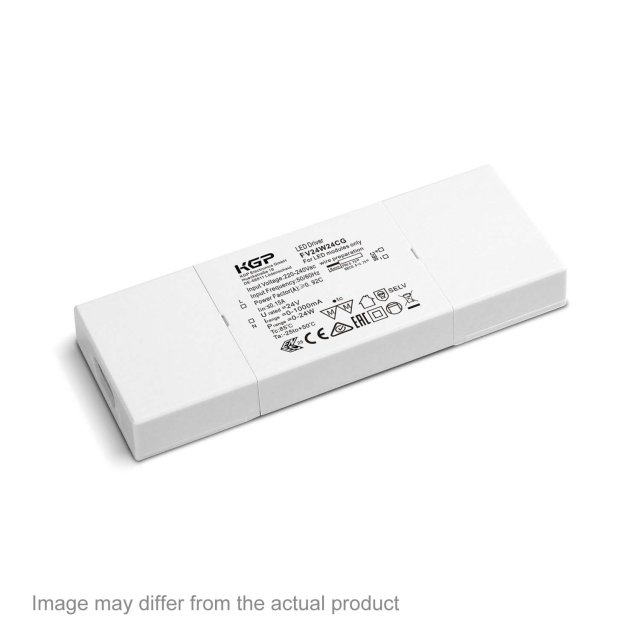

LED POWER SUPPLY 24V-DC / 24W

21012 0160

General

Location	Indoor
Cutout shape	round
Cutout size (mm)	55
IP	IP20
Weight (kg)	0.1
Information	OUTPUT: 24V-DC / 24W λ > 0,95 Inrush current : 30A - 280µs @ 230V-AC Max. 50 units on circuit breaker B 16A

Electrical

Voltage	220-240V / 50-60Hz
Class	II
Dimming type	non-dimmable

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Installation manual

Where used

DUMMY

LEDFLEX IN SOFT DIM 1830 5m

Product name	CCT	CRI	Beam angle^°
LEDFLEX IN SOFT DIM 1830	3000K-1800K	90	-
LEDFLEX IN 927	2700K	90	-
LEDFLEX IN 930	3000K	90	-
LEDFLEX IN 940	4000K	90	-
LEDFLEX OUT 927	2700K	90	-

INLET TRIMLESS

INLET TRIMLESS H7 927 B-W

Product name	Length^mm	CRI	CCT	IP
INLET TRIMLESS H7 927	42	90	2700K	IP20
INLET TRIMLESS H7 930	42	90	3000K	IP20
INLET TRIMLESS L20 927	42	90	2700K	IP20
INLET TRIMLESS L20 930	42	90	3000K	IP20
INLET TRIMLESS H20 927	42	90	2700K	IP20

INLET TRIMLESS

INLET TRIMLESS

INLET TRIMLESS

Finish colours

KIX M PIN

KIX M PIN 24V 93033 A

Product name	CRI	CCT	Beam angle^°	Voltage	Dimming type	IP	IK	Adjustability
KIX M PIN 24V 92733	90	2700K	30	24V-DC	non-dimmable	IP55	IK03	0-90°
KIX M PIN 24V 93033	90	3000K	30	24V-DC	non-dimmable	IP55	IK03	0-90°

KIX M PIN

KIX M PIN

KIX M PIN

Finish colours

KIX PIN

KIX II PIN 24V 93011 A

Product name	CRI	CCT	Beam angle^°	Voltage	Dimming type	IP	IK	Adjustability
KIX II PIN 24V 92711	90	2700K	11	24V-DC	non-dimmable	IP65	IK03	180°/360°
KIX II PIN 24V 92730	90	2700K	30	24V-DC	non-dimmable	IP65	IK03	180°/360°
KIX II PIN 24V 92755	90	2700K	55	24V-DC	non-dimmable	IP65	IK03	180°/360°
KIX II PIN 24V 93011	90	3000K	11	24V-DC	non-dimmable	IP65	IK03	180°/360°
KIX II PIN 24V 93030	90	3000K	30	24V-DC	non-dimmable	IP65	IK03	180°/360°

KIX PIN

KIX PIN

KIX PIN

Finish colours

KIX S

KIX S 24V N

Product name	CRI	CCT	Beam angle^°	Voltage	Dimming type	IP	IK	Adjustability
KIX S 24V 92710	90	2700K	10	24V-DC	non-dimmable	IP65	IK03	180°/360°
KIX S 24V 93010	90	3000K	10	24V-DC	non-dimmable	IP65	IK03	180°/360°

KIX S

Finish colours
