Specifications | Downloads | Finish your specifications
Made to measure

Use our profile builder for made to measure products

made_to_measure_link

General

Location
Interior
Fixation
Ceiling
Installation
Suspended
Weight (kg)
1.4
Information
MAX.L / PROFILE : 6m INCL.PC SBL DOWN HE

Electrical

Class
III

Lightsource

Light source
LED

Additional

Options
FTL35 F HE DOWN-UP - PC SBL UP PROFILE
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Profile

Reference number
392 02 00 00 BFTL35 F HE DOWN-UP - PROFILE B
Installation manual
Spec sheet
392 02 00 00 WFTL35 F HE DOWN-UP - PROFILE W
Installation manual
Spec sheet

End caps

Reference numberUnit
392 02 03 01 BFTL35 F HE DOWN-UP - END CAP SET BSet of 2
392 02 03 01 WFTL35 F HE DOWN-UP - END CAP SET WSet of 2

Corners

Reference number
392 02 06 01FTL35 F HE DOWN-UP - CORNER 180°

Fixation components

Reference number
392 02 09 01FTL35 F HE DOWN-UP - CABLE SUSPENSION SINGLE 1,6m

Current supply

Reference number
203 99 55 ANOCABLE BASE R ANO
Installation manual
203 99 55 BCABLE BASE R B
Installation manual
203 99 55 WCABLE BASE R W
Installation manual
203 99 56 ANOCABLE BASE S ANO
203 99 56 BCABLE BASE S B
203 99 56 WCABLE BASE S W
392 02 97 51FTL35 F HE DOWN-UP - CURRENT SUPPLY 2 x 0,75 mm² 1,6m

LED power supplies

Reference numberVoltageClassDimming typeIPCutout shapeCutout size
300 24 060 BFTL - POWERBOX 24V-DC / 60W B220-240VInon-dimmableIP20--
300 24 060 ED1 BFTL - POWERBOX 24V-DC / 60W DIM1 B220-240VI1-10VIP20--
300 24 060 ED1 WFTL - POWERBOX 24V-DC / 60W DIM1 W220-240VI1-10VIP20--
300 24 060 WFTL - POWERBOX 24V-DC / 60W W220-240VInon-dimmableIP20--
300 24 150 ED5 BFTL - POWERBOX 24V-DC / 150W DIM5 B220-240VIDALIIP20--
300 24 150 ED5 WFTL - POWERBOX 24V-DC / 150W DIM5 W220-240VIDALIIP20--

LED flex and parts

Reference numberCRICCTVoltageIPEnergy class
21031 0020LEDFLEX IN SOFT DIM 1830903000K-1800K24V-DCIP20G
21031 0030LEDFLEX IN 927902700K24V-DCIP20F
21031 0040LEDFLEX IN 930903000K24V-DCIP20F
21031 0060LEDFLEX IN 940904000K24V-DCIP20F
21031 0110LEDFLEX IN MP 927902700K24V-DCIP20F
21031 0120LEDFLEX IN MP 930903000K24V-DCIP20F
21031 0140LEDFLEX IN MP 940904000K24V-DCIP20F
21031 0190LEDFLEX IN FP 927902700K24V-DCIP20F
21031 0200LEDFLEX IN FP 930903000K24V-DCIP20E
21031 0220LEDFLEX IN FP 940904000K24V-DCIP20E
21031 0270LEDFLEX IN HP 927902700K24V-DCIP20F
21031 0280LEDFLEX IN HP 930903000K24V-DCIP20E
Spec sheet
21031 0300LEDFLEX IN HP 940904000K24V-DCIP20E
21031 0390LEDFLEX IN TW 2760902700K-6500K24V-DCIP20F
21031 0400LEDFLEX IN RGB--24V-DCIP20G
21031 0420LEDFLEX IN RGB/TW902700K-6500K24V-DCIP20G

Optics

Reference number
392 02 02 05 SBLFTL35 F HE DOWN-UP - PC SBL UP PROFILE

Finish your specifications

Use the information listed below to complete your product

optional

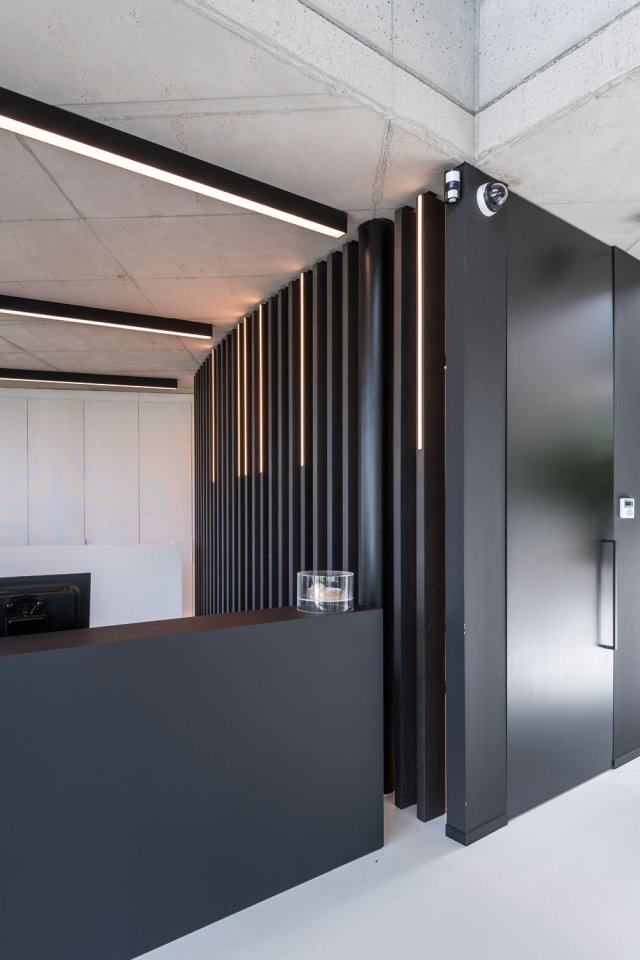

Alheembouw (BE)

Alheembouw establishes itself as a sustainable construction partner and project developer in the private, industrial and public sector. With its new office building along the Roeselarestraat, the West Flemish construction company wanted the new HQ building to reflect its business card of technical expertise in complex constructions. The transparent state-of-the-art building with lots of glass, concrete and aluminium was embedded in the existing rural residential area in a cylindrical and open way by Alheembouw and architects B2Ai. This round shaped office building has no front- or backside. The compact volume has 3 levels and a double skin. The inner-skin is transparent, the outer-shell exists of copper – bronze colored vertical slats, functioning both as sun protection and to highlight technical expertise. Inside, the central patios give maximum visibility and light. Everyone has visual contact and yet can work in peace and quiet. The central open patio increases the connection with the outside, maximizes the transparency in the building and optimizes daylight incidence.
