New

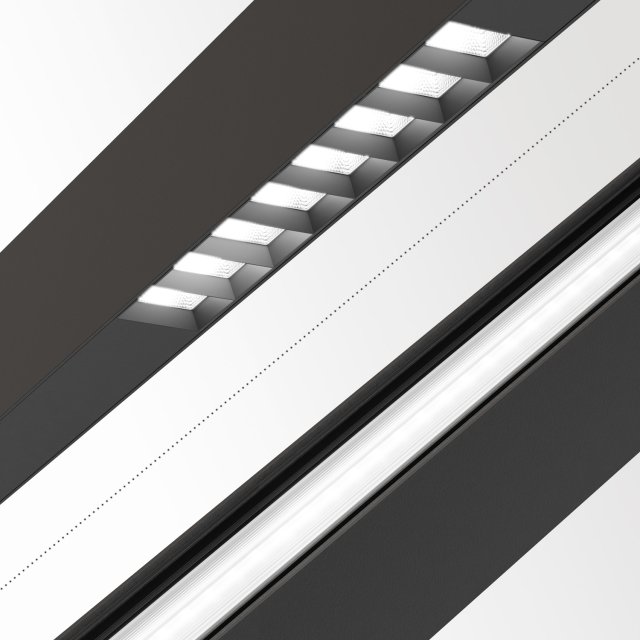

OML50 - INFORM DU TW 1640mm 8+8LED 95063 DIM5 B
Black - 31449 9035 B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K-5000K |
| IP | IP20 |
| Weight (kg) | 2.1 |
| Information | INCL.DIMMABLE LED POWER SUPPLY
(DALI DT8)
CABLING 1 CIRCUIT |
Electrical
| Voltage | 220-240V / 0|50-60Hz |
| Class | I |
| Dimming type | DALI |
| Energy class | E |
Lightsource
| Light source | LED |
| LED information | DOWN @ 2700K: LED cluster 14,9W / CRI>90 (R9: 50) / 2700K-5000K / 1952lm
UP @ 2700K: LED cluster 18,6W / CRI>90 (R9: 50) / 2700K-5000K / 2440lm
OR
DOWN @ 5000K: LED cluster 13,5W / CRI>90 (R9: 50) / 2700K-5000K / 2336lm
UP @ 5000K: LED cluster 16,9W / CRI>90 (R9: 50) / 2700K-5000K / 2920lm |
| SDCM | SDCM3 |
| Riskgroup | RG2 |
| LM80 | L80 > 60000 |
| LED technics (light source) | DOWN @ 2700K: 1952lm // 14,9W // 131lm/W
UP @ 2700K: 2440lm // 18,6W // 131lm/W
OR
DOWN @ 5000K: 2336lm // 13,5W // 173lm/W
UP @ 5000K: 2920lm // 16,9W // 173lm/W |
| LED technics (luminaire) | DOWN @ 2700K: 1379lm // 17,1W // 80lm/W
UP @ 2700K: 1975lm // 21,4W // 92lm/W
OR
DOWN @ 5000K: 1650lm // 15,5W // 106lm/W
UP @ 5000K: 2363lm // 19,4W // 122lm/W |
Additional
| Options | WIRELESS CONTROL DIM5 |
Technical data was measured in optimum conditions.
