General

Location
Indoor
CCT
3000K
Fixation
Ceiling
Installation
Surface mounted, Suspended
IP
IP20
Weight (kg)
9
Adjustability
non adjustable
Information
INCL.PC SBL INCL.ADJUSTABLE LED POWER SUPPLY - 2 settings: 1- 1400mA 2- 930mA

Electrical

Voltage
220-240V / 0|50-60Hz
Class
I
Dimming type
non-dimmable
Energy class
E
Certificates
CB, ENEC, RCM

Lightsource

Light source
LED
LED information
@ 1400mA: LED cluster 58,5W / CRI>90 (R9: 68) / 3000K / 7776lm OR @ 930mA: LED cluster 37,4W / CRI>90 (R9: 68) / 3000K / 5360lm
TM-30 Values
Rf: 89 / Rg: 97 OR @ 930mA: rf: 89 / Rg: 97
SDCM
SDCM3
Riskgroup
RG0
LM80
L70 > 60000
LED technics (light source)
@ 1400mA: 7776lm // 58,5W // 132lm/W OR @ 930mA: 5360lm // 37,4W // 144lm/W
LED technics (luminaire)
@ 1400mA: 5928lm // 67W // 88lm/W OR @ 930mA: 4086lm // 43W // 95lm/W

Additional

Options

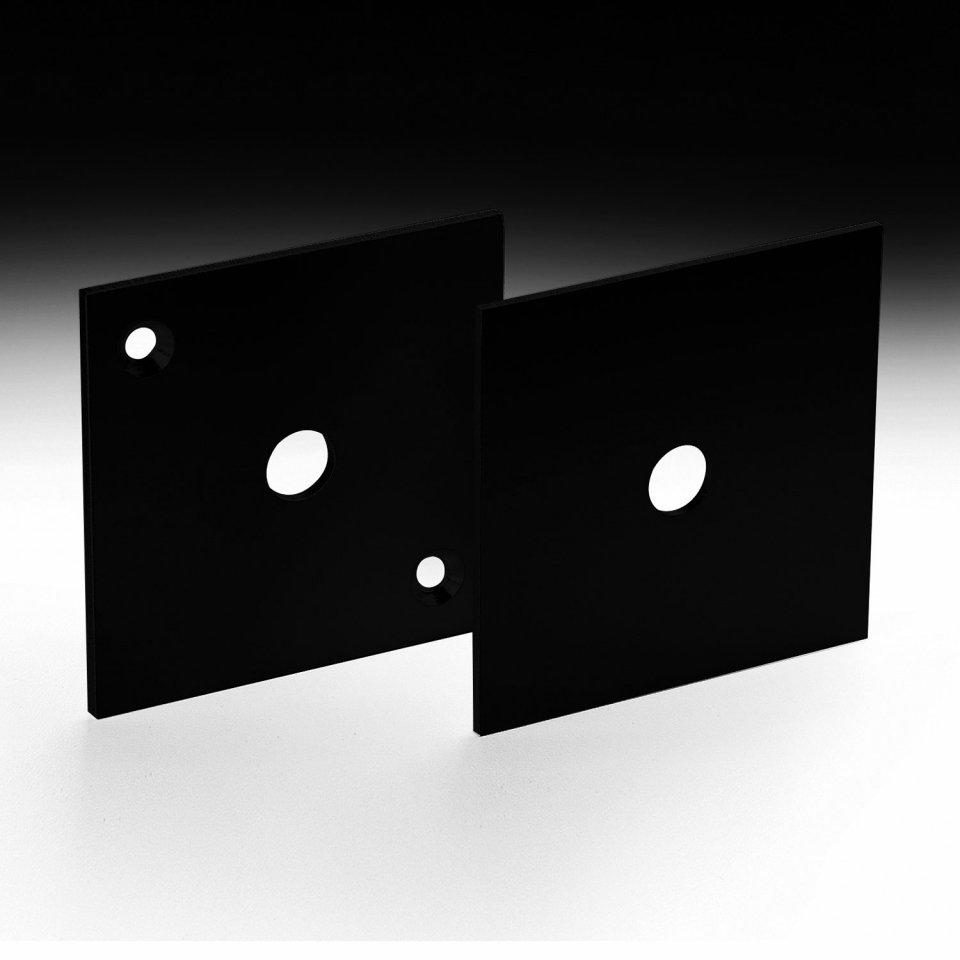

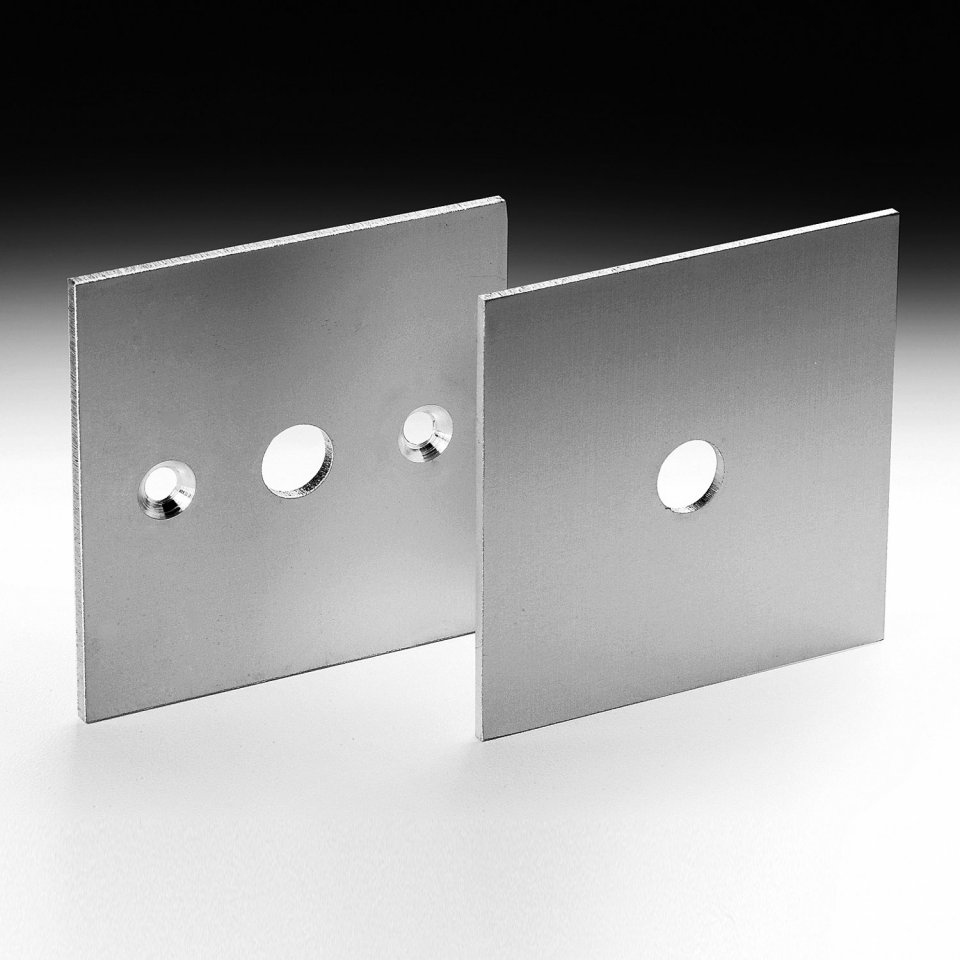

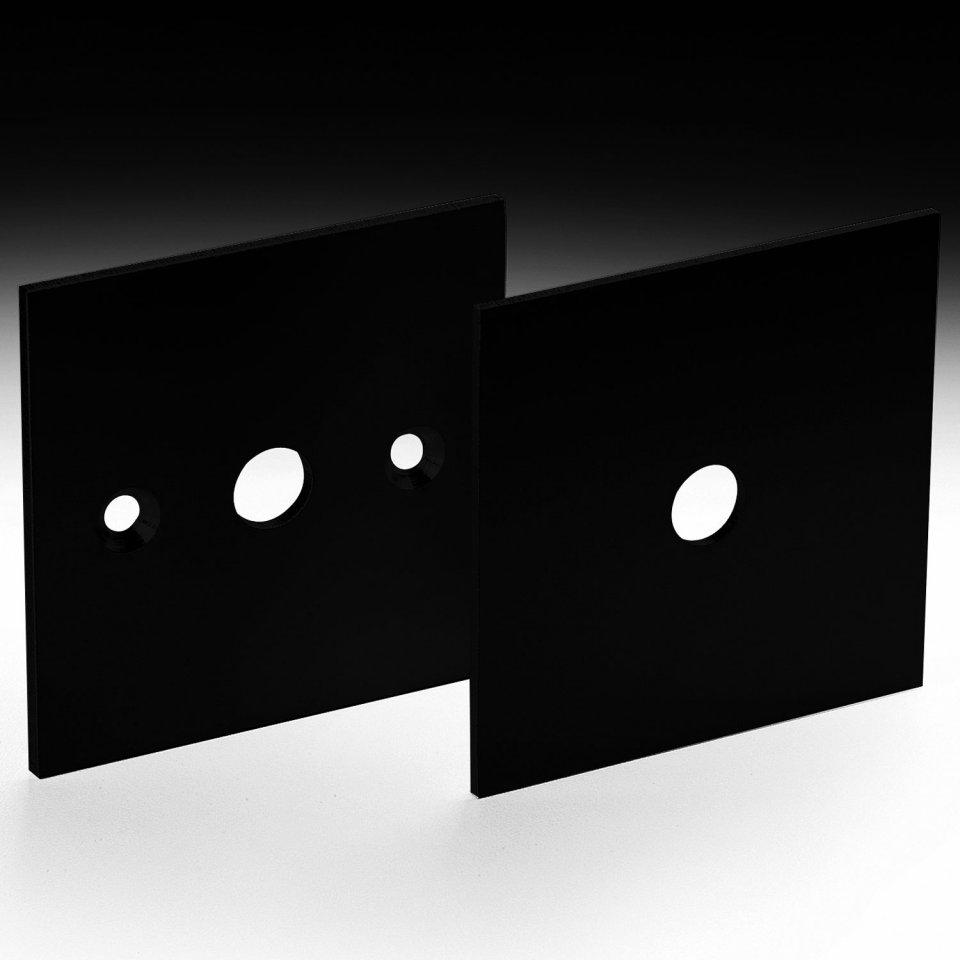

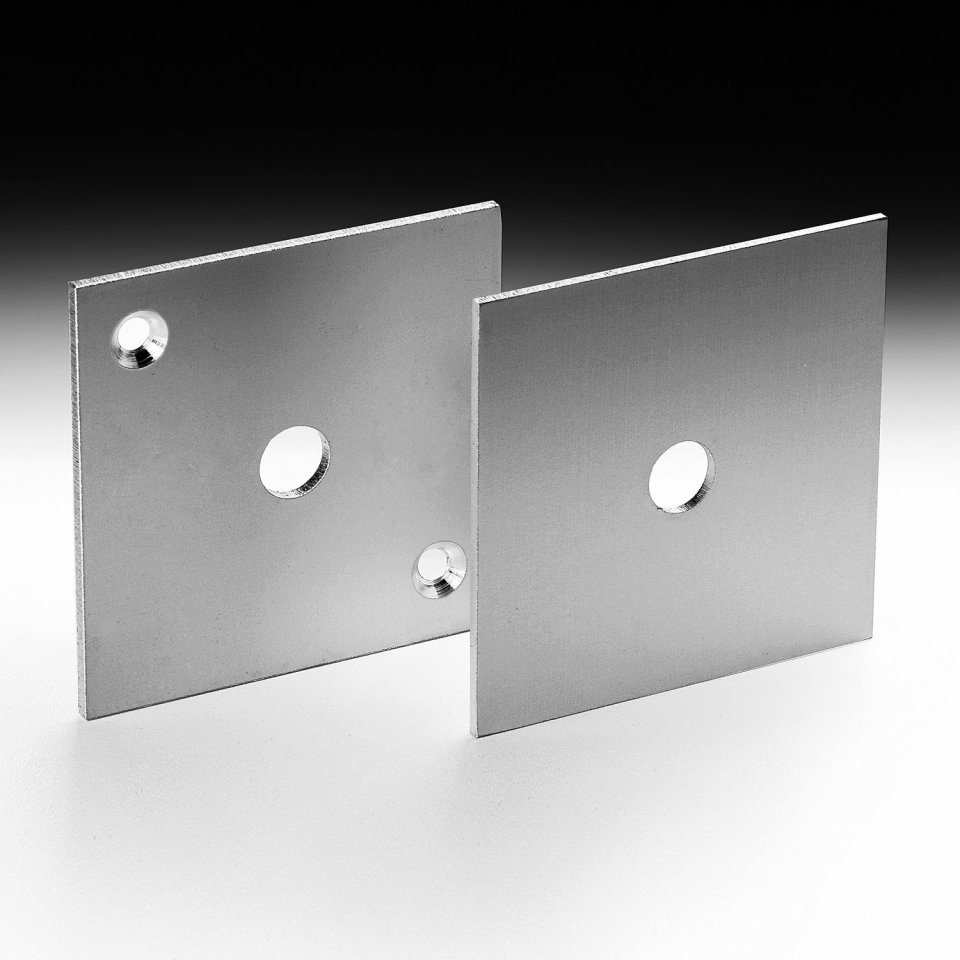

SUSPENSION SET 25 3m CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CENTRAL ROD SUSPENSION SUPERNOVA FLAT 1m CENTRAL SUSPENSION SUPERNOVA FLAT
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:
