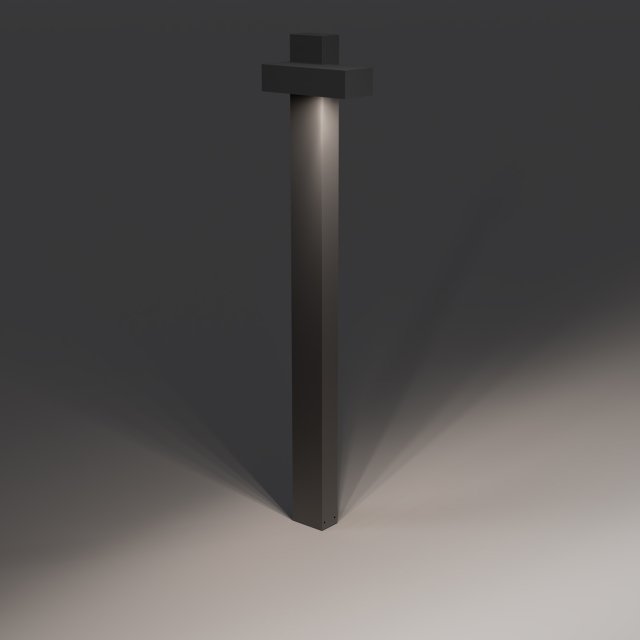

POLESANO BOLLARD 100 930 DIM5 N
Anthracite - 15933 9305 N
CRI
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor |
| Installation | Surface mounted |
| IP | IP67 |
| IK | IK10 |
| Weight (kg) | 4.5 |
| Adjustability | non adjustable |
| Information | INCL.LED POWER SUPPLY
INCL.IP68 JUNCTION BOX 4P for through wiring |
Electrical
| Voltage | 100-240V / 50-60Hz |
| Class | II |
| Dimming type | DALI |
| Energy class | E |
| Certificates | CB, DARKSKY, ENEC |
Lightsource
| Light source | LED |
| LED information | LED cluster 6W / CRI>90 (R9: 60) / 3000K / 788lm |
| TM-30 Values | Rf: 92 / Rg: 99 |
| SDCM | SDCM3 |
| Riskgroup | RG2 |
| LM80 | L80 > 150000 |
| LED technics (light source) | 788lm // 6W // 135lm/W |
| LED technics (luminaire) | 433lm // 6,9W // 63lm/W |
Additional
| Options | PLATE 13
DALI MIDNIGHT CONTROL |
Technical data was measured in optimum conditions.
