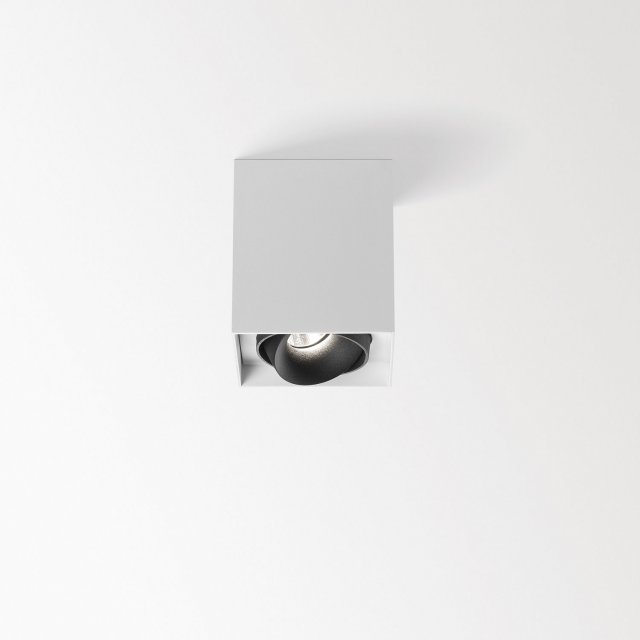

MINIGRID 67 ON 145 92718 DIM8 W-B
MINIGRID 67 SURFACE MOUNTED SINGLE HEAD
White-Black - 100005 9218 W-B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 1 |
| Adjustability | 0° to 30° swiveling, 360° rotatable |
| Information | REFLECTOR SP-18°
INCL.DIMMABLE LED POWER SUPPLY 450mA-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | mains (phase cut-off) |
| Energy class | F |
Lightsource
| Light source | LED |
| LED information | LED array 7,7W / CRI>90 (R9: 60) / 2700K / 885lm |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 885lm // 7,7W // 115lm/W |
| LED technics (luminaire) | 601lm // 8,9W // 68lm/W |
Technical data was measured in optimum conditions.
