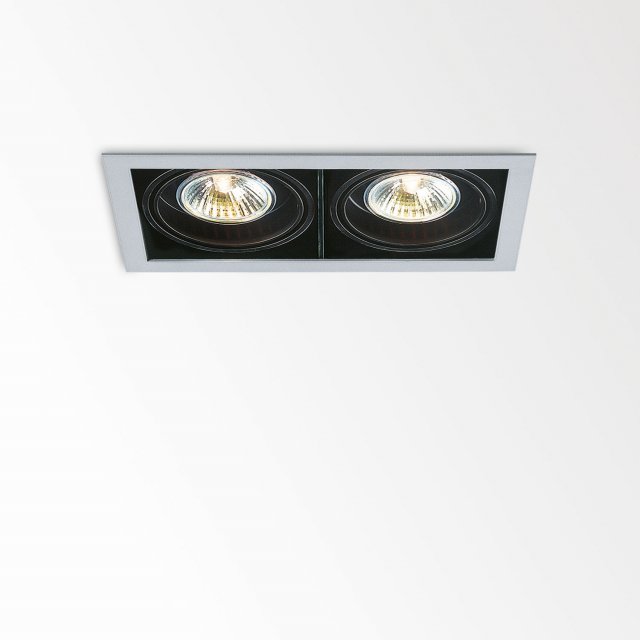

MINIGRID IN 2 50 A-B
Alu Grey-Black - 202 72 55 02 A-B
General
| Location | Indoor |
| Fixation | Ceiling, Wall |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 214 x 111 |
| Min. recessed depth (mm) | 140 |
| Thickness of mounting surface (mm) | max.20 |
| IP | IP20 |
| Weight (kg) | 0.9 |
| Adjustability | 0° to 30° swiveling |
Electrical
| Electrical | GU5.3 / 12V / EXCL.TRANSFO
2 x QR-C51 max.50W
2 x QR-CBC51 max.35W |
| Class | III |
Lightsource
| Light source | Halogen |
| Min. distance to lightsource (m) | 0,5 |
Additional
| Remarks | WHITE finish : max. 35W |
| Options | PLASTERKIT 127
TRANSFO |
| Accessories | CONE 50
CLIP 50 + DICROIC FILTER 50 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
Finish your specifications
Use the information listed below to complete your product
optional
Plasterkits
| Product name | Cutout shape | Cutout size | ||
|---|---|---|---|---|
 | PLASTERKIT 127 | rectangle | 120 x 225 | Add to pinlist |
