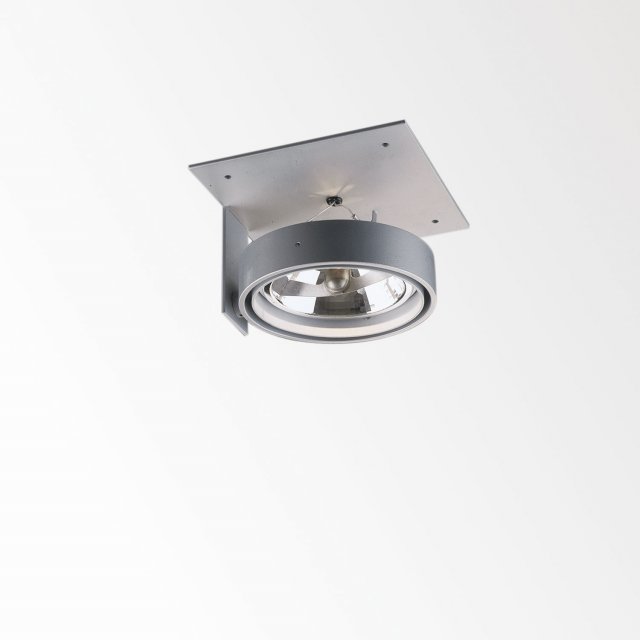

GRID IN ZB 1 QR A
Alu Grey - 202 60 00 01 A
General
| Location | Indoor |
| Fixation | Ceiling, Wall |
| Installation | Recessed |
| Cutout shape | square |
| Cutout size (mm) | 152 x 152 |
| Min. recessed depth (mm) | 114 |
| IP | IP20 |
| Weight (kg) | 0.8 |
| Adjustability | 0° to 30° swiveling |
Electrical
| Voltage | 12V |
| Electrical | G53 / 12V / EXCL.TRANSFO
1 x QR-LP111 max.100W |
| Class | III |
Lightsource
| Light source | Halogen |
| Min. distance to lightsource (m) | 1,0 |
Additional
| Options | GRID IN ZB 1 BOX L
TRANSFO |
| Accessories | CLIP 111 + LENS 111 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
