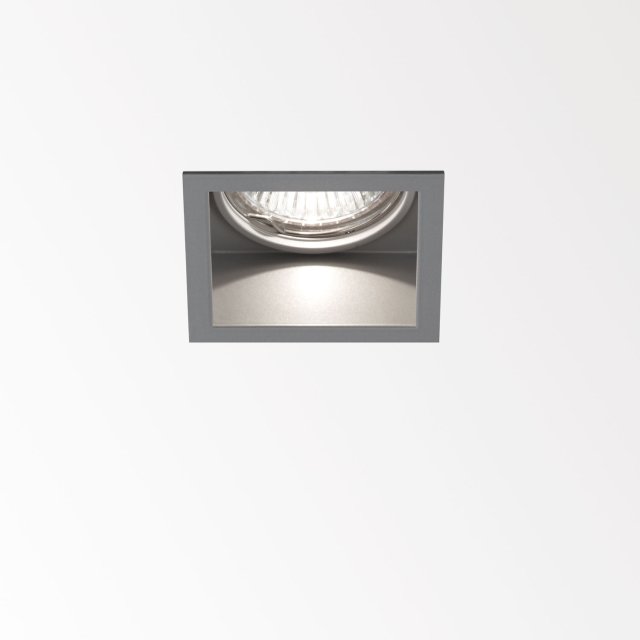

CARREE ST S1 A
Alu Grey - 202 50 50 A
General
| Location | Indoor |
| Fixation | Ceiling, Wall |
| Installation | Recessed |
| Cutout shape | square |
| Cutout size (mm) | 64 x 64 |
| Min. recessed depth (mm) | 90 |
| Thickness of mounting surface (mm) | max.35 |
| IP | IP20 |
| Weight (kg) | 0.2 |
| Adjustability | non adjustable |
Electrical
| Voltage | 12V |
| Electrical | GX5.3 / 12V / EXCL.TRANSFO
1 x QR-C51 max.50W |
| Class | III |
Lightsource
| Light source | Halogen |
| Min. distance to lightsource (m) | 0,5 |
Additional
| Remarks | WHITE finish : max. 35W |
| Options | PLASTERKIT 162
CONCRETE BOX 162
MOUNTING KIT 64
TRANSFO |
| Accessories | ANTI GLARE TUBE
DICROIC FILTER 50 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
-
-
