TRACK 3F DIM ON
| Product name | Reference number |
|---|---|
| TRACK 3F DIM ON 1m | 200 12 410 |
| TRACK 3F DIM ON 2m | 200 12 420 |
| TRACK 3F DIM ON 3m | 200 12 430 |

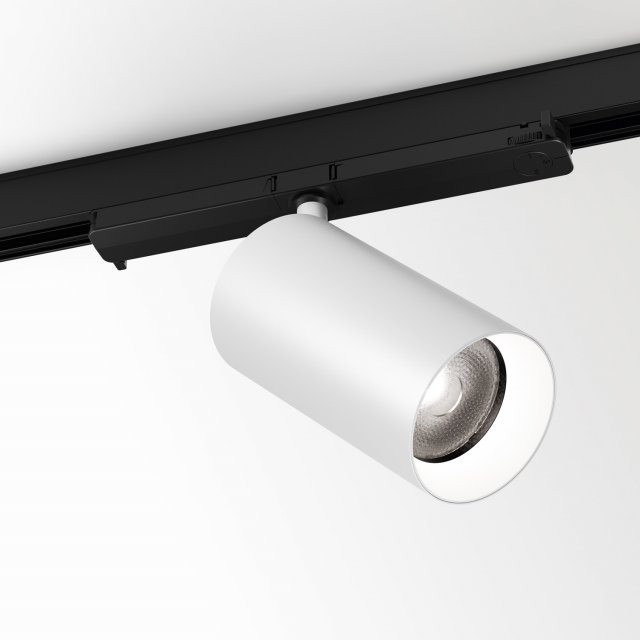

SPYCO 90 94024 ADM DIM5 W
SPYCO 90 TRACK VERSION
White - 19921 9425 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 4000K |
| Fixation | Mains voltage track |
| Installation | Mains voltage track mounted |
| IP | IP20 |
| Weight (kg) | 0.8 |
| Adjustability | 0° to 90° swiveling, 350° rotatable |
| Information | INCL.DIMMABLE LED POWER SUPPLY 800/900mA-DC
Max. 800mA with HONEYCOMB |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | II |
| Dimming type | DALI |
| Energy class | F |
Lightsource
| Light source | LED |
| Min. distance to lightsource (m) | 1 |
| LED information | @ 900mA: LED array 33,2W / CRI>90 (R9: 79) / 4000K / 3666lm
OR
@ 800mA (+HONEYCOMB): LED array 29,1W / CRI>90 (R9: 79) / 4000K / 3326lm |
| TM-30 Values | @ 900mA: rf: 90 / Rg: 99
OR
@ 800mA (+HONEYCOMB): rf: 90 / Rg: 99 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | @ 900mA: 3666lm // 33,2W // 110lm/W
OR
@ 800mA (+HONEYCOMB): 3326lm // 29,1W // 114lm/W |
| LED technics (luminaire) | @ 900mA: 3279lm // 38,2W // 86lm/W
OR
@ 800mA (+HONEYCOMB): 2196lm // 33,5W // 66lm/W |
Additional
| Requirements | TRACK 3F ON |
| Accessories | SPYCO 90 HONEYCOMB |
Technical data was measured in optimum conditions.
