Specifications | Downloads | Finish your specifications

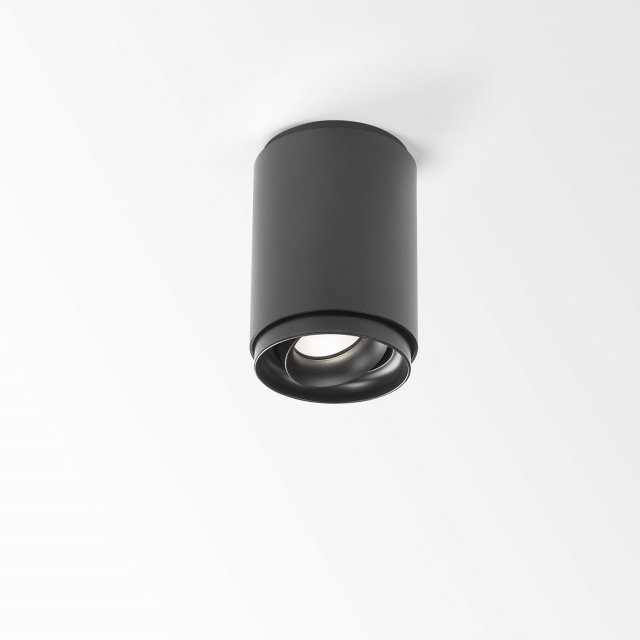

LINK S 1 92733 DIM8 B

LINK S 1 93033 DIM8 B

Black - 13816 9328 B
Beam angle
CRI
CCT
Add to pinlist
Interesting projects

General

Location
Indoor
Fixation
Ceiling
Installation
Surface mounted
IP
IP20
Weight (kg)
0.8
Adjustability
0° to 30° swiveling, 355° rotatable
Information
REFLECTOR FL-33° INCL.DIMMABLE LED POWER SUPPLY 350mA-DC

Electrical

Class
I
Dimming type
mains (phase cut-off)
Energy class
E
Certificates
CB, EAC, ENEC

Lightsource

Light source
LED
LED information
LED array 7,1W / CRI>90 (R9: 52) / 3000K / 812lm
TM-30 Values
Rf: 90 / Rg: 99
SDCM
SDCM2
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
812lm // 7,1W // 115lm/W
LED technics (luminaire)
597lm // 8W // 73lm/W
Technical data was measured in optimum conditions.
