MIC60 - PROFILE ANO

MIC60 - PROFILE ANO

Alu Anodized - 399 03 00 ANO
Made to measure

Use our profile builder for made to measure products

made_to_measure_link
Add to pinlist

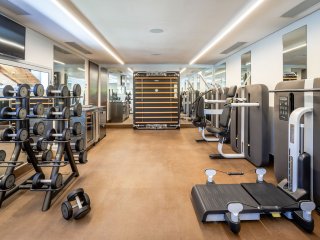

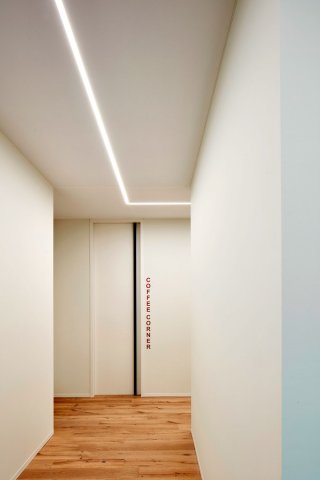

Interesting projects

General

Location
Indoor
Fixation
Ceiling, Wall
Installation
Recessed
Cutout shape
rectangle
Cutout size (mm)
49 x (L + 5)
Min. recessed depth (mm)
120
Thickness of mounting surface (mm)
min.5/max.25
Weight (kg)
1.7
Information
MAX.L / PROFILE : 6m

Electrical

Class
I
Certificates
CB, ENEC, RCM

Lightsource

Light source
LED
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Profile

Reference number
399 03 00 ANOMIC60 - PROFILE ANO
Installation manual
Spec sheet
399 03 00 WMIC60 - PROFILE W
Installation manual
Spec sheet

End caps

Reference numberUnit
399 03 03 01 ANOMIC60 - END CAP ANO1 pc
399 03 03 01 WMIC60 - END CAP W1 pc

Corners

Reference number
399 06 01MIC40/60 - CORNER 180°
399 06 06MIC40/60 - CORNER 90°

Fixation components

Reference number
399 03 14 01MIC60 - INSIDE CLIP

LED linear modules (down)

Reference numberLength moduleCCTLED lmLuminaire lmEnergy classVoltageDimming type
399 610 12 EMIC40/60 - LED ARRAY 1 x 12W DOWN5603000K19011293D220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 610 12 ED1MIC40/60 - LED ARRAY 1 x 12W DOWN DIM15603000K19011293D220-240V / 50-60Hz1-10V
Installation manual
Spec sheet
399 610 12 ED2MIC40/60 - LED ARRAY 1 x 12W DOWN DIM25603000K19011293D220-240V / 50-60HzDALI or push button
Installation manual
Spec sheet
399 610 18 EMIC40/60 - LED ARRAY 1 x 18W DOWN8403000K28511939D220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 610 18 ED1MIC40/60 - LED ARRAY 1 x 18W DOWN DIM18403000K28511939D220-240V / 50-60Hz1-10V
Installation manual
Spec sheet
399 610 18 ED2MIC40/60 - LED ARRAY 1 x 18W DOWN DIM28403000K28511939D220-240V / 50-60HzDALI or push button
Installation manual
Spec sheet
399 610 24 EMIC40/60 - LED ARRAY 1 x 24W DOWN11203000K38022585D220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 610 24 ED1MIC40/60 - LED ARRAY 1 x 24W DOWN DIM111203000K38022585D220-240V / 50-60Hz1-10V
Installation manual
Spec sheet
399 610 24 ED2MIC40/60 - LED ARRAY 1 x 24W DOWN DIM211203000K38022585D220-240V / 50-60HzDALI or push button
Installation manual
Spec sheet
399 610 30 EMIC40/60 - LED ARRAY 1 x 30W DOWN14003000K47523231D220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 610 30 ED1MIC40/60 - LED ARRAY 1 x 30W DOWN DIM114003000K47523231D220-240V / 50-60Hz1-10V
Installation manual
Spec sheet
399 610 30 ED2MIC40/60 - LED ARRAY 1 x 30W DOWN DIM214003000K47523231D220-240V / 50-60HzDALI or push button
Installation manual
Spec sheet
399 610 36 EMIC40/60 - LED ARRAY 1 x 36W DOWN16803000K57023877D220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 610 36 ED2MIC40/60 - LED ARRAY 1 x 36W DOWN DIM216803000K57023877D220-240V / 50-60HzDALI or push button
Installation manual
Spec sheet
399 610 48 EMIC40/60 - LED ARRAY 1 x 48W DOWN22403000K76035170D220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 610 48 ED2MIC40/60 - LED ARRAY 1 x 48W DOWN DIM222403000K76035170D220-240V / 50-60HzDALI or push button
Installation manual
Spec sheet
399 613 06 EMIC40/60 - LED ARRAY 1 x 06W DOWN HE5603000K984679C220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 613 09 EMIC40/60 - LED ARRAY 1 x 09W DOWN HE8403000K14761018C220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 613 12 EMIC40/60 - LED ARRAY 1 x 12W DOWN HE11203000K19681358C220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 613 15 EMIC40/60 - LED ARRAY 1 x 15W DOWN HE14003000K24601697C220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 613 18 EMIC40/60 - LED ARRAY 1 x 18W DOWN HE16803000K29522037C220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet
399 613 24 EMIC40/60 - LED ARRAY 1 x 24W DOWN HE22403000K39362716C220-240V / 50-60Hznon-dimmable
Installation manual
Spec sheet

Optics

Reference number
399 01 02 05 SBL HEMIC40/60 - PC SBL PROFILE HE
