New

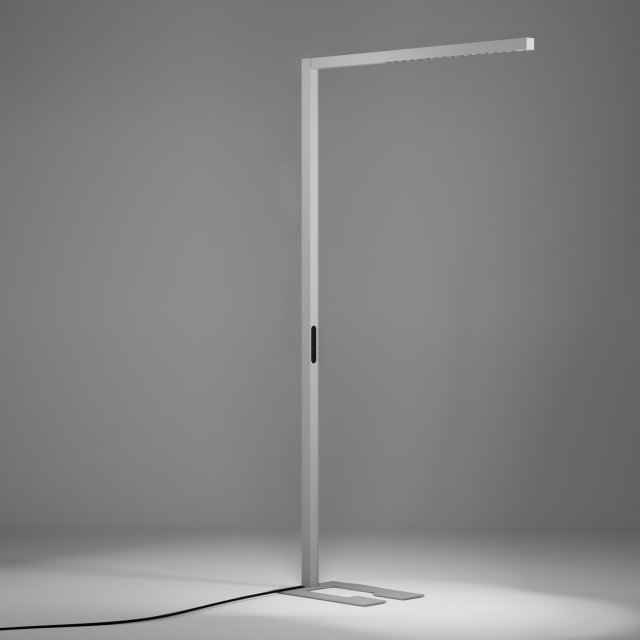

INFORM 40 SQ F1 U PDS DOWN-UP TW 950 A-B

Alu Grey-Black - 100094 9000 A-B

CRI

CCT

General

Location	Indoor
CCT	2700K-5000K
Fixation	Floor
Installation	Stand alone
IP	IP20
Weight (kg)	10
Adjustability	non adjustable
Information	INCL.1 x CABLE 3 x 0.75mm² 2m + CEE 7/7 plug 3 control buttons : 1: UP ON/OFF + DIM 2: RECALL PRESENCE LEVEL + CHANGE CCT 3: DOWN+UP AUTO (sensor) / OFF + DIM INCL.PRESENCE & DAYLIGHT SENSOR PDS SETTINGS BY BLUETOOTH APP UGR ≤ 13

Electrical

Voltage	220-240V / 50-60Hz
Class	I
Dimming type	control button on luminaire
Energy class	D

Lightsource

Light source	LED
LED information	DOWN @ 2700K: LED cluster 14,5W / CRI>90 / 2700K-5000K / 2011lm UP @ 2700K: LED cluster 48W / CRI>90 / 2700K-5000K / 7354lm OR DOWN @ 5000K: LED cluster 14,5W / CRI>90 / 2700K-5000K / 2245lm UP @ 5000K: LED cluster 48W / CRI>90 / 2700K-5000K / 8218lm
SDCM	SDCM3
Riskgroup	RG1
LM80	L80 > 60000
LED technics (light source)	DOWN @ 2700K: 2011lm // 14,5W // 139lm/W UP @ 2700K: 7354lm // 48W // 153lm/W OR DOWN @ 5000K: 2245lm // 14,5W // 155lm/W UP @ 5000K: 8218lm // 48W // 171lm/W
LED technics (luminaire)	DOWN @ 2700K: 1184lm // 16,7W // 71lm/W UP @ 2700K: 6810lm // 55,2W // 123lm/W OR DOWN @ 5000K: 1322lm // 16,7W // 79lm/W UP @ 5000K: 7610lm // 55,2W // 138lm/W

Additional

Remarks	Bluetooth app
Options	INFORM 40 SQ F/T SWARM SENSOR

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Installation manual
