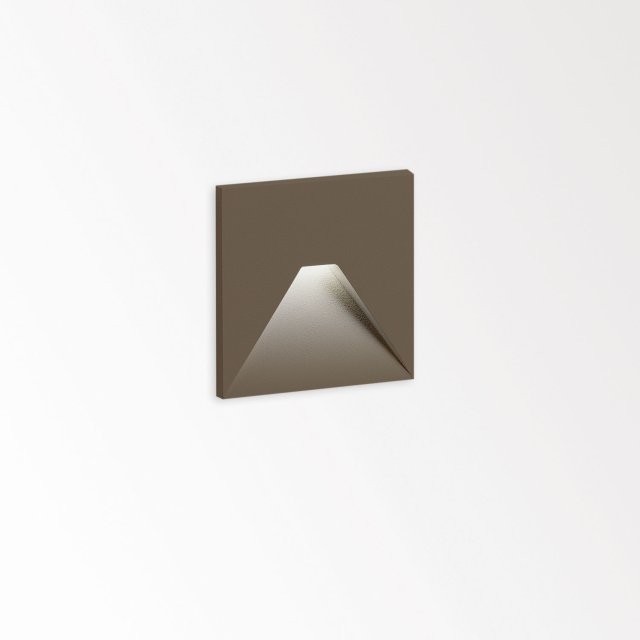

LOGIC MINI W S FBRX
Flemish Bronze Outdoor - 304 31 12 FBRX
CRI
CCT
General
| Location | Indoor, Outdoor |
| CCT | 3000K |
| Fixation | Wall |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 55 |
| Min. recessed depth (mm) | 50 |
| Thickness of mounting surface (mm) | min.12 |
| IP | IP54 |
| IK | IK03 |
| Weight (kg) | 0.2 |
| Adjustability | non adjustable |
| Information | EXCL.LED POWER SUPPLY 24V-DC |
Electrical
| Voltage | 24V-DC |
| Class | III |
| Dimming type | non-dimmable |
| Energy class | G |
Lightsource
| Light source | LED |
| LED information | LED 0,6W / 3000K / 40lm |
| LED technics (light source) | 40lm // 0,6W // 67lm/W |
| LED technics (luminaire) | 4lm // 1W // 5lm/W |
Additional
| Requirements | LED POWER SUPPLY 24V-DC |
| Options | CONCRETE BOX 188 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 24V-DC / 24W | 220-240V | II | non-dimmable | IP20 | round | 55 | 36 | Add to pinlist |
 | LED POWER SUPPLY 24V-DC / 150W | 100-240V | I | non-dimmable | IP67 | round | 75 | 225 | Add to pinlist |
