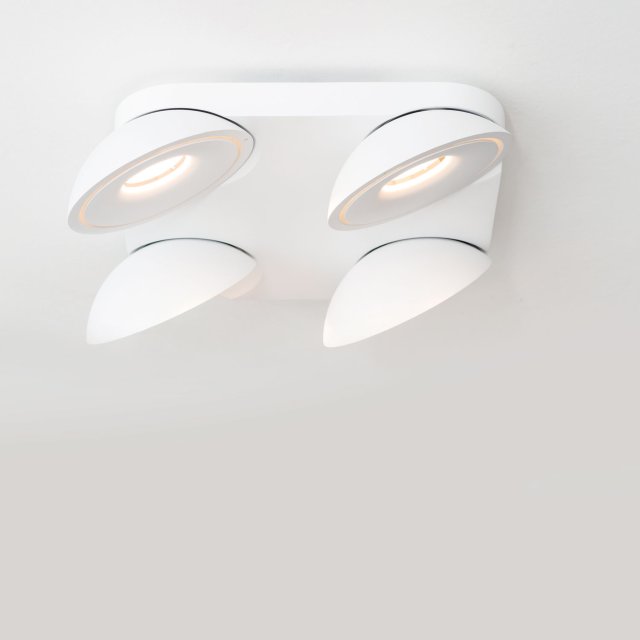

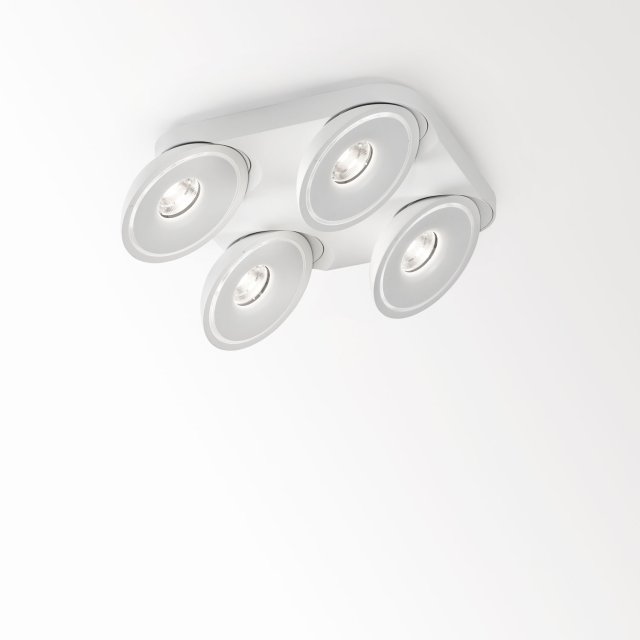

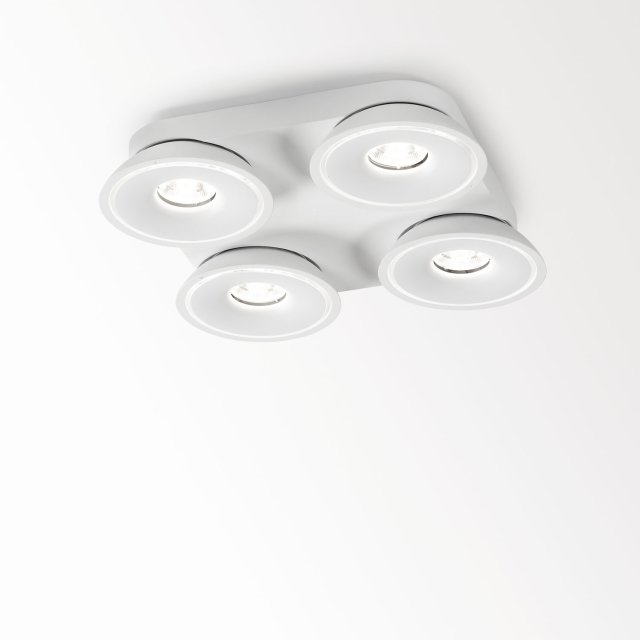

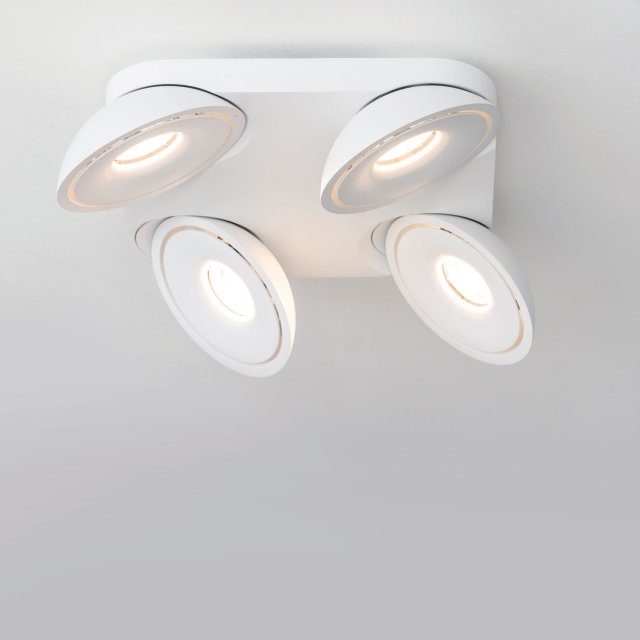

TWEETER ON 4 REO 3050 W
White - 280 60 84 833 W
Beam angle
CRI
CCT
General
| Location | Indoor |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 2.5 |
| Adjustability | 0° to 45° swiveling, 355° rotatable |
| Information | INCL.4 x REFLECTOR WFL-50°
INCL.DIMMABLE LED POWER SUPPLY 350mA-DC
Patented Ex-centric Rotation System |
Electrical
| Class | II |
| Dimming type | mains (phase cut-off) |
Lightsource
| Light source | LED |
| LED information | 4 x (LED array 7W / CRI>80 / 3000K / 680lm) |
| LED technics (light source) | 2720lm // 28W // 95lm/W |
| LED technics (luminaire) | 2300lm // 32,2W // 71lm/W |
Additional
| Accessories | TWEETER CLIP + ACCESSORIES |
Technical data was measured in optimum conditions.
