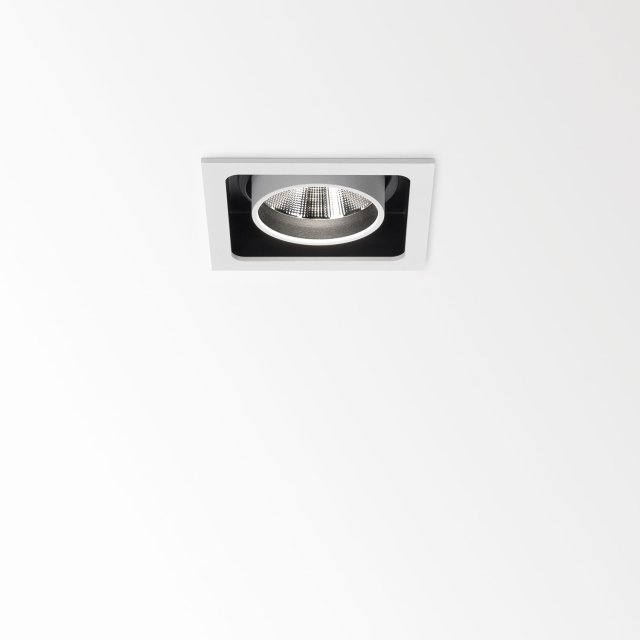

MINIGRID IN 1 HP 2760-9 W-B
White-Black - 202 741 209133 W-B
Beam angle
CRI
CCT
General
| Location | Indoor |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | square |
| Cutout size (mm) | 111 x 111 |
| Min. recessed depth (mm) | 150 |
| Thickness of mounting surface (mm) | max.22 |
| IP | IP20 |
| Weight (kg) | 0.8 |
| Adjustability | 0° to 22° swiveling, 350° rotatable |
| Information | INCL.1 x REFLECTOR WFL-60°
EXCL.LED POWER SUPPLY 500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
Lightsource
| Light source | LED |
| LED information | LED array 18W / CRI>90 / 2700K / 1284lm |
| LED technics (light source) | 1284lm // 18W // 72lm/W |
| LED technics (luminaire) | 1027lm // 20,7W // 50lm/W |
Additional
| Options | PLASTERKIT 126
LED POWER SUPPLY 500mA-DC DIM |
| Accessories | HONEYCOMB 70
LINEAR SPREAD LENS 70
SPREAD LENS 70
SOFTENING LENS 70
GLASS SBL 70 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 0 | 1 | 0 | Add to pinlist |
