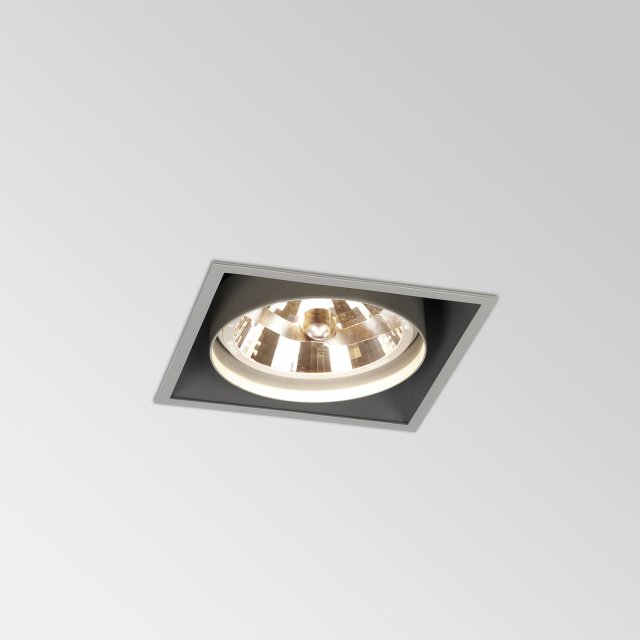

GRAND CARREE 111 A
Alu Grey - 202 24 11 A
General
| Location | Indoor |
| Fixation | Ceiling, Wall |
| Installation | Recessed |
| Cutout shape | square |
| Cutout size (mm) | 142 x 142 |
| Min. recessed depth (mm) | 120 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP20 |
| Weight (kg) | 1 |
| Adjustability | 0° to 50° swiveling, 360° rotatable |
Electrical
| Electrical | G53 / 12V / EXCL.TRANSFO
1 x QR-LP111 max.100W |
| Class | III |
Lightsource
| Light source | Halogen |
| Min. distance to lightsource (m) | 1,0 |
Additional
| Options | PLASTERKIT 167
TRANSFO |
Technical data was measured in optimum conditions.
