No two lighting schemes are identical. Different geometries, different heights, different needs, there is more than only one factor that impacts a lighting setup.

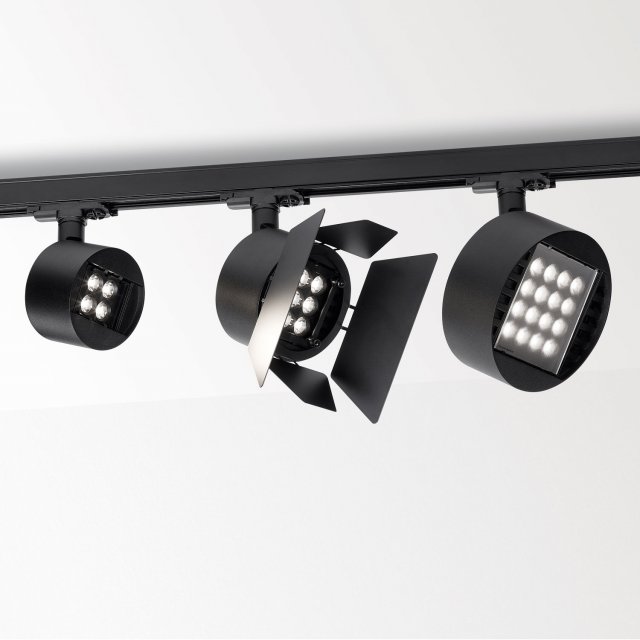

The Fragma range easily adapts to any variable infl uencing the project, thanks to a multitude in optics, lumen packages and dimming possibilities. Its simple design and its circular shape let you use Fragma throughout the project, as it blends in perfectly in any architectural environment, combining clean cut optical performance, light quality and visual comfort.

LED CASET TECHNOLOGY
Fragma is based on Delta Light’s LED Caset technology, which combines multiple LEDs with individual collimator lenses per LED to
generate a clean-cut light distribution. The individual lenses create a multi-layered light distribution to generate a 8° superspot or 14° beam angle as standard. Be it for the smaller version or the high-power Fragma, by concentrating the lenses together, the light distribution will be the same thanks to the multilayering process.

DIMMING
Our Fragma luminaires can be used for simple switch on-switch off settings, but also come in different dimmable versions, be it 1-10V,
DALI, with on-board potentiometer or even wireless.
1-10V dimmable Fragma spots allow for simple group dimming on track level, while our other dimmable versions can be used for
individual dimming per spot. This going from individual handset dimming with the on-board potentiometer version, over the DALI addressable version controlled by a DALI master, till the wireless version based on CTRL Delta, offering solutions for both small and big installations. All Fragma versions require a 3 phase track. However our wireless and on-board dimmable Fragma spots do not need additional dimming wiring within the 3 phase track and in this way offer an easier approach on flexible and individual dimming.

VISUAL WELLBEING
Light is not only about light effects, it also affects the well-being of the passer-by. Good light quality is of main importance, as it influences the passer-by in an indirect way. CRI 90, good Colour Over Angle uniformity and uniform luminance on the emitting surface are some of the characteristics that let Fragma excel in light quality.
In a direct way, the passer-by is influenced by the light when directly looking into the light source. To reduce the direct impact
on the passer-by, Fragma offers multiple accessories to further improve its visual comfort.
