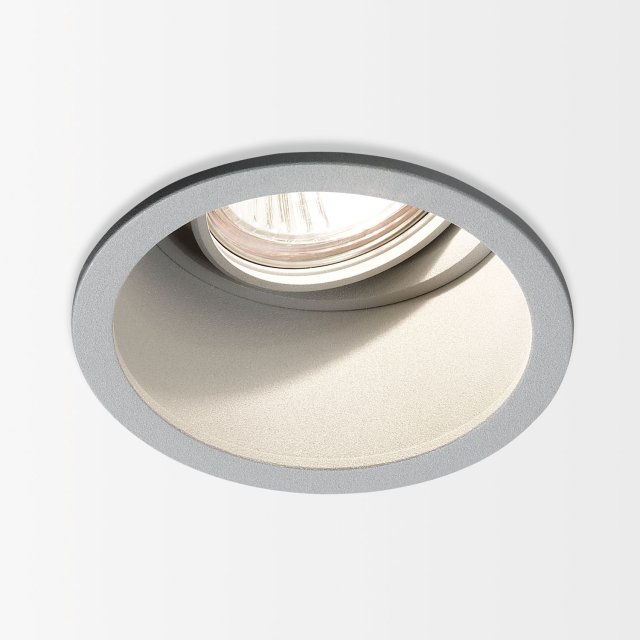

DIRO OK X S1 A
Alu Grey - 202 14 13 A
General
| Location | Outdoor |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 76 |
| Min. recessed depth (mm) | 100 |
| Thickness of mounting surface (mm) | max.22 |
| IP | IP23/20 |
| IK | IK03 |
| Weight (kg) | 0.2 |
| Adjustability | 0° to 20° swiveling |
Electrical
| Voltage | 12V |
| Electrical | GX5.3 / 12V / EXCL.TRANSFO
1 x QR-C51 max.50W |
| Class | III |
Lightsource
| Light source | Halogen |
| Min. distance to lightsource (m) | 0,5 |
Additional
| Options | TRANSFO |
Technical data was measured in optimum conditions.
