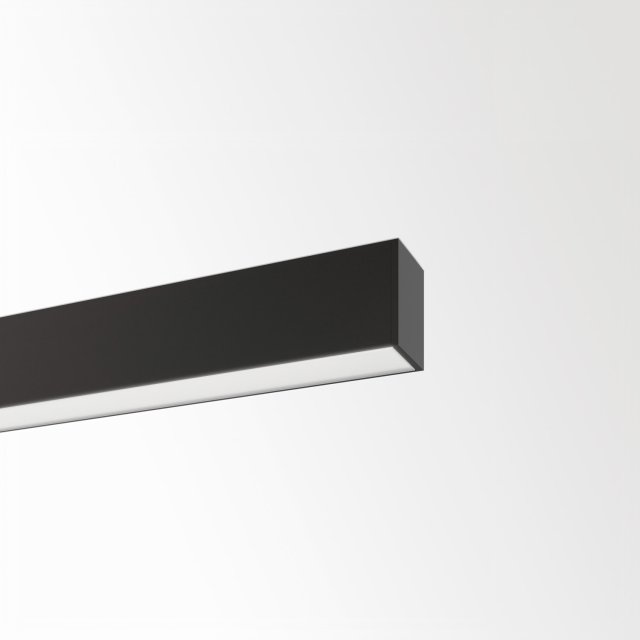

OML50 S - PROFILE B
OMNILINER 50 OPBOUW maatwerk profiel
Zwart - 31000 0000 B
Algemeen
| Locatie | Binnen |
| Fixatie | Plafond, Wand |
| Installatie | Opbouw |
| Gewicht (kg) | 1.2 |
| Informatie | MAX.L / PROFILE : 6m |
Elektrisch
| Klasse | I |
| Certificaten | EPD |
Aanvullend
| Vereiste onderdelen | OML50 - PC SBL PROFILE HE
OML50 - COVER PROFILE |
De technische gegevens werden gemeten onder optimale condities.
Downloads
Volgende bestanden zijn beschikbaar voor download
Profiel
| Referentienummer | ||
|---|---|---|
| 31000 0000 ANO | OML50 S - PROFILE ANO | |
| 31000 0000 B | OML50 S - PROFILE B | |
| 31000 0000 W | OML50 S - PROFILE W |
Deksel
| Referentienummer | ||
|---|---|---|
| 31000 0800 ANO | OML50 - COVER PROFILE ANO | |
| 31000 0800 B | OML50 - COVER PROFILE B | |
| 31000 0800 W | OML50 - COVER PROFILE W |
Eindstukken
| Referentienummer | Eenheid | ||
|---|---|---|---|
| 31000 0310 A | OML50 S - END CAP A | 1 pc | |
| 31000 0310 B | OML50 S - END CAP B | 1 pc | |
| 31000 0310 W | OML50 S - END CAP W | 1 pc |
Hoekverbindingen
| Referentienummer | ||
|---|---|---|
| 31000 0100 ANO | OML50 S - CORNER SET BLIND L ANO | |
| 31000 0100 B | OML50 S - CORNER SET BLIND L B | |
| 31000 0100 W | OML50 S - CORNER SET BLIND L W | |
| 31000 0110 ANO | OML50 S - CORNER SET BLIND T ANO | |
| 31000 0110 B | OML50 S - CORNER SET BLIND T B | |
| 31000 0110 W | OML50 S - CORNER SET BLIND T W | |
| 31000 0120 ANO | OML50 S - CORNER SET BLIND X ANO | |
| 31000 0120 B | OML50 S - CORNER SET BLIND X B | |
| 31000 0120 W | OML50 S - CORNER SET BLIND X W | |
| 31000 0130 ANO | OML50 S - CORNER SET BLIND V90° ANO | |
| 31000 0130 B | OML50 S - CORNER SET BLIND V90° B | |
| 31000 0130 W | OML50 S - CORNER SET BLIND V90° W | |
| 31000 0620 | OML50/50+ S/C - CORNER 180° | |
| 31000 0630 ANO | OML50 S - CORNER SET L ANO | |
| 31000 0630 B | OML50 S - CORNER SET L B | |
| 31000 0630 W | OML50 S - CORNER SET L W | |
| 31000 0640 ANO | OML50 S - CORNER SET T ANO | |
| 31000 0640 B | OML50 S - CORNER SET T B | |
| 31000 0640 W | OML50 S - CORNER SET T W | |
| 31000 0650 ANO | OML50 S - CORNER SET X ANO | |
| 31000 0650 B | OML50 S - CORNER SET X B | |
| 31000 0650 W | OML50 S - CORNER SET X W | |
| 31000 0660 ANO | OML50 S - CORNER SET V90° ANO | |
| 31000 0660 B | OML50 S - CORNER SET V90° B | |
| 31000 0660 W | OML50 S - CORNER SET V90° W | |
| 31000 0720 B | OML50 S - CORNER SET R840 45° B | |
| 31000 0720 W | OML50 S - CORNER SET R840 45° W | |
| 31000 0730 B | OML50 S - CORNER SET R1675 45° B | |
| 31000 0730 W | OML50 S - CORNER SET R1675 45° W | |
| 31000 0740 B | OML50 S - CORNER SET R2925 45° B | |
| 31000 0740 W | OML50 S - CORNER SET R2925 45° W | |
| 31000 0910 B | OML50 S - CORNER SET R420 90° B | |
| 31000 0910 W | OML50 S - CORNER SET R420 90° W | |
| 31000 0920 B | OML50 S - CORNER SET R840 90° B | |
| 31000 0920 W | OML50 S - CORNER SET R840 90° W | |
| 31000 0930 B | OML50 S - CORNER SET R1675 90° B | |
| 31000 0930 W | OML50 S - CORNER SET R1675 90° W |
LED modules lineair (direct) - Algemene verlichting
| Referentienummer | Lengte module | CRI | CCT | Toestel lumen | Toestel vermogen | Efficiëntie (min.) | Lichtverdeling | Spanning | Dimtype | IP | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31011 9300 | OML50 - LED ARRAY D HO 656mm 930 | 656 | 90 | 3000K | 2048 | 18.7 | 110 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31011 9305 | OML50 - LED ARRAY D HO 656mm 930 DIM5 | 656 | 90 | 3000K | 2048 | 18.7 | 110 | Diffuse | 220-240V | DALI | IP20 | |
| 31011 9400 | OML50 - LED ARRAY D HO 656mm 940 | 656 | 90 | 4000K | 2136 | 18.7 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31011 9405 | OML50 - LED ARRAY D HO 656mm 940 DIM5 | 656 | 90 | 4000K | 2136 | 18.7 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31012 9300 | OML50 - LED ARRAY D HO 984mm 930 | 984 | 90 | 3000K | 3072 | 28.2 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31012 9305 | OML50 - LED ARRAY D HO 984mm 930 DIM5 | 984 | 90 | 3000K | 3072 | 28.2 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31012 9400 | OML50 - LED ARRAY D HO 984mm 940 | 984 | 90 | 4000K | 3204 | 28.2 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31012 9405 | OML50 - LED ARRAY D HO 984mm 940 DIM5 | 984 | 90 | 4000K | 3204 | 28.2 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31013 9300 | OML50 - LED ARRAY D HO 1312mm 930 | 1312 | 90 | 3000K | 4096 | 37.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31013 9305 | OML50 - LED ARRAY D HO 1312mm 930 DIM5 | 1312 | 90 | 3000K | 4096 | 37.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31013 9400 | OML50 - LED ARRAY D HO 1312mm 940 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31013 9405 | OML50 - LED ARRAY D HO 1312mm 940 DIM5 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31014 9300 | OML50 - LED ARRAY D HO 1640mm 930 | 1640 | 90 | 3000K | 5120 | 46.9 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31014 9305 | OML50 - LED ARRAY D HO 1640mm 930 DIM5 | 1640 | 90 | 3000K | 5120 | 46.9 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31014 9400 | OML50 - LED ARRAY D HO 1640mm 940 | 1640 | 90 | 4000K | 5340 | 46.9 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31014 9405 | OML50 - LED ARRAY D HO 1640mm 940 DIM5 | 1640 | 90 | 4000K | 5340 | 46.9 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31015 9300 | OML50 - LED ARRAY D HO 1968mm 930 | 1968 | 90 | 3000K | 6144 | 56.4 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31015 9305 | OML50 - LED ARRAY D HO 1968mm 930 DIM5 | 1968 | 90 | 3000K | 6144 | 56.4 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31015 9400 | OML50 - LED ARRAY D HO 1968mm 940 | 1968 | 90 | 4000K | 6408 | 56.4 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31015 9405 | OML50 - LED ARRAY D HO 1968mm 940 DIM5 | 1968 | 90 | 4000K | 6408 | 56.4 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31016 9300 | OML50 - LED ARRAY D HO 2296mm 930 | 2296 | 90 | 3000K | 7168 | 65.7 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31016 9305 | OML50 - LED ARRAY D HO 2296mm 930 DIM5 | 2296 | 90 | 3000K | 7168 | 65.7 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31016 9400 | OML50 - LED ARRAY D HO 2296mm 940 | 2296 | 90 | 4000K | 7476 | 65.7 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31016 9405 | OML50 - LED ARRAY D HO 2296mm 940 DIM5 | 2296 | 90 | 4000K | 7476 | 65.7 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31017 9300 | OML50 - LED ARRAY D HO 2624mm 930 | 2624 | 90 | 3000K | 8193 | 75.1 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31017 9305 | OML50 - LED ARRAY D HO 2624mm 930 DIM5 | 2624 | 90 | 3000K | 8193 | 75.1 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31017 9400 | OML50 - LED ARRAY D HO 2624mm 940 | 2624 | 90 | 4000K | 8544 | 75.1 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31017 9405 | OML50 - LED ARRAY D HO 2624mm 940 DIM5 | 2624 | 90 | 4000K | 8544 | 75.1 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31018 9300 | OML50 - LED ARRAY D HE 656mm 930 | 656 | 90 | 3000K | 1474 | 12.8 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31018 9305 | OML50 - LED ARRAY D HE 656mm 930 DIM5 | 656 | 90 | 3000K | 1474 | 12.8 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31018 9400 | OML50 - LED ARRAY D HE 656mm 940 | 656 | 90 | 4000K | 1536 | 12.8 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31018 9405 | OML50 - LED ARRAY D HE 656mm 940 DIM5 | 656 | 90 | 4000K | 1536 | 12.8 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31019 9300 | OML50 - LED ARRAY D HE 984mm 930 | 984 | 90 | 3000K | 2211 | 19.2 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31019 9305 | OML50 - LED ARRAY D HE 984mm 930 DIM5 | 984 | 90 | 3000K | 2211 | 19.2 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31019 9400 | OML50 - LED ARRAY D HE 984mm 940 | 984 | 90 | 4000K | 2304 | 19.2 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31019 9405 | OML50 - LED ARRAY D HE 984mm 940 DIM5 | 984 | 90 | 4000K | 2304 | 19.2 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31020 9300 | OML50 - LED ARRAY D HE 1312mm 930 | 1312 | 90 | 3000K | 2948 | 25.6 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31020 9305 | OML50 - LED ARRAY D HE 1312mm 930 DIM5 | 1312 | 90 | 3000K | 2948 | 25.6 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31020 9400 | OML50 - LED ARRAY D HE 1312mm 940 | 1312 | 90 | 4000K | 3072 | 25.6 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31020 9405 | OML50 - LED ARRAY D HE 1312mm 940 DIM5 | 1312 | 90 | 4000K | 3072 | 25.6 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31021 9300 | OML50 - LED ARRAY D HE 1640mm 930 | 1640 | 90 | 3000K | 3685 | 32 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31021 9305 | OML50 - LED ARRAY D HE 1640mm 930 DIM5 | 1640 | 90 | 3000K | 3685 | 32 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31021 9400 | OML50 - LED ARRAY D HE 1640mm 940 | 1640 | 90 | 4000K | 3840 | 32 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31021 9405 | OML50 - LED ARRAY D HE 1640mm 940 DIM5 | 1640 | 90 | 4000K | 3840 | 32 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31022 9300 | OML50 - LED ARRAY D HE 1968mm 930 | 1968 | 90 | 3000K | 4422 | 38.4 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31022 9305 | OML50 - LED ARRAY D HE 1968mm 930 DIM5 | 1968 | 90 | 3000K | 4422 | 38.4 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31022 9400 | OML50 - LED ARRAY D HE 1968mm 940 | 1968 | 90 | 4000K | 4608 | 38.4 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31022 9405 | OML50 - LED ARRAY D HE 1968mm 940 DIM5 | 1968 | 90 | 4000K | 4608 | 38.4 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31023 9300 | OML50 - LED ARRAY D HE 2296mm 930 | 2296 | 90 | 3000K | 5159 | 44.8 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31023 9305 | OML50 - LED ARRAY D HE 2296mm 930 DIM5 | 2296 | 90 | 3000K | 5159 | 44.8 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31023 9400 | OML50 - LED ARRAY D HE 2296mm 940 | 2296 | 90 | 4000K | 5376 | 44.8 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31023 9405 | OML50 - LED ARRAY D HE 2296mm 940 DIM5 | 2296 | 90 | 4000K | 5376 | 44.8 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31024 9300 | OML50 - LED ARRAY D HE 2624mm 930 | 2624 | 90 | 3000K | 5896 | 51.2 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31024 9305 | OML50 - LED ARRAY D HE 2624mm 930 DIM5 | 2624 | 90 | 3000K | 5896 | 51.2 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31024 9400 | OML50 - LED ARRAY D HE 2624mm 940 | 2624 | 90 | 4000K | 6144 | 51.2 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31024 9405 | OML50 - LED ARRAY D HE 2624mm 940 DIM5 | 2624 | 90 | 4000K | 6144 | 51.2 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31026 9005 | OML50 - LED ARRAY D TW 984mm 950 DIM5 | 984 | 90 | 2700K-5000K | 2366 | 25.6 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31027 9005 | OML50 - LED ARRAY D TW 1312mm 950 DIM5 | 1312 | 90 | 2700K-5000K | 3155 | 34.3 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31028 9005 | OML50 - LED ARRAY D TW 1640mm 950 DIM5 | 1640 | 90 | 2700K-5000K | 3944 | 42.8 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31029 9005 | OML50 - LED ARRAY D TW 1968mm 950 DIM5 | 1968 | 90 | 2700K-5000K | 4732 | 51.3 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31030 9005 | OML50 - LED ARRAY D TW 2296mm 950 DIM5 | 2296 | 90 | 2700K-5000K | 5521 | 59.9 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31031 9005 | OML50 - LED ARRAY D TW 2624mm 950 DIM5 | 2624 | 90 | 2700K-5000K | 6310 | 68.4 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31053 9300 | OML50 - LED ARRAY D HO CORNER L 930 | 1312 | 90 | 3000K | 4095 | 37.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31053 9305 | OML50 - LED ARRAY D HO CORNER L 930 DIM5 | 1312 | 90 | 3000K | 4095 | 37.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31053 9400 | OML50 - LED ARRAY D HO CORNER L 940 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31053 9405 | OML50 - LED ARRAY D HO CORNER L 940 DIM5 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31054 9300 | OML50 - LED ARRAY D HO CORNER T 930 | 1312 | 90 | 3000K | 4095 | 37.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31054 9305 | OML50 - LED ARRAY D HO CORNER T 930 DIM5 | 1312 | 90 | 3000K | 4095 | 37.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31054 9400 | OML50 - LED ARRAY D HO CORNER T 940 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31054 9405 | OML50 - LED ARRAY D HO CORNER T 940 DIM5 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31055 9300 | OML50 - LED ARRAY D HO CORNER X 930 | 1312 | 90 | 3000K | 4095 | 37.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31055 9305 | OML50 - LED ARRAY D HO CORNER X 930 DIM5 | 1312 | 90 | 3000K | 4095 | 37.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31055 9400 | OML50 - LED ARRAY D HO CORNER X 940 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31055 9405 | OML50 - LED ARRAY D HO CORNER X 940 DIM5 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31056 9300 | OML50 - LED ARRAY D HO CORNER V90° 930 | 1312 | 90 | 3000K | 4095 | 37.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31056 9305 | OML50 - LED ARRAY D HO CORNER V90° 930 DIM5 | 1312 | 90 | 3000K | 4095 | 37.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31056 9400 | OML50 - LED ARRAY D HO CORNER V90° 940 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31056 9405 | OML50 - LED ARRAY D HO CORNER V90° 940 DIM5 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31057 9300 | OML50 - LED ARRAY D HE CORNER L 930 | 1312 | 90 | 3000K | 2948 | 25.5 | 116 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31057 9305 | OML50 - LED ARRAY D HE CORNER L 930 DIM5 | 1312 | 90 | 3000K | 2948 | 25.5 | 116 | Diffuse | 220-240V | DALI | IP20 | |
| 31057 9400 | OML50 - LED ARRAY D HE CORNER L 940 | 1312 | 90 | 4000K | 3072 | 25.5 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31057 9405 | OML50 - LED ARRAY D HE CORNER L 940 DIM5 | 1312 | 90 | 4000K | 3072 | 25.5 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31058 9300 | OML50 - LED ARRAY D HE CORNER T 930 | 1312 | 90 | 3000K | 2948 | 25.5 | 116 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31058 9305 | OML50 - LED ARRAY D HE CORNER T 930 DIM5 | 1312 | 90 | 3000K | 2948 | 25.5 | 116 | Diffuse | 220-240V | DALI | IP20 | |
| 31058 9400 | OML50 - LED ARRAY D HE CORNER T 940 | 1312 | 90 | 4000K | 3072 | 25.5 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31058 9405 | OML50 - LED ARRAY D HE CORNER T 940 DIM5 | 1312 | 90 | 4000K | 3072 | 25.5 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31059 9300 | OML50 - LED ARRAY D HE CORNER X 930 | 1312 | 90 | 3000K | 2948 | 25.5 | 116 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31059 9305 | OML50 - LED ARRAY D HE CORNER X 930 DIM5 | 1312 | 90 | 3000K | 2948 | 25.5 | 116 | Diffuse | 220-240V | DALI | IP20 | |
| 31059 9400 | OML50 - LED ARRAY D HE CORNER X 940 | 1312 | 90 | 4000K | 3072 | 25.5 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31059 9405 | OML50 - LED ARRAY D HE CORNER X 940 DIM5 | 1312 | 90 | 4000K | 3072 | 25.5 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31060 9300 | OML50 - LED ARRAY D HE CORNER V90° 930 | 1312 | 90 | 3000K | 2948 | 25.5 | 116 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31060 9305 | OML50 - LED ARRAY D HE CORNER V90° 930 DIM5 | 1312 | 90 | 3000K | 2948 | 25.5 | 116 | Diffuse | 220-240V | DALI | IP20 | |
| 31060 9400 | OML50 - LED ARRAY D HE CORNER V90° 940 | 1312 | 90 | 4000K | 3072 | 25.5 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31060 9405 | OML50 - LED ARRAY D HE CORNER V90° 940 DIM5 | 1312 | 90 | 4000K | 3072 | 25.5 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31061 9005 | OML50 - LED ARRAY D TW CORNER L 950 DIM5 | 1312 | 90 | 2700K-5000K | 3155 | 34.3 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31062 9005 | OML50 - LED ARRAY D TW CORNER T 950 DIM5 | 1312 | 90 | 2700K-5000K | 3155 | 34.3 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31063 9005 | OML50 - LED ARRAY D TW CORNER X 950 DIM5 | 1312 | 90 | 2700K-5000K | 3155 | 34.3 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31064 9005 | OML50 - LED ARRAY D TW CORNER V90° 950 DIM5 | 1312 | 90 | 2700K-5000K | 3155 | 34.3 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31074 9300 | OML50 - LED ARRAY D HO CORNER R420 90° 930 | 660 | 90 | 3000K | 2048 | 18.7 | 110 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31074 9305 | OML50 - LED ARRAY D HO CORNER R420 90° 930 DIM5 | 660 | 90 | 3000K | 2048 | 18.7 | 110 | Diffuse | 220-240V | DALI | IP20 | |
| 31074 9400 | OML50 - LED ARRAY D HO CORNER R420 90° 940 | 660 | 90 | 4000K | 2136 | 18.7 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31074 9405 | OML50 - LED ARRAY D HO CORNER R420 90° 940 DIM5 | 660 | 90 | 4000K | 2136 | 18.7 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31075 9300 | OML50 - LED ARRAY D HO CORNER R840 90° 930 | 1319 | 90 | 3000K | 4096 | 37.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31075 9305 | OML50 - LED ARRAY D HO CORNER R840 90° 930 DIM5 | 1319 | 90 | 3000K | 4096 | 37.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31075 9400 | OML50 - LED ARRAY D HO CORNER R840 90° 940 | 1319 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31075 9405 | OML50 - LED ARRAY D HO CORNER R840 90° 940 DIM5 | 1319 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31076 9300 | OML50 - LED ARRAY D HO CORNER R1675 90° 930 | 2631 | 90 | 3000K | 8193 | 75.1 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31076 9305 | OML50 - LED ARRAY D HO CORNER R1675 90° 930 DIM5 | 2631 | 90 | 3000K | 8193 | 75.1 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31076 9400 | OML50 - LED ARRAY D HO CORNER R1675 90° 940 | 2631 | 90 | 4000K | 8544 | 75.1 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31076 9405 | OML50 - LED ARRAY D HO CORNER R1675 90° 940 DIM5 | 2631 | 90 | 4000K | 8544 | 75.1 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31078 9300 | OML50 - LED ARRAY D HE CORNER R420 90° 930 | 660 | 90 | 3000K | 1474 | 12.8 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31078 9305 | OML50 - LED ARRAY D HE CORNER R420 90° 930 DIM5 | 660 | 90 | 3000K | 1474 | 12.8 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31078 9400 | OML50 - LED ARRAY D HE CORNER R420 90° 940 | 660 | 90 | 4000K | 1536 | 12.8 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31078 9405 | OML50 - LED ARRAY D HE CORNER R420 90° 940 DIM5 | 660 | 90 | 4000K | 1536 | 12.8 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31079 9300 | OML50 - LED ARRAY D HE CORNER R840 90° 930 | 1319 | 90 | 3000K | 2948 | 25.6 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31079 9305 | OML50 - LED ARRAY D HE CORNER R840 90° 930 DIM5 | 1319 | 90 | 3000K | 2948 | 25.6 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31079 9400 | OML50 - LED ARRAY D HE CORNER R840 90° 940 | 1319 | 90 | 4000K | 3072 | 25.6 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31079 9405 | OML50 - LED ARRAY D HE CORNER R840 90° 940 DIM5 | 1319 | 90 | 4000K | 3072 | 25.6 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31080 9300 | OML50 - LED ARRAY D HE CORNER R1675 90° 930 | 2631 | 90 | 3000K | 5896 | 51.2 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31080 9305 | OML50 - LED ARRAY D HE CORNER R1675 90° 930 DIM5 | 2631 | 90 | 3000K | 5896 | 51.2 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31080 9400 | OML50 - LED ARRAY D HE CORNER R1675 90° 940 | 2631 | 90 | 4000K | 6144 | 51.2 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31080 9405 | OML50 - LED ARRAY D HE CORNER R1675 90° 940 DIM5 | 2631 | 90 | 4000K | 6144 | 51.2 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31082 9005 | OML50 - LED ARRAY D TW CORNER R420 90° 950 DIM5 | 660 | 90 | 2700K-5000K | 1577 | 17.1 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31083 9005 | OML50 - LED ARRAY D TW CORNER R840 90° 950 DIM5 | 1319 | 90 | 2700K-5000K | 3155 | 34.3 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31084 9005 | OML50 - LED ARRAY D TW CORNER R1675 90° 950 DIM5 | 2631 | 90 | 2700K-5000K | 6310 | 68.4 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31086 9300 | OML50 - LED ARRAY D HO CORNER R840 45° 930 | 660 | 90 | 3000K | 2048 | 18.7 | 110 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31086 9305 | OML50 - LED ARRAY D HO CORNER R840 45° 930 DIM5 | 660 | 90 | 3000K | 2048 | 18.7 | 110 | Diffuse | 220-240V | DALI | IP20 | |
| 31086 9400 | OML50 - LED ARRAY D HO CORNER R840 45° 940 | 660 | 90 | 4000K | 2136 | 18.7 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31086 9405 | OML50 - LED ARRAY D HO CORNER R840 45° 940 DIM5 | 660 | 90 | 4000K | 2136 | 18.7 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31087 9300 | OML50 - LED ARRAY D HO CORNER R1675 45° 930 | 1316 | 90 | 3000K | 4096 | 37.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31087 9305 | OML50 - LED ARRAY D HO CORNER R1675 45° 930 DIM5 | 1316 | 90 | 3000K | 4096 | 37.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31087 9400 | OML50 - LED ARRAY D HO CORNER R1675 45° 940 | 1316 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31087 9405 | OML50 - LED ARRAY D HO CORNER R1675 45° 940 DIM5 | 1316 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31088 9300 | OML50 - LED ARRAY D HO CORNER R2925 45° 930 | 2297 | 90 | 3000K | 7168 | 65.7 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31088 9305 | OML50 - LED ARRAY D HO CORNER R2925 45° 930 DIM5 | 2297 | 90 | 3000K | 7168 | 65.7 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31088 9400 | OML50 - LED ARRAY D HO CORNER R2925 45° 940 | 2297 | 90 | 4000K | 7476 | 65.7 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31088 9405 | OML50 - LED ARRAY D HO CORNER R2925 45° 940 DIM5 | 2297 | 90 | 4000K | 7476 | 65.7 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31089 9300 | OML50 - LED ARRAY D HE CORNER R840 45° 930 | 660 | 90 | 3000K | 1474 | 12.8 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31089 9305 | OML50 - LED ARRAY D HE CORNER R840 45° 930 DIM5 | 660 | 90 | 3000K | 1474 | 12.8 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31089 9400 | OML50 - LED ARRAY D HE CORNER R840 45° 940 | 660 | 90 | 4000K | 1536 | 12.8 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31089 9405 | OML50 - LED ARRAY D HE CORNER R840 45° 940 DIM5 | 660 | 90 | 4000K | 1536 | 12.8 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31090 9300 | OML50 - LED ARRAY D HE CORNER R1675 45° 930 | 1316 | 90 | 3000K | 2948 | 25.6 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31090 9305 | OML50 - LED ARRAY D HE CORNER R1675 45° 930 DIM5 | 1316 | 90 | 3000K | 2948 | 25.6 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31090 9400 | OML50 - LED ARRAY D HE CORNER R1675 45° 940 | 1316 | 90 | 4000K | 3072 | 25.6 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31090 9405 | OML50 - LED ARRAY D HE CORNER R1675 45° 940 DIM5 | 1316 | 90 | 4000K | 3072 | 25.6 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31091 9300 | OML50 - LED ARRAY D HE CORNER R2925 45° 930 | 2297 | 90 | 3000K | 5159 | 44.8 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31091 9305 | OML50 - LED ARRAY D HE CORNER R2925 45° 930 DIM5 | 2297 | 90 | 3000K | 5159 | 44.8 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31091 9400 | OML50 - LED ARRAY D HE CORNER R2925 45° 940 | 2297 | 90 | 4000K | 5376 | 44.8 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31091 9405 | OML50 - LED ARRAY D HE CORNER R2925 45° 940 DIM5 | 2297 | 90 | 4000K | 5376 | 44.8 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31092 9005 | OML50 - LED ARRAY D TW CORNER R840 45° 950 DIM5 | 660 | 90 | 2700K-5000K | 1577 | 17.1 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31093 9005 | OML50 - LED ARRAY D TW CORNER R1675 45° 950 DIM5 | 1316 | 90 | 2700K-5000K | 3155 | 34.3 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31094 9005 | OML50 - LED ARRAY D TW CORNER R2925 45° 950 DIM5 | 2297 | 90 | 2700K-5000K | 5521 | 59.9 | 92 | Diffuse | 220-240V | DALI | IP20 | |
| 31218 9300 | OML50 - LED ARRAY D HO 1312mm EM-3H 930 | 1312 | 90 | 3000K | 4096 | 37.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31218 9305 | OML50 - LED ARRAY D HO 1312mm EM-3H 930 DIM5 | 1312 | 90 | 3000K | 4096 | 37.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31218 9400 | OML50 - LED ARRAY D HO 1312mm EM-3H 940 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31218 9405 | OML50 - LED ARRAY D HO 1312mm EM-3H 940 DIM5 | 1312 | 90 | 4000K | 4272 | 37.5 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31219 9300 | OML50 - LED ARRAY D HE 1312mm EM-3H 930 | 1312 | 90 | 3000K | 2948 | 25.6 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31219 9305 | OML50 - LED ARRAY D HE 1312mm EM-3H 930 DIM5 | 1312 | 90 | 3000K | 2948 | 25.6 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31219 9400 | OML50 - LED ARRAY D HE 1312mm EM-3H 940 | 1312 | 90 | 4000K | 3072 | 25.6 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31219 9405 | OML50 - LED ARRAY D HE 1312mm EM-3H 940 DIM5 | 1312 | 90 | 4000K | 3072 | 25.6 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31220 9005 | OML50 - LED ARRAY D TW 1312mm EM-3H 950 DIM5 | 1312 | 90 | 2700K-5000K | 3155 | 34.3 | 92 | Diffuse | 220-240V | DALI | IP20 |
LED modules lineair (direct) - Taak verlichting
| Referentienummer | Lengte module | CRI | CCT | Toestel lumen | Toestel vermogen | Efficiëntie (min.) | Lichtbundel | Spanning | Dimtype | IP | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31411 9330 B | OML50 - INFORM D HO 656mm 16LED 93063 B | 656 | 90 | 3000K | 2469 | 27.8 | 89 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31411 9335 B | OML50 - INFORM D HO 656mm 16LED 93063 DIM5 B | 656 | 90 | 3000K | 2469 | 27.8 | 89 | 63 | 220-240V | DALI | IP20 | |
| 31411 9430 B | OML50 - INFORM D HO 656mm 16LED 94063 B | 656 | 90 | 4000K | 2573 | 27.8 | 93 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31411 9435 B | OML50 - INFORM D HO 656mm 16LED 94063 DIM5 B | 656 | 90 | 4000K | 2573 | 27.8 | 93 | 63 | 220-240V | DALI | IP20 | |
| 31412 9330 B | OML50 - INFORM D HO 984mm 24LED 93063 B | 984 | 90 | 3000K | 3703 | 41.7 | 89 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31412 9335 B | OML50 - INFORM D HO 984mm 24LED 93063 DIM5 B | 984 | 90 | 3000K | 3703 | 41.7 | 89 | 63 | 220-240V | DALI | IP20 | |
| 31412 9430 B | OML50 - INFORM D HO 984mm 24LED 94063 B | 984 | 90 | 4000K | 3859 | 41.7 | 93 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31412 9435 B | OML50 - INFORM D HO 984mm 24LED 94063 DIM5 B | 984 | 90 | 4000K | 3859 | 41.7 | 93 | 63 | 220-240V | DALI | IP20 | |
| 31413 9330 B | OML50 - INFORM D HO 1312mm 8+8LED 93063 B | 1312 | 90 | 3000K | 2469 | 27.8 | 89 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31413 9335 B | OML50 - INFORM D HO 1312mm 8+8LED 93063 DIM5 B | 1312 | 90 | 3000K | 2469 | 27.8 | 89 | 63 | 220-240V | DALI | IP20 | |
| 31413 9430 B | OML50 - INFORM D HO 1312mm 8+8LED 94063 B | 1312 | 90 | 4000K | 2573 | 27.8 | 93 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31413 9435 B | OML50 - INFORM D HO 1312mm 8+8LED 94063 DIM5 B | 1312 | 90 | 4000K | 2573 | 27.8 | 93 | 63 | 220-240V | DALI | IP20 | |
| 31414 9330 B | OML50 - INFORM D HO 1640mm 8+8LED 93063 B | 1640 | 90 | 3000K | 2469 | 27.8 | 89 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31414 9335 B | OML50 - INFORM D HO 1640mm 8+8LED 93063 DIM5 B | 1640 | 90 | 3000K | 2469 | 27.8 | 89 | 63 | 220-240V | DALI | IP20 | |
| 31414 9430 B | OML50 - INFORM D HO 1640mm 8+8LED 94063 B | 1640 | 90 | 4000K | 2573 | 27.8 | 93 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31414 9435 B | OML50 - INFORM D HO 1640mm 8+8LED 94063 DIM5 B | 1640 | 90 | 4000K | 2573 | 27.8 | 93 | 63 | 220-240V | DALI | IP20 | |
| 31416 9330 B | OML50 - INFORM D HO 2624mm 8+16+8LED 93063 B | 2624 | 90 | 3000K | 4938 | 55.7 | 89 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31416 9335 B | OML50 - INFORM D HO 2624mm 8+16+8LED 93063 DIM5 B | 2624 | 90 | 3000K | 4938 | 55.7 | 89 | 63 | 220-240V | DALI | IP20 | |
| 31416 9430 B | OML50 - INFORM D HO 2624mm 8+16+8LED 94063 B | 2624 | 90 | 4000K | 5145 | 55.7 | 92 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31416 9435 B | OML50 - INFORM D HO 2624mm 8+16+8LED 94063 DIM5 B | 2624 | 90 | 4000K | 5145 | 55.7 | 92 | 63 | 220-240V | DALI | IP20 | |
| 31417 9330 B | OML50 - INFORM D HO 3280mm 8+16+8LED 93063 B | 3280 | 90 | 3000K | 4938 | 55.7 | 89 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31417 9335 B | OML50 - INFORM D HO 3280mm 8+16+8LED 93063 DIM5 B | 3280 | 90 | 3000K | 4938 | 55.7 | 89 | 63 | 220-240V | DALI | IP20 | |
| 31417 9430 B | OML50 - INFORM D HO 3280mm 8+16+8LED 94063 B | 3280 | 90 | 4000K | 5145 | 55.7 | 92 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31417 9435 B | OML50 - INFORM D HO 3280mm 8+16+8LED 94063 DIM5 B | 3280 | 90 | 4000K | 5145 | 55.7 | 92 | 63 | 220-240V | DALI | IP20 | |
| 31418 9330 B | OML50 - INFORM D HE 656mm 16LED 93063 B | 656 | 90 | 3000K | 1790 | 18.7 | 96 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31418 9335 B | OML50 - INFORM D HE 656mm 16LED 93063 DIM5 B | 656 | 90 | 3000K | 1790 | 18.7 | 96 | 63 | 220-240V | DALI | IP20 | |
| 31418 9430 B | OML50 - INFORM D HE 656mm 16LED 94063 B | 656 | 90 | 4000K | 1867 | 18.7 | 100 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31418 9435 B | OML50 - INFORM D HE 656mm 16LED 94063 DIM5 B | 656 | 90 | 4000K | 1867 | 18.7 | 100 | 63 | 220-240V | DALI | IP20 | |
| 31419 9330 B | OML50 - INFORM D HE 984mm 24LED 93063 B | 984 | 90 | 3000K | 2686 | 28.2 | 95 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31419 9335 B | OML50 - INFORM D HE 984mm 24LED 93063 DIM5 B | 984 | 90 | 3000K | 2686 | 28.2 | 95 | 63 | 220-240V | DALI | IP20 | |
| 31419 9430 B | OML50 - INFORM D HE 984mm 24LED 94063 B | 984 | 90 | 4000K | 2801 | 28.2 | 99 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31419 9435 B | OML50 - INFORM D HE 984mm 24LED 94063 DIM5 B | 984 | 90 | 4000K | 2801 | 28.2 | 99 | 63 | 220-240V | DALI | IP20 | |
| 31420 9330 B | OML50 - INFORM D HE 1312mm 8+8LED 93063 B | 1312 | 90 | 3000K | 1790 | 18.7 | 96 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31420 9335 B | OML50 - INFORM D HE 1312mm 8+8LED 93063 DIM5 B | 1312 | 90 | 3000K | 1790 | 18.7 | 96 | 63 | 220-240V | DALI | IP20 | |
| 31420 9430 B | OML50 - INFORM D HE 1312mm 8+8LED 94063 B | 1312 | 90 | 4000K | 1867 | 18.7 | 100 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31420 9435 B | OML50 - INFORM D HE 1312mm 8+8LED 94063 DIM5 B | 1312 | 90 | 4000K | 1867 | 18.7 | 100 | 63 | 220-240V | DALI | IP20 | |
| 31421 9330 B | OML50 - INFORM D HE 1640mm 8+8LED 93063 B | 1640 | 90 | 3000K | 1790 | 18.7 | 96 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31421 9335 B | OML50 - INFORM D HE 1640mm 8+8LED 93063 DIM5 B | 1640 | 90 | 3000K | 1790 | 18.7 | 96 | 63 | 220-240V | DALI | IP20 | |
| 31421 9430 B | OML50 - INFORM D HE 1640mm 8+8LED 94063 B | 1640 | 90 | 4000K | 1867 | 18.7 | 100 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31421 9435 B | OML50 - INFORM D HE 1640mm 8+8LED 94063 DIM5 B | 1640 | 90 | 4000K | 1867 | 18.7 | 100 | 63 | 220-240V | DALI | IP20 | |
| 31423 9330 B | OML50 - INFORM D HE 2624mm 8+16+8LED 93063 B | 2624 | 90 | 3000K | 3581 | 37.5 | 95 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31423 9335 B | OML50 - INFORM D HE 2624mm 8+16+8LED 93063 DIM5 B | 2624 | 90 | 3000K | 3581 | 37.5 | 95 | 63 | 220-240V | DALI | IP20 | |
| 31423 9430 B | OML50 - INFORM D HE 2624mm 8+16+8LED 94063 B | 2624 | 90 | 4000K | 3735 | 37.5 | 100 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31423 9435 B | OML50 - INFORM D HE 2624mm 8+16+8LED 94063 DIM5 B | 2624 | 90 | 4000K | 3735 | 37.5 | 100 | 63 | 220-240V | DALI | IP20 | |
| 31424 9330 B | OML50 - INFORM D HE 3280mm 8+16+8LED 93063 B | 3280 | 90 | 3000K | 3581 | 37.5 | 95 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31424 9335 B | OML50 - INFORM D HE 3280mm 8+16+8LED 93063 DIM5 B | 3280 | 90 | 3000K | 3581 | 37.5 | 95 | 63 | 220-240V | DALI | IP20 | |
| 31424 9430 B | OML50 - INFORM D HE 3280mm 8+16+8LED 94063 B | 3280 | 90 | 4000K | 3735 | 37.5 | 100 | 63 | 220-240V | niet dimbaar | IP20 | |
| 31424 9435 B | OML50 - INFORM D HE 3280mm 8+16+8LED 94063 DIM5 B | 3280 | 90 | 4000K | 3735 | 37.5 | 100 | 63 | 220-240V | DALI | IP20 | |
| 31426 9035 B | OML50 - INFORM D TW 984mm 24LED 95063 DIM5 B | 984 | 90 | 2700K-5000K | 2069 | 25.6 | 81 | 63 | 220-240V | DALI | IP20 | |
| 31427 9035 B | OML50 - INFORM D TW 1312mm 8+8LED 95063 DIM5 B | 1312 | 90 | 2700K-5000K | 1379 | 17.1 | 81 | 63 | 220-240V | DALI | IP20 | |
| 31428 9035 B | OML50 - INFORM D TW 1640mm 8+8LED 95063 DIM5 B | 1640 | 90 | 2700K-5000K | 1379 | 17.1 | 81 | 63 | 220-240V | DALI | IP20 | |
| 31430 9035 B | OML50 - INFORM D TW 2624mm 8+16+8LED 95063 DIM5 B | 2624 | 90 | 2700K-5000K | 2758 | 34.3 | 80 | 63 | 220-240V | DALI | IP20 | |
| 31431 9035 B | OML50 - INFORM D TW 3280mm 8+16+8LED 95063 DIM5 B | 3280 | 90 | 2700K-5000K | 2758 | 34.3 | 80 | 63 | 220-240V | DALI | IP20 |
LED modules lineair (direct) - Lage verblinding
| Referentienummer | Lengte module | CRI | CCT | Toestel lumen | Toestel vermogen | Efficiëntie (min.) | Lichtverdeling | Spanning | Dimtype | IP | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31224 9300 B | OML50 - PRISMATIC LENS D HO 1312mm EM-3H 930 B | 1312 | 90 | 3000K | 3832 | 35.6 | 108 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31224 9305 B | OML50 - PRISMATIC LENS D HO 1312mm EM-3H 930 DIM5 B | 1312 | 90 | 3000K | 3832 | 35.6 | 108 | Diffuse | 220-240V | DALI | IP20 | |
| 31224 9400 B | OML50 - PRISMATIC LENS D HO 1312mm EM-3H 940 B | 1312 | 90 | 4000K | 3904 | 35.6 | 110 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31224 9405 B | OML50 - PRISMATIC LENS D HO 1312mm EM-3H 940 DIM5 B | 1312 | 90 | 4000K | 3904 | 35.6 | 110 | Diffuse | 220-240V | DALI | IP20 | |
| 31225 9300 B | OML50 - PRISMATIC LENS D HE 1312mm EM-3H 930 B | 1312 | 90 | 3000K | 2570 | 22.4 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31225 9305 B | OML50 - PRISMATIC LENS D HE 1312mm EM-3H 930 DIM5 B | 1312 | 90 | 3000K | 2570 | 22.4 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31225 9400 B | OML50 - PRISMATIC LENS D HE 1312mm EM-3H 940 B | 1312 | 90 | 4000K | 2677 | 22.4 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31225 9405 B | OML50 - PRISMATIC LENS D HE 1312mm EM-3H 940 DIM5 B | 1312 | 90 | 4000K | 2677 | 22.4 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31226 9005 B | OML50 - PRISMATIC LENS D TW 1312mm EM-3H 950 DIM5 B | 1312 | 90 | 2700K-5000K | 2583 | 27.6 | 94 | Diffuse | 220-240V | DALI | IP20 | |
| 31611 9300 B | OML50 - PRISMATIC LENS D HO 656mm 930 B | 656 | 90 | 3000K | 1916 | 17.8 | 108 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31611 9305 B | OML50 - PRISMATIC LENS D HO 656mm 930 DIM5 B | 656 | 90 | 3000K | 1916 | 17.8 | 108 | Diffuse | 220-240V | DALI | IP20 | |
| 31611 9400 B | OML50 - PRISMATIC LENS D HO 656mm 940 B | 656 | 90 | 4000K | 1952 | 17.8 | 110 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31611 9405 B | OML50 - PRISMATIC LENS D HO 656mm 940 DIM5 B | 656 | 90 | 4000K | 1952 | 17.8 | 110 | Diffuse | 220-240V | DALI | IP20 | |
| 31612 9300 B | OML50 - PRISMATIC LENS D HO 984mm 930 B | 984 | 90 | 3000K | 2874 | 26.8 | 107 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31612 9305 B | OML50 - PRISMATIC LENS D HO 984mm 930 DIM5 B | 984 | 90 | 3000K | 2874 | 26.8 | 107 | Diffuse | 220-240V | DALI | IP20 | |
| 31612 9400 B | OML50 - PRISMATIC LENS D HO 984mm 940 B | 984 | 90 | 4000K | 2928 | 26.8 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31612 9405 B | OML50 - PRISMATIC LENS D HO 984mm 940 DIM5 B | 984 | 90 | 4000K | 2928 | 26.8 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31613 9300 B | OML50 - PRISMATIC LENS D HO 1312mm 930 B | 1312 | 90 | 3000K | 3832 | 35.6 | 108 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31613 9305 B | OML50 - PRISMATIC LENS D HO 1312mm 930 DIM5 B | 1312 | 90 | 3000K | 3832 | 35.6 | 108 | Diffuse | 220-240V | DALI | IP20 | |
| 31613 9400 B | OML50 - PRISMATIC LENS D HO 1312mm 940 B | 1312 | 90 | 4000K | 3904 | 35.6 | 110 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31613 9405 B | OML50 - PRISMATIC LENS D HO 1312mm 940 DIM5 B | 1312 | 90 | 4000K | 3904 | 35.6 | 110 | Diffuse | 220-240V | DALI | IP20 | |
| 31614 9300 B | OML50 - PRISMATIC LENS D HO 1640mm 930 B | 1640 | 90 | 3000K | 4790 | 44.6 | 107 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31614 9305 B | OML50 - PRISMATIC LENS D HO 1640mm 930 DIM5 B | 1640 | 90 | 3000K | 4790 | 44.6 | 107 | Diffuse | 220-240V | DALI | IP20 | |
| 31614 9400 B | OML50 - PRISMATIC LENS D HO 1640mm 940 B | 1640 | 90 | 4000K | 4880 | 44.6 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31614 9405 B | OML50 - PRISMATIC LENS D HO 1640mm 940 DIM5 B | 1640 | 90 | 4000K | 4880 | 44.6 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31615 9300 B | OML50 - PRISMATIC LENS D HO 1968mm 930 B | 1968 | 90 | 3000K | 5748 | 53.5 | 107 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31615 9305 B | OML50 - PRISMATIC LENS D HO 1968mm 930 DIM5 B | 1968 | 90 | 3000K | 5748 | 53.5 | 107 | Diffuse | 220-240V | DALI | IP20 | |
| 31615 9400 B | OML50 - PRISMATIC LENS D HO 1968mm 940 B | 1968 | 90 | 4000K | 5856 | 53.5 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31615 9405 B | OML50 - PRISMATIC LENS D HO 1968mm 940 DIM5 B | 1968 | 90 | 4000K | 5856 | 53.5 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31616 9300 B | OML50 - PRISMATIC LENS D HO 2296mm 930 B | 2296 | 90 | 3000K | 6706 | 62.4 | 107 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31616 9305 B | OML50 - PRISMATIC LENS D HO 2296mm 930 DIM5 B | 2296 | 90 | 3000K | 6706 | 62.4 | 107 | Diffuse | 220-240V | DALI | IP20 | |
| 31616 9400 B | OML50 - PRISMATIC LENS D HO 2296mm 940 B | 2296 | 90 | 4000K | 6832 | 62.4 | 109 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31616 9405 B | OML50 - PRISMATIC LENS D HO 2296mm 940 DIM5 B | 2296 | 90 | 4000K | 6832 | 62.4 | 109 | Diffuse | 220-240V | DALI | IP20 | |
| 31617 9300 B | OML50 - PRISMATIC LENS D HO 2624mm 930 B | 2624 | 90 | 3000K | 7664 | 71.3 | 107 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31617 9305 B | OML50 - PRISMATIC LENS D HO 2624mm 930 DIM5 B | 2624 | 90 | 3000K | 7664 | 71.3 | 107 | Diffuse | 220-240V | DALI | IP20 | |
| 31617 9400 B | OML50 - PRISMATIC LENS D HO 2624mm 940 B | 2624 | 90 | 4000K | 7808 | 71.3 | 110 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31617 9405 B | OML50 - PRISMATIC LENS D HO 2624mm 940 DIM5 B | 2624 | 90 | 4000K | 7808 | 71.3 | 110 | Diffuse | 220-240V | DALI | IP20 | |
| 31618 9300 B | OML50 - PRISMATIC LENS D HE 656mm 930 B | 656 | 90 | 3000K | 1285 | 11.2 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31618 9305 B | OML50 - PRISMATIC LENS D HE 656mm 930 DIM5 B | 656 | 90 | 3000K | 1285 | 11.2 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31618 9400 B | OML50 - PRISMATIC LENS D HE 656mm 940 B | 656 | 90 | 4000K | 1339 | 11.2 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31618 9405 B | OML50 - PRISMATIC LENS D HE 656mm 940 DIM5 B | 656 | 90 | 4000K | 1339 | 11.2 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31619 9300 B | OML50 - PRISMATIC LENS D HE 984mm 930 B | 984 | 90 | 3000K | 1927 | 16.8 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31619 9305 B | OML50 - PRISMATIC LENS D HE 984mm 930 DIM5 B | 984 | 90 | 3000K | 1927 | 16.8 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31619 9400 B | OML50 - PRISMATIC LENS D HE 984mm 940 B | 984 | 90 | 4000K | 2008 | 16.8 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31619 9405 B | OML50 - PRISMATIC LENS D HE 984mm 940 DIM5 B | 984 | 90 | 4000K | 2008 | 16.8 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31620 9300 B | OML50 - PRISMATIC LENS D HE 1312mm 930 B | 1312 | 90 | 3000K | 2570 | 22.4 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31620 9305 B | OML50 - PRISMATIC LENS D HE 1312mm 930 DIM5 B | 1312 | 90 | 3000K | 2570 | 22.4 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31620 9400 B | OML50 - PRISMATIC LENS D HE 1312mm 940 B | 1312 | 90 | 4000K | 2677 | 22.4 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31620 9405 B | OML50 - PRISMATIC LENS D HE 1312mm 940 DIM5 B | 1312 | 90 | 4000K | 2677 | 22.4 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31621 9300 B | OML50 - PRISMATIC LENS D HE 1640mm 930 B | 1640 | 90 | 3000K | 3212 | 28.1 | 114 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31621 9305 B | OML50 - PRISMATIC LENS D HE 1640mm 930 DIM5 B | 1640 | 90 | 3000K | 3212 | 28.1 | 114 | Diffuse | 220-240V | DALI | IP20 | |
| 31621 9400 B | OML50 - PRISMATIC LENS D HE 1640mm 940 B | 1640 | 90 | 4000K | 3347 | 28.1 | 119 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31621 9405 B | OML50 - PRISMATIC LENS D HE 1640mm 940 DIM5 B | 1640 | 90 | 4000K | 3347 | 28.1 | 119 | Diffuse | 220-240V | DALI | IP20 | |
| 31622 9300 B | OML50 - PRISMATIC LENS D HE 1968mm 930 B | 1968 | 90 | 3000K | 3854 | 33.6 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31622 9305 B | OML50 - PRISMATIC LENS D HE 1968mm 930 DIM5 B | 1968 | 90 | 3000K | 3854 | 33.6 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31622 9400 B | OML50 - PRISMATIC LENS D HE 1968mm 940 B | 1968 | 90 | 4000K | 4017 | 33.6 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31622 9405 B | OML50 - PRISMATIC LENS D HE 1968mm 940 DIM5 B | 1968 | 90 | 4000K | 4017 | 33.6 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31623 9300 B | OML50 - PRISMATIC LENS D HE 2296mm 930 B | 2296 | 90 | 3000K | 4497 | 39.2 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31623 9305 B | OML50 - PRISMATIC LENS D HE 2296mm 930 DIM5 B | 2296 | 90 | 3000K | 4497 | 39.2 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31623 9400 B | OML50 - PRISMATIC LENS D HE 2296mm 940 B | 2296 | 90 | 4000K | 4686 | 39.2 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31623 9405 B | OML50 - PRISMATIC LENS D HE 2296mm 940 DIM5 B | 2296 | 90 | 4000K | 4686 | 39.2 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31624 9300 B | OML50 - PRISMATIC LENS D HE 2624mm 930 B | 2624 | 90 | 3000K | 5139 | 44.8 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31624 9305 B | OML50 - PRISMATIC LENS D HE 2624mm 930 DIM5 B | 2624 | 90 | 3000K | 5139 | 44.8 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31624 9400 B | OML50 - PRISMATIC LENS D HE 2624mm 940 B | 2624 | 90 | 4000K | 5356 | 44.8 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31624 9405 B | OML50 - PRISMATIC LENS D HE 2624mm 940 DIM5 B | 2624 | 90 | 4000K | 5356 | 44.8 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31626 9005 B | OML50 - PRISMATIC LENS D TW 984mm 950 DIM5 B | 984 | 90 | 2700K-5000K | 1938 | 20.7 | 94 | Diffuse | 220-240V | DALI | IP20 | |
| 31627 9005 B | OML50 - PRISMATIC LENS D TW 1312mm 950 DIM5 B | 1312 | 90 | 2700K-5000K | 2583 | 27.6 | 94 | Diffuse | 220-240V | DALI | IP20 | |
| 31628 9005 B | OML50 - PRISMATIC LENS D TW 1640mm 950 DIM5 B | 1640 | 90 | 2700K-5000K | 3229 | 34.5 | 94 | Diffuse | 220-240V | DALI | IP20 | |
| 31629 9005 B | OML50 - PRISMATIC LENS D TW 1968mm 950 DIM5 B | 1968 | 90 | 2700K-5000K | 3874 | 41.4 | 94 | Diffuse | 220-240V | DALI | IP20 | |
| 31630 9005 B | OML50 - PRISMATIC LENS D TW 2296mm 950 DIM5 B | 2296 | 90 | 2700K-5000K | 4520 | 48.3 | 94 | Diffuse | 220-240V | DALI | IP20 | |
| 31631 9005 B | OML50 - PRISMATIC LENS D TW 2624mm 950 DIM5 B | 2624 | 90 | 2700K-5000K | 5166 | 55.2 | 94 | Diffuse | 220-240V | DALI | IP20 | |
| 31653 9300 B | OML50 - PRISMATIC LENS D HO CORNER R420 90° 930 B | 660 | 90 | 3000K | 1916 | 17.8 | 108 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31653 9305 B | OML50 - PRISMATIC LENS D HO CORNER R420 90° 930 DIM5 B | 660 | 90 | 3000K | 1916 | 17.8 | 108 | Diffuse | 220-240V | DALI | IP20 | |
| 31653 9400 B | OML50 - PRISMATIC LENS D HO CORNER R420 90° 940 B | 660 | 90 | 4000K | 1952 | 17.8 | 110 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31653 9405 B | OML50 - PRISMATIC LENS D HO CORNER R420 90° 940 DIM5 B | 660 | 90 | 4000K | 1952 | 17.8 | 110 | Diffuse | 220-240V | DALI | IP20 | |
| 31655 9300 B | OML50 - PRISMATIC LENS D HE CORNER R420 90° 930 B | 660 | 90 | 3000K | 1285 | 11.2 | 115 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31655 9305 B | OML50 - PRISMATIC LENS D HE CORNER R420 90° 930 DIM5 B | 660 | 90 | 3000K | 1285 | 11.2 | 115 | Diffuse | 220-240V | DALI | IP20 | |
| 31655 9400 B | OML50 - PRISMATIC LENS D HE CORNER R420 90° 940 B | 660 | 90 | 4000K | 1339 | 11.2 | 120 | Diffuse | 220-240V | niet dimbaar | IP20 | |
| 31655 9405 B | OML50 - PRISMATIC LENS D HE CORNER R420 90° 940 DIM5 B | 660 | 90 | 4000K | 1339 | 11.2 | 120 | Diffuse | 220-240V | DALI | IP20 | |
| 31657 9005 B | OML50 - PRISMATIC LENS D TW CORNER R420 90° 950 DIM5 B | 660 | 90 | 2700K-5000K | 1291 | 13.8 | 94 | Diffuse | 220-240V | DALI | IP20 |
Optica
| Referentienummer | ||
|---|---|---|
| 31000 0400 | OML50 - PC SBL PROFILE | |
| 31300 0440 | OML50 - PC SBL CORNER R840 45° | |
| 31300 0450 | OML50 - PC SBL CORNER R1675 45° | |
| 31300 0460 | OML50 - PC SBL CORNER R2925 45° | |
| 31300 0470 | OML50 - PC SBL CORNER R420 90° | |
| 31300 0480 | OML50 - PC SBL CORNER R840 90° | |
| 31300 0490 | OML50 - PC SBL CORNER R1675 90° |
Extra componenten
| Referentienummer | ||
|---|---|---|
| 31217 0015 ANO | OML50 - PRESENCE AND DAYLIGHT SENSOR DALI ANO | |
| 31217 0015 B | OML50 - PRESENCE AND DAYLIGHT SENSOR DALI B | |
| 31217 0015 W | OML50 - PRESENCE AND DAYLIGHT SENSOR DALI W |
Vervolledigen
Gebruik de informatie uit onderstaande lijst om je product te vervolledigen
requirement
Optica
| Productnaam | ||
|---|---|---|
 | OML50 - PC SBL PROFILE | Voeg toe aan pinlijst |
Inspirerende projecten
Mytilineos HQ (GR)
