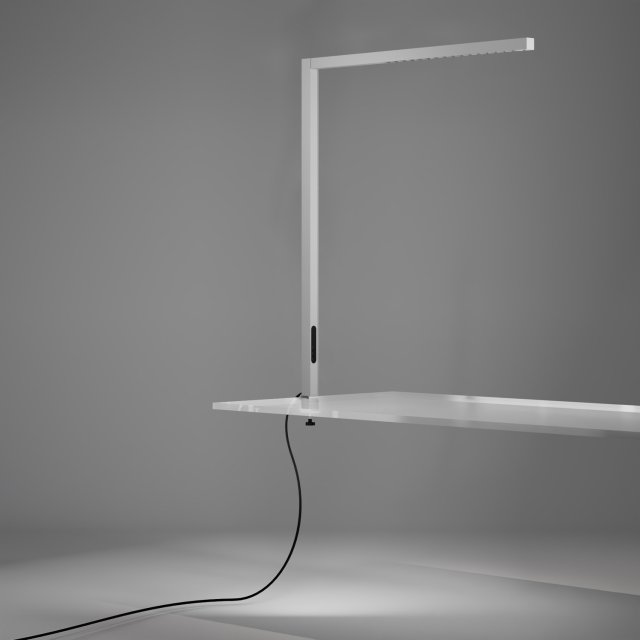

INFORM 40 SQ T1 CLAMP-ON PDS DOWN-UP TW 950 A-B
Nuovo

Generale

Ambiente
Interni
CCT
2700K-5000K
Fissaggio
Tavolo
Montaggio
Clamp-on
IP
IP20
Peso (kg)
10
Orientabilità
non regolabile
Informazione
INCL.1 x CABLE 3 x 0.75mm² 2m + CEE 7/7 plug 3 control buttons : 1: UP ON/OFF + DIM 2: RECALL PRESENCE LEVEL + CHANGE CCT 3: DOWN+UP AUTO (sensor) / OFF + DIM INCL.PRESENCE & DAYLIGHT SENSOR PDS SETTINGS BY BLUETOOTH APP UGR ≤ 13

Elettrico

Tensione Elettrica
220-240V / 50-60Hz
Classe di isolamento
I
Tipo di dimmerazione
con pulsante di controllo sull'apparecchio
Classe energetica
D

Fonte di luce

Sorgente luminosa
LED
Informazioni LED
DOWN @ 2700K: LED cluster 14,5W / CRI>90 / 2700K-5000K / 2011lm UP @ 2700K: LED cluster 48W / CRI>90 / 2700K-5000K / 7354lm OR DOWN @ 5000K: LED cluster 14,5W / CRI>90 / 2700K-5000K / 2245lm UP @ 5000K: LED cluster 48W / CRI>90 / 2700K-5000K / 8218lm
SDCM
SDCM3
Gruppo di rischio
RG1
LM80
L80 > 60000
Specifiche tecniche (Sorgente luminosa)
DOWN @ 2700K: 2011lm // 14,5W // 139lm/W UP @ 2700K: 7354lm // 48W // 153lm/W OR DOWN @ 5000K: 2245lm // 14,5W // 155lm/W UP @ 5000K: 8218lm // 48W // 171lm/W
Specifiche tecniche (Apparecchio di illuminazione)
DOWN @ 2700K: 1184lm // 16,7W // 71lm/W UP @ 2700K: 6810lm // 55,2W // 123lm/W OR DOWN @ 5000K: 1322lm // 16,7W // 79lm/W UP @ 5000K: 7610lm // 55,2W // 138lm/W

Aggiuntivo

Note
Opzioni
INFORM 40 SQ F/T SWARM SENSOR
I dati tecnici sono stati misurati in condizioni ottimali.
