BOXY

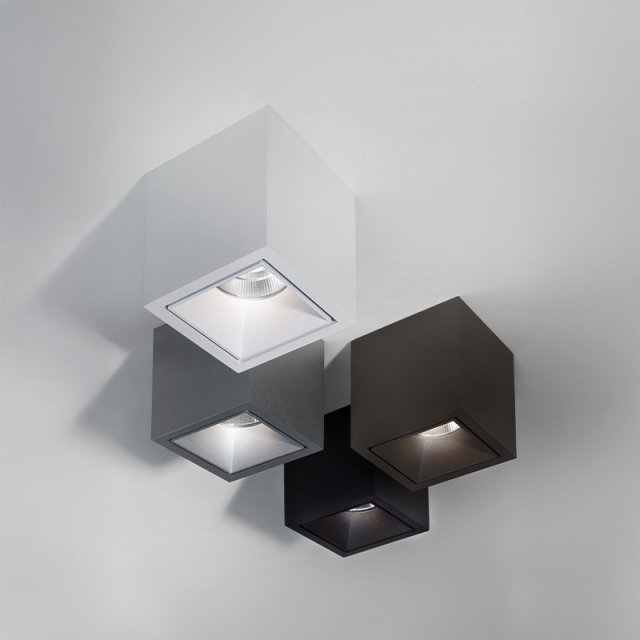

What once began as a cubic luminaire is now an elaborate family of surface mounted and pendant luminaires, both cube and cylinder shapes. Though different in shape, still uniform in look, as both shapes have a deeper recessed LED module with a conical, colored insert in front. While the deeper recessed LED module reduces the glare, the choice in color creates possibilities for playful and attractive lighting solutions.

Alongside the different shapes, this family offers indoor and outdoor luminaires, a perfect solution when recessing is not an option.

Lumens: 601 lm - 3023 lm

Wattages: 7 W - 27 W

Beam range: 20° / 33° / 37°

CCT range: Halogen White (+2700K) / Warm White (+3000K) / Warm White (+3500K)

Add to pinlist

Find your product

Find your product within this family

9Products

BOXY

Add to list

Petite surface mounted square integral driver box (IP20) for GU10 / PAR16. Mud kit or coverplate optional. GU10 / PAR16 not included. BXY

Spec sheet

BOXY L+

Add to list

Petite surface mounted cubic integral driver box (IP20) with single or double deeply recessed LED source. Mud kit or coverplate required. Integral FE ELV or 0-10V driver. (Carree ST L for recessed.)

Lumens: 601 lm - 651 lm

Wattages: 7 W

Beam range: 33°

CCT range: Halogen White (+2700K) / Warm White (+3000K) / Warm White (+3500K)

Spec sheet

BOXY 2 L+

Add to list

BOXY SQUARE WITH TUBE - DOUBLE HEAD - IP RATED

Lumens: 1201 lm - 1302 lm

Wattages: 13 W

Beam range: 33°

CCT range: Halogen White (+2700K) / Warm White (+3000K) / Warm White (+3500K)

Spec sheet

BOXY R

Add to list

Petite surface mounted round integral driver box (IP53) with deeply recessed LED source. Option for adjustable (OK) source. Mud kit or coverplate required. Integral FE ELV driver.

Lumens: 815 lm - 883 lm

Wattages: 10 W

Beam range: 33°

CCT range: Halogen White (+2700K) / Warm White (+3000K) / Warm White (+3500K)

Spec sheet

BOXY R OK

Add to list

BOXY ROUND ADJUSTABLE

Lumens: 743 lm - 806 lm

Wattages: 10 W

Beam range: 33°

CCT range: Halogen White (+2700K) / Warm White (+3000K) / Warm White (+3500K)

Spec sheet

BOXY R Hi

Add to list

Surface mounted round integral driver box (IP20) for GU10 / PAR16. Mud kit or coverplate required. GU10 / PAR16 not included.

Spec sheet

BOXY XL R

Add to list

Surface mounted round integral driver box (IP20) with high-powered recessed LED source. Integral FE ELV or 0-10V driver.

Lumens: 2636 lm - 2927 lm

Wattages: 27 W

Beam range: 20° / 37°

CCT range: Halogen White (+2700K) / Warm White (+3000K) / Warm White (+3500K)

Spec sheet

BOXY XL S

Add to list

Surface mounted square integral driver box (IP20) with high-powered recessed LED source. Integral FE ELV or 010V driver.

Lumens: 2647 lm - 3023 lm

Wattages: 27 W

Beam range: 20° / 37°

CCT range: Halogen White (+2700K) / Warm White (+3000K) / Warm White (+3500K)

Spec sheet

BOXY XL R C

Add to list

Cylindrical pendant with high-powered recessed LED source. Integral FE ELV driver.

Lumens: 1921 lm - 2133 lm

Wattages: 19 W

Beam range: 20° / 37°

CCT range: Halogen White (+2700K) / Warm White (+3000K) / Warm White (+3500K)

Spec sheet

Interesting projects

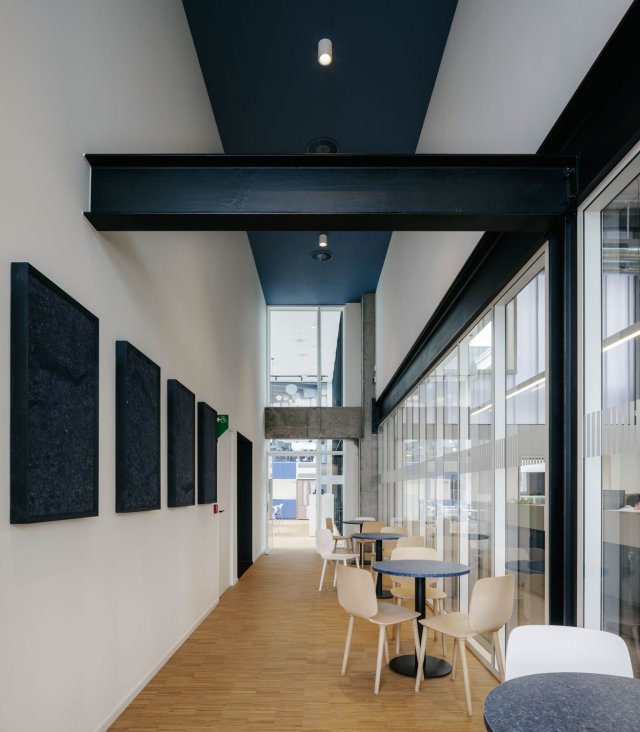

Pipedrive offices (CZ)
