New

OMNILINER 50 CT P1312 SBL HO 940 DIM5 ANO

Alu Anodized - 31952 9405 ANO

CRI

CCT

General

Location	Indoor
CCT	4000K
Fixation	Ceiling
Installation	Suspended
IP	IP20
Weight (kg)	0
Adjustability	non adjustable
Information	INCL.DIMMABLE LED POWER SUPPLY (DALI-2 standard) INCL.48V TRACK 100W INCL.2 x CABLE SUSPENSION SINGLE AUTO. 3,0m INCL.1 x CABLE 5 x 0.75mm² INCL.CABLE BASE

Electrical

Voltage	220-240V / 0\|50-60Hz
Class	I
Dimming type	DALI
Energy class	D

Lightsource

Light source	LED
LED information	LED cluster 32,6W / CRI>90 (R9: 50) / 4000K / 5286lm
TM-30 Values	Rf: 90 / Rg: 101
SDCM	SDCM3
Riskgroup	RG1
LM80	L80 > 60000
LED technics (light source)	5286lm // 32,6W // 162lm/W
LED technics (luminaire)	4272lm // 37,5W // 114lm/W

Additional

Requirements

SPY FOR OMNILINER TRACK

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Spec sheet

Finish your specifications

Use the information listed below to complete your product

Product name	CRI	CCT	Luminaire lm	Luminaire power	Efficacy (min.)	Beam angle	Adjustability	Voltage	Dimming type	IP
OML50 CT - SPY 39 FOCUS 930 DIM5 B	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist

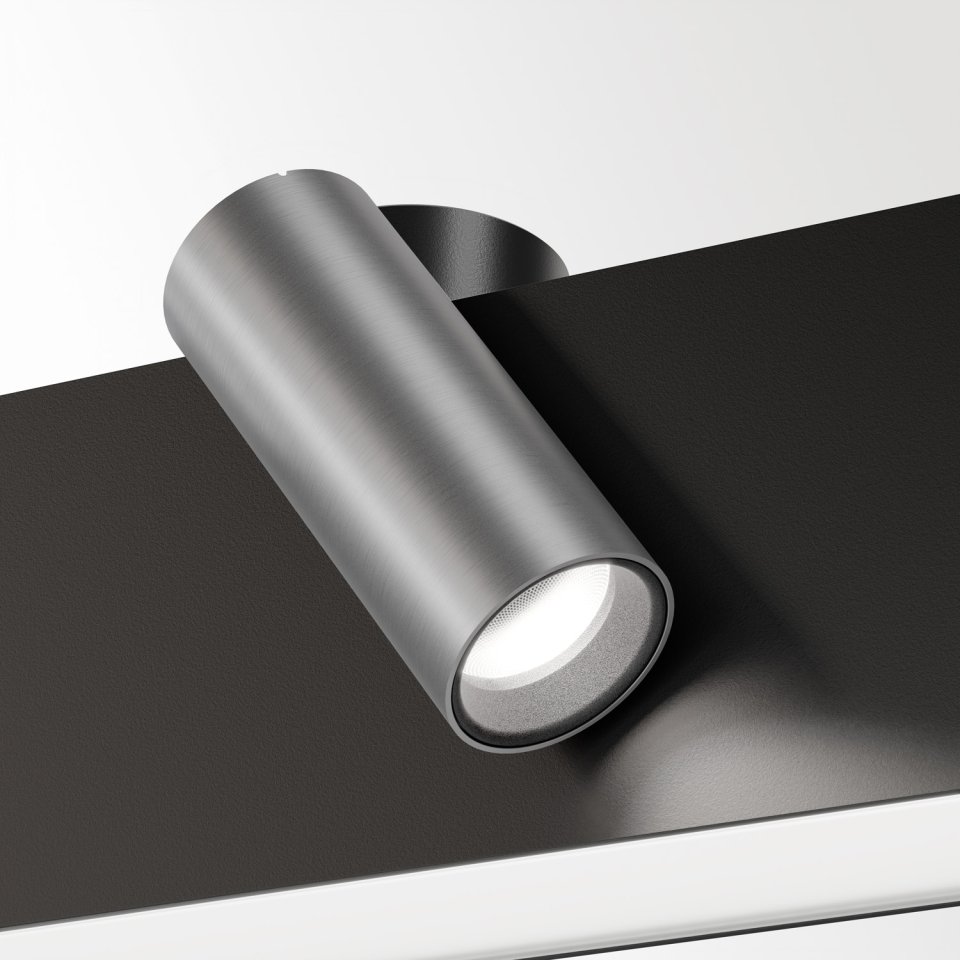

OML50 CT - SPY 39 FOCUS 930 DIM5 BRA	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 930 DIM5 BRAT	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 930 DIM5 BRCU	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 930 DIM5 BRG	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist

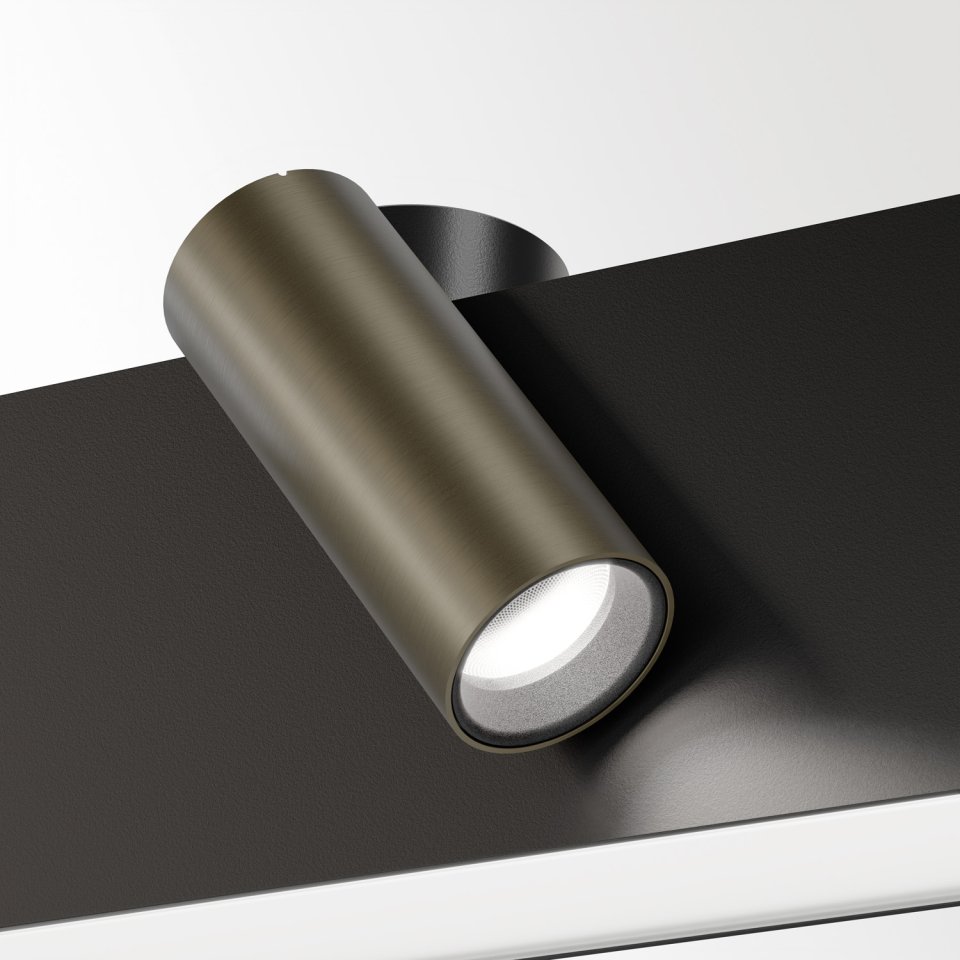

OML50 CT - SPY 39 FOCUS 930 DIM5 BROB	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 930 DIM5 FBR	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist

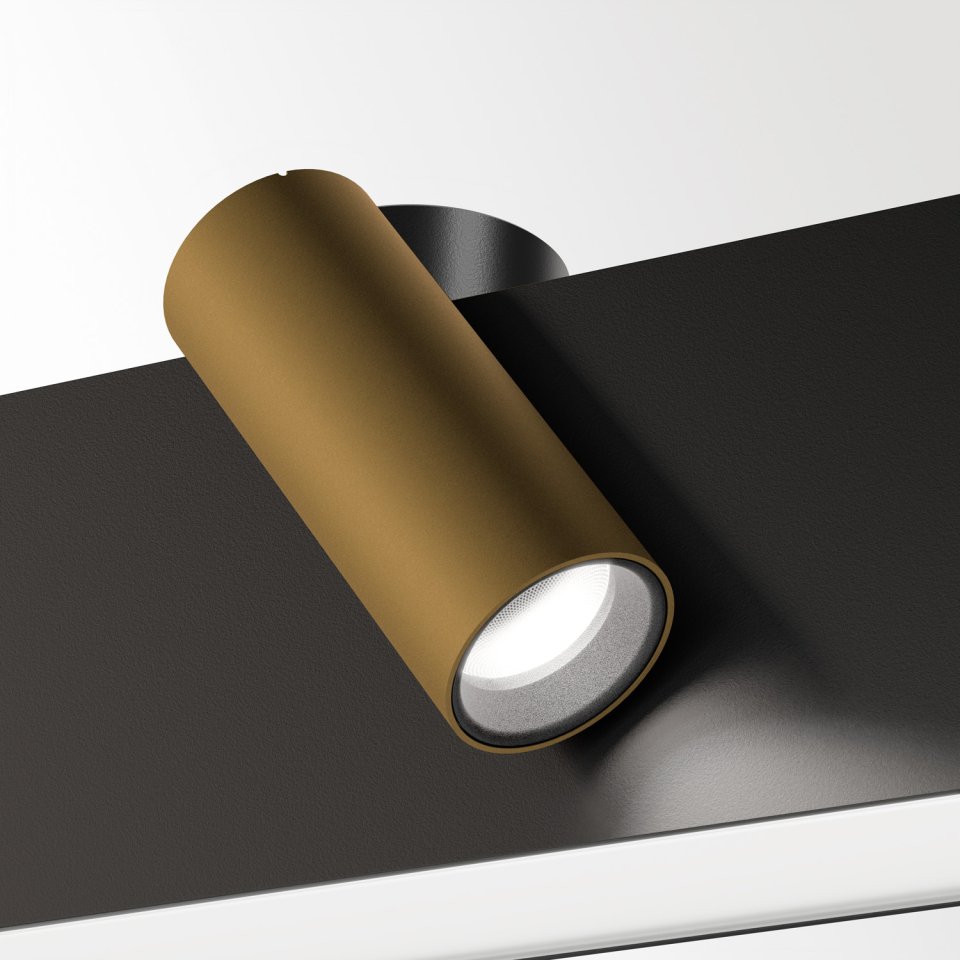

OML50 CT - SPY 39 FOCUS 930 DIM5 FG	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 930 DIM5 GC	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 930 DIM5 W	90	3000K	303	9.9	31	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 B	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 BRA	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 BRAT	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 BRCU	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 BRG	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 BROB	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 FBR	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 FG	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 GC	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 FOCUS 940 DIM5 W	90	4000K	321	9.9	32	15-45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93020 DIM5 B	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93020 DIM5 BRA	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist

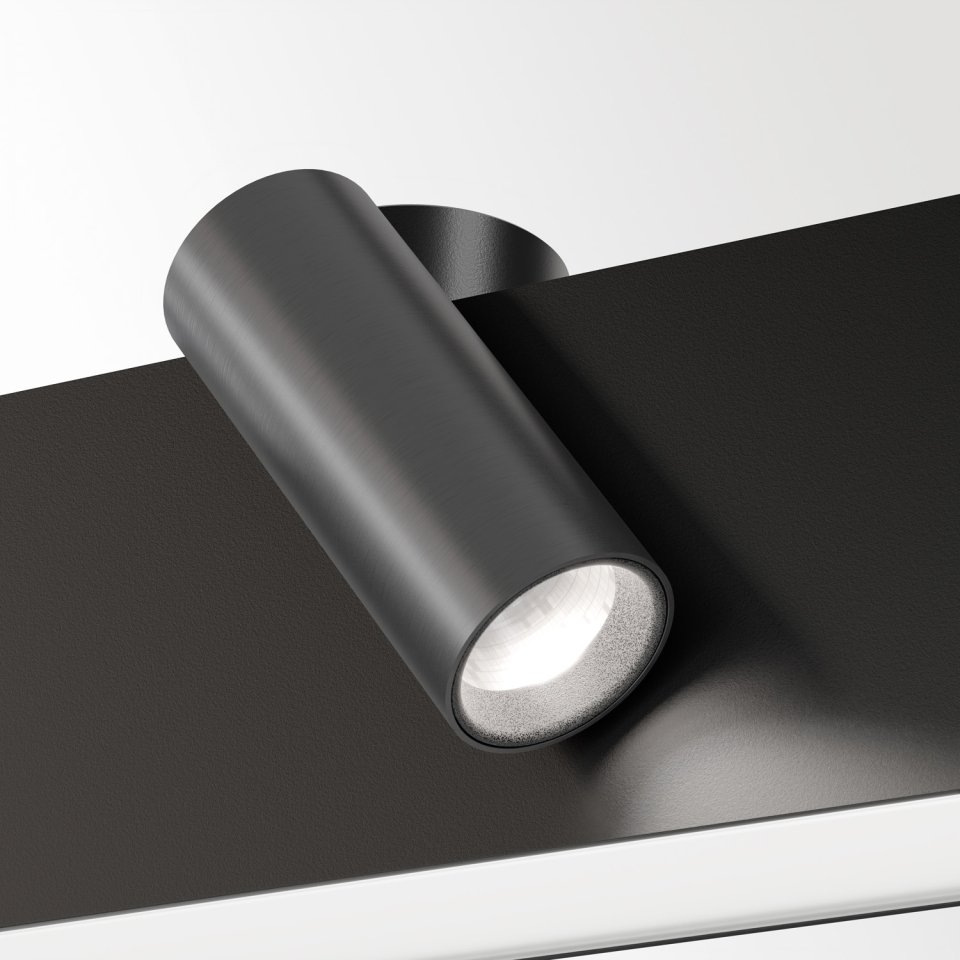

OML50 CT - SPY 39 93020 DIM5 BRAT	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93020 DIM5 BRCU	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93020 DIM5 BRG	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist

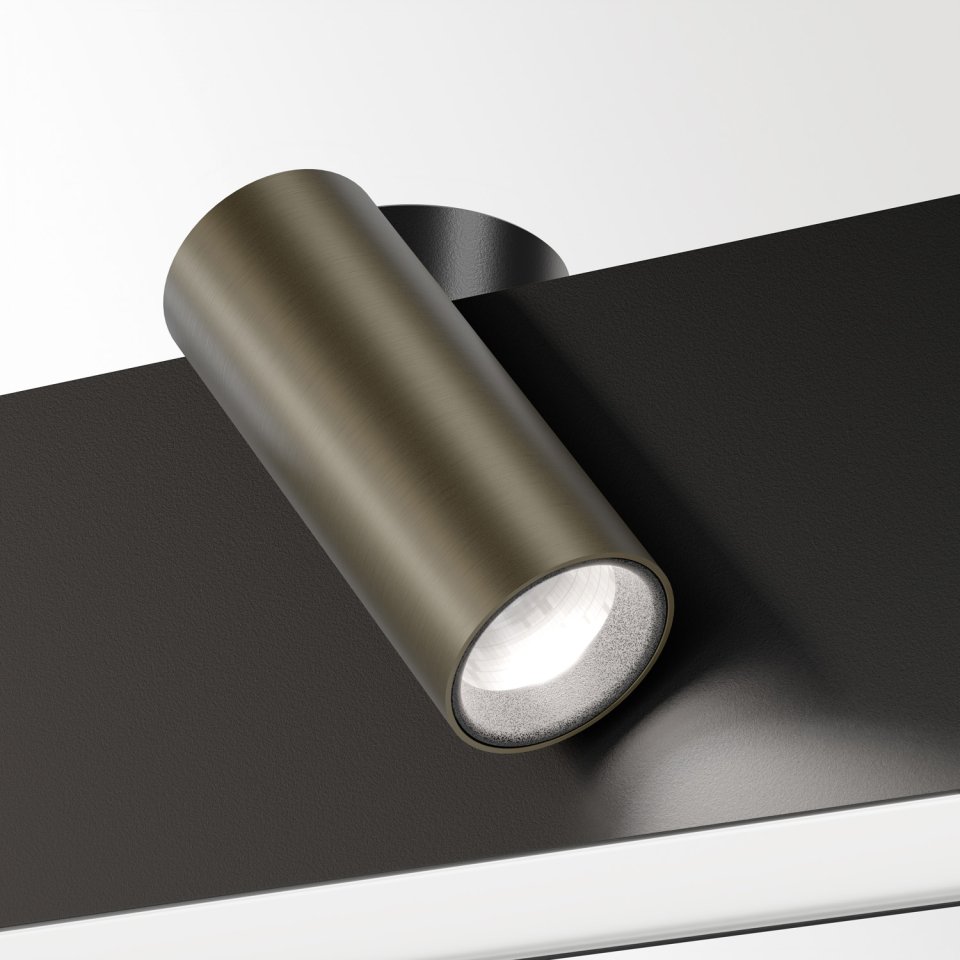

OML50 CT - SPY 39 93020 DIM5 BROB	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist

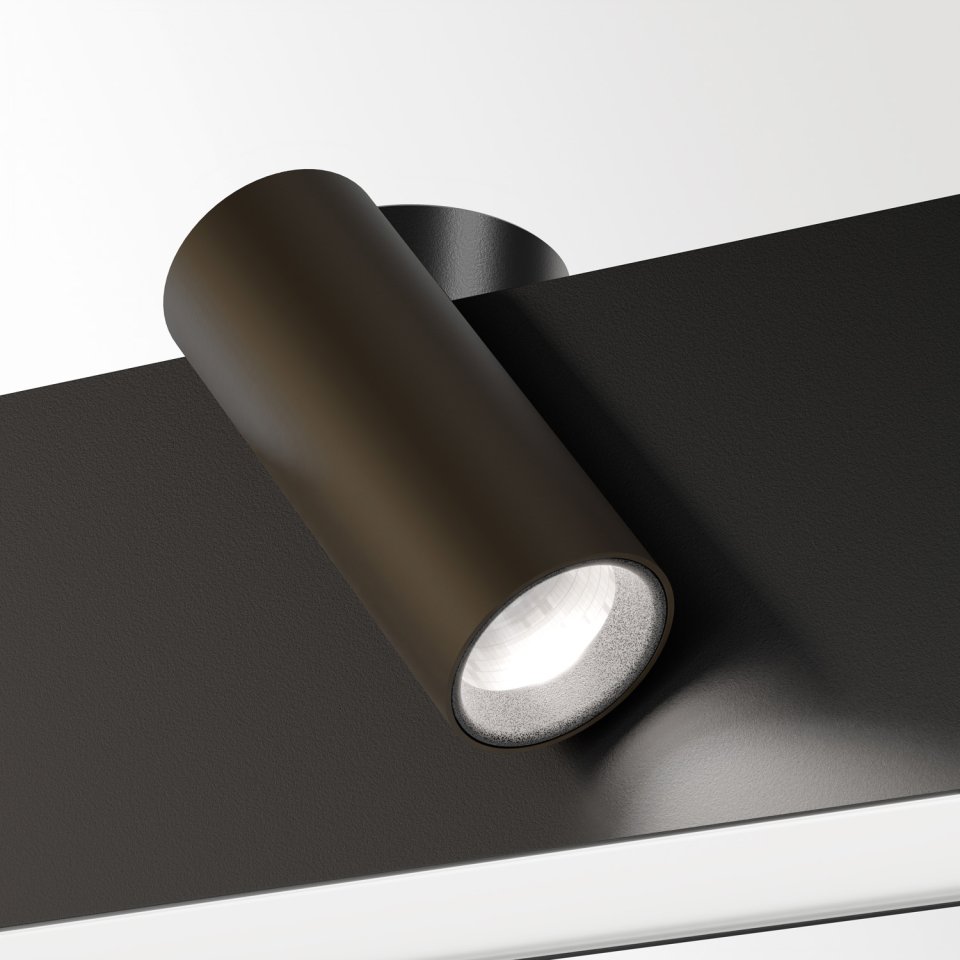

OML50 CT - SPY 39 93020 DIM5 FBR	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93020 DIM5 FG	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93020 DIM5 GC	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93020 DIM5 W	90	3000K	888	9.9	90	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 B	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 BRA	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 BRAT	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 BRCU	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 BRG	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 BROB	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 FBR	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 FG	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 GC	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 93040 DIM5 W	90	3000K	883	9.9	89	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 B	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 BRA	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 BRAT	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 BRCU	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 BRG	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 BROB	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 FBR	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 FG	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 GC	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94020 DIM5 W	90	4000K	939	9.9	95	20	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 B	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 BRA	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 BRAT	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 BRCU	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 BRG	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 BROB	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 FBR	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 FG	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 GC	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 39 94040 DIM5 W	90	4000K	934	9.9	94	40	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 93018 DIM5 B	90	3000K	2007	28.8	70	18	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 93018 DIM5 W	90	3000K	2007	28.8	70	18	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 93030 DIM5 B	90	3000K	1937	28.8	67	30	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 93030 DIM5 W	90	3000K	1937	28.8	67	30	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 93045 DIM5 B	90	3000K	1929	28.8	67	45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 93045 DIM5 W	90	3000K	1929	28.8	67	45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 94018 DIM5 B	90	4000K	2124	28.8	74	18	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 94018 DIM5 W	90	4000K	2124	28.8	74	18	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 94030 DIM5 B	90	4000K	2049	28.8	71	30	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 94030 DIM5 W	90	4000K	2049	28.8	71	30	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 94045 DIM5 B	90	4000K	2041	28.8	71	45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
OML50 CT - SPY 66 94045 DIM5 W	90	4000K	2041	28.8	71	45	0-85°/355°	48V-DC	DALI	IP20	Add to pinlist
