New
OMNILINER 50 C P1312 SBL DOWN-UP HE 930 DIM5 B

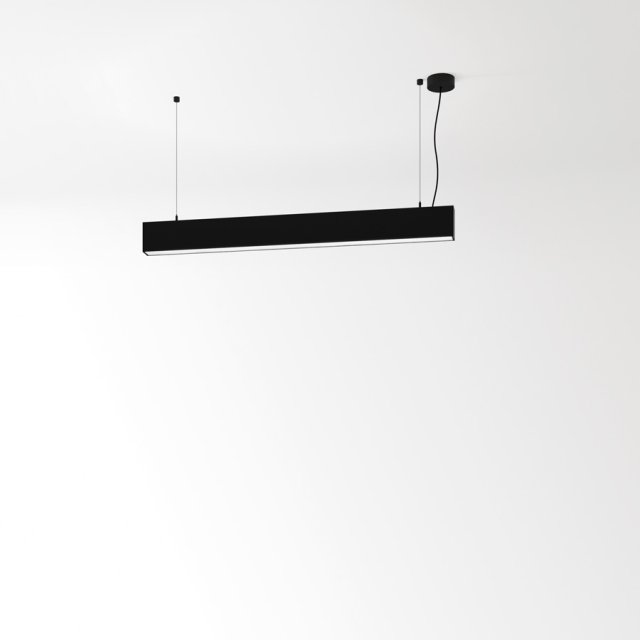

OMNILINER 50 WITH OPAL DIFFUSER PENDANT DOWN-UP
Black - 31931 9305 B
CRI
CCT
General
| Location | Indoor |
| Fixation | Ceiling |
| Installation | Suspended |
| IP | IP20 |
| Weight (kg) | 0 |
| Adjustability | non adjustable |
| Information | INCL.DIMMABLE LED POWER SUPPLY
(DALI-2 standard)
DOWN & UP on separate DALI channels
INCL.2 x CABLE SUSPENSION SINGLE AUTO. 3,0m
INCL.1 x CABLE 5 x 0.75mm²
INCL.CABLE BASE |
Electrical
| Class | I |
| Dimming type | DALI |
| Energy class | D |
Lightsource
| Light source | LED |
| LED information | DOWN: LED cluster 22,3W / CRI>90 (R9: 50) / 3000K / 3648lm
UP: LED cluster 16,3W / CRI>90 (R9: 50) / 3000K / 2534lm |
| TM-30 Values | Rf: 92 / Rg: 100 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L80 > 60000 |
| LED technics (light source) | DOWN: 3648lm // 22,3W // 164lm/W
UP: 2534lm // 16,3W // 155lm/W |
| LED technics (luminaire) | DOWN: 2948lm // 25,6W // 115lm/W
UP: 2051lm // 18,7W // 109lm/W |
Technical data was measured in optimum conditions.
