SRL 85 - PROFILE ANO

SRL 85 - PROFILE ANO

Alu Eloxiert - 389 03 00 00 ANO
Maßanfertigung

Nutzen Sie unseren Profil-Builder für Produkte nach Maß

made_to_measure_link
In PinList hinzufügen
Inspirierende Projekte

Allgemein

Anwendungsbereich
Innenbeleuchtung
Befestigung
Decke, Wand
Installation
Einbau
Form des Ausschnitts
rechteck
Größe des Ausschnitts (mm)
78 x (L + 5)
Min. Einbautiefe (mm)
140
Dicke der Befestigungsfläche (mm)
max.35
Gewicht (kg)
2.1
Information
MAX.L / PROFILE : 6m

Elektrisch

Klasse
I
Die technischen Daten wurden unter optimalen Bedingungen gemessen.

Download

Die folgenden Downloads sind verfügbar:

Profile

Referenznummer
389 03 00 00 ANOSRL 85 - PROFILE ANO
Installation
Datenblatt
389 03 00 00 WSRL 85 - PROFILE W
Installation
Datenblatt

Endkappen

ReferenznummerEinheit
389 03 03 01 ANOSRL 85 - END CAP ANO1 pc
389 03 03 01 WSRL 85 - END CAP W1 pc

Eckverbinder

Referenznummer
389 03 06 01SRL 85/TR - CORNER 180°
389 03 06 06SRL 85/TR - CORNER 90°

Befestigungskomponenten

Referenznummer
389 03 14 01SRL 85 - INSIDE CLIP

LED Module

ReferenznummerEnergieklasseLumen outputLumen
389 611 923SRL - 1 LED 92740F587417
Installation
Datenblatt
389 611 933SRL - 1 LED 93040F587417
Installation
Datenblatt
389 612 923SRL - 2 LED 92740F1174834
Installation
Datenblatt
389 612 933SRL - 2 LED 93040F1174834
Installation
Datenblatt

Jack Verbindungsteile

Referenznummer
18696 9220 BSPY 52 M10 92720 B
Installation
Datenblatt
18696 9220 WSPY 52 M10 92720 W
Installation
Datenblatt
18696 9230 BSPY 52 M10 92745 B
Installation
Datenblatt
18696 9230 WSPY 52 M10 92745 W
Installation
Datenblatt
18696 9240 BSPY 52 M10 92730 B
Installation
Datenblatt
18696 9240 WSPY 52 M10 92730 W
Installation
Datenblatt
18696 9320 BSPY 52 M10 93020 B
Installation
Datenblatt
18696 9320 WSPY 52 M10 93020 W
Installation
Datenblatt
18696 9330 BSPY 52 M10 93045 B
Installation
Datenblatt
18696 9330 WSPY 52 M10 93045 W
Installation
Datenblatt
18696 9340 BSPY 52 M10 93030 B
Installation
Datenblatt
18696 9340 WSPY 52 M10 93030 W
Installation
Datenblatt
389 90 01SRL - M10 MIDISPY / SPY 1
389 90 01 ED1SRL - M10 MIDISPY / SPY 1 DIM1
389 90 01 ED5SRL - M10 MIDISPY / SPY 1 DIM5
389 90 02SRL - M10 MIDISPY / SPY 2
389 90 02 ED1SRL - M10 MIDISPY / SPY 2 DIM1
389 90 02 ED5SRL - M10 MIDISPY / SPY 2 DIM5

LED Module linear ( down )

ReferenznummerLänge des ModulsFarbtemperaturLumen outputLumenEnergieklasseStromspannungArt der Dimmung
389 610 12 ESRL - LED ARRAY 1 x 12W DOWN5603000K19011478D220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 610 12 ED1SRL - LED ARRAY 1 x 12W DOWN DIM15603000K19011478D220-240V / 50-60Hz1-10V
Installation
Datenblatt
389 610 12 ED2SRL - LED ARRAY 1 x 12W DOWN DIM25603000K19011478D220-240V / 50-60HzDALI / Taster
Installation
Datenblatt
389 610 18 ESRL - LED ARRAY 1 x 18W DOWN8403000K28512217D220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 610 18 ED1SRL - LED ARRAY 1 x 18W DOWN DIM18403000K28512217D220-240V / 50-60Hz1-10V
Installation
Datenblatt
389 610 18 ED2SRL - LED ARRAY 1 x 18W DOWN DIM28403000K28512217D220-240V / 50-60HzDALI / Taster
Installation
Datenblatt
389 610 212 ESRL - LED ARRAY 2 x 12W CORNER DOWN5633000K38022957D220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 610 212 ED1SRL - LED ARRAY 2 x 12W CORNER DOWN DIM15633000K38022957D220-240V / 50-60Hz1-10V
Installation
Datenblatt
389 610 212 ED2SRL - LED ARRAY 2 x 12W CORNER DOWN DIM25633000K38022957D220-240V / 50-60HzDALI / Taster
Installation
Datenblatt
389 610 24 ESRL - LED ARRAY 1 x 24W DOWN11203000K38022957D220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 610 24 ED1SRL - LED ARRAY 1 x 24W DOWN DIM111203000K38022957D220-240V / 50-60Hz1-10V
Installation
Datenblatt
389 610 24 ED2SRL - LED ARRAY 1 x 24W DOWN DIM211203000K38022957D220-240V / 50-60HzDALI / Taster
Installation
Datenblatt
389 610 26 18 ED5SRL - LED ARRAY 1 x 21W DOWN TUNABLE WHITE DIM58402500K-5700K22621791E220-240V / 50-60HzDALI
Installation
Datenblatt
389 610 26 24 ED5SRL - LED ARRAY 1 x 28W DOWN TUNABLE WHITE DIM511202500K-5700K30152388E220-240V / 50-60HzDALI
Installation
Datenblatt
389 610 26 30 ED5SRL - LED ARRAY 1 x 35W DOWN TUNABLE WHITE DIM514002500K-5700K37692985E220-240V / 50-60HzDALI
Installation
Datenblatt
389 610 26 36 ED5SRL - LED ARRAY 1 x 42W DOWN TUNABLE WHITE DIM516802500K-5700K45233582E220-240V / 50-60HzDALI
Installation
Datenblatt
389 610 26 48 ED5SRL - LED ARRAY 1 x 56W DOWN TUNABLE WHITE DIM522402500K-5700K60314776E220-240V / 50-60HzDALI
Installation
Datenblatt
389 610 30 ESRL - LED ARRAY 1 x 30W DOWN14003000K47523696D220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 610 30 ED1SRL - LED ARRAY 1 x 30W DOWN DIM114003000K47523696D220-240V / 50-60Hz1-10V
Installation
Datenblatt
389 610 30 ED2SRL - LED ARRAY 1 x 30W DOWN DIM214003000K47523696D220-240V / 50-60HzDALI / Taster
Installation
Datenblatt
389 610 36 ESRL - LED ARRAY 1 x 36W DOWN16803000K57024434D220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 610 36 ED1SRL - LED ARRAY 1 x 36W DOWN DIM116803000K57024434D220-240V / 50-60Hz1-10V
Installation
Datenblatt
389 610 36 ED2SRL - LED ARRAY 1 x 36W DOWN DIM216803000K57024434D220-240V / 50-60HzDALI / Taster
Installation
Datenblatt
389 610 48 ESRL - LED ARRAY 1 x 48W DOWN22403000K76035913D220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 610 48 ED1SRL - LED ARRAY 1 x 48W DOWN DIM122403000K76035913D220-240V / 50-60Hz1-10V
Installation
Datenblatt
389 610 48 ED2SRL - LED ARRAY 1 x 48W DOWN DIM222403000K76035913D220-240V / 50-60HzDALI / Taster
Installation
Datenblatt
389 613 06 ESRL - LED ARRAY 1 x 06W DOWN HE5603000K984705C220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 613 09 ESRL - LED ARRAY 1 x 09W DOWN HE8403000K14761058C220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 613 12 ESRL - LED ARRAY 1 x 12W DOWN HE11203000K19681411C220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 613 15 ESRL - LED ARRAY 1 x 15W DOWN HE14003000K24601763C220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 613 18 ESRL - LED ARRAY 1 x 18W DOWN HE16803000K29522116C220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 613 206 ESRL - LED ARRAY 2 x 06W CORNER DOWN HE5633000K19681411C220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt
389 613 24 ESRL - LED ARRAY 1 x 24W DOWN HE22403000K39362821C220-240V / 50-60Hznicht dimmbar
Installation
Datenblatt

Optik

Referenznummer
389 02 05 SBLSRL - PC SBL PROFILE
389 02 06 PRSRL - PC PRISMATIC PROFILE

Spezielle Komponenten

Referenznummer
300 90 019INFRARED PROGRAMMING UNIT FOR AMBIANT LIGHT AND MOTION SENSOR
389 92 00 ED2 ANOSRL - AMBIENT LIGHT AND MOTION SENSOR DIM2 ANO
389 92 00 ED2 BSRL - AMBIENT LIGHT AND MOTION SENSOR DIM2 B
389 92 00 ED2 WSRL - AMBIENT LIGHT AND MOTION SENSOR DIM2 W

Notstrom Einheit

ReferenznummerKlasseNetzspannungArt der Dimmung
389 610 24 E EM1SRL - LED ARRAY 1 x 24W DOWN EMERGENCY UNIT 1HI220-240Vnicht dimmbar
Installation
389 610 24 ED1 EM1SRL - LED ARRAY 1 x 24W DOWN DIM1 EMERGENCY UNIT 1HI220-240V1-10V
Installation
389 610 24 ED2 EM1SRL - LED ARRAY 1 x 24W DOWN DIM2 EMERGENCY UNIT 1HI220-240VDALI / Taster
Installation
389 613 12 E EM1SRL - LED ARRAY 1 x 12W DOWN HE EMERGENCY UNIT 1HI220-240Vnicht dimmbar
Installation

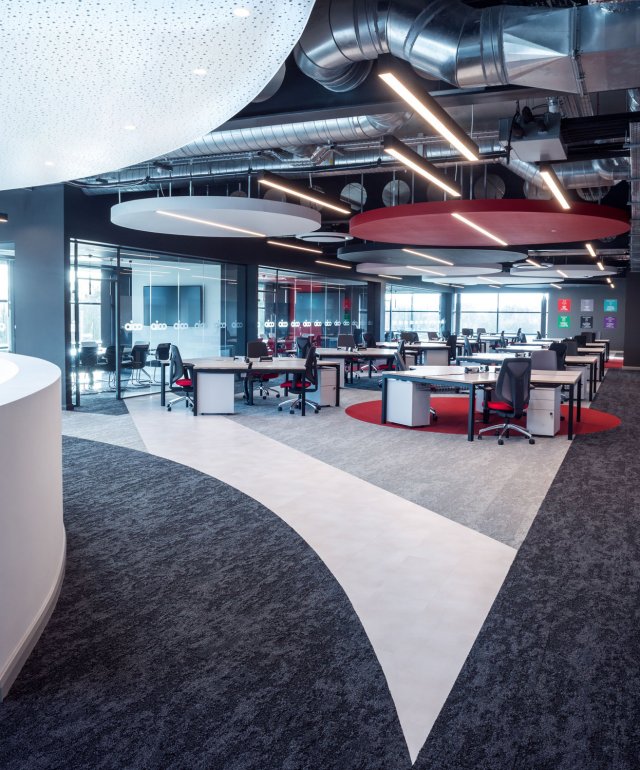

Interessante Projekte
