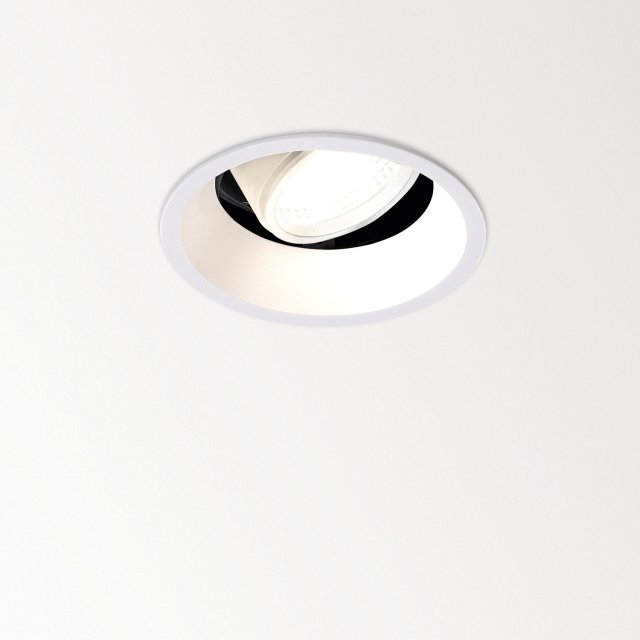

ENTERO RD-M X 93010 FW
ENTERO ROUND MEDIUM FOR OUTDOOR
Full white - 28442 9310 FW
CRI
Beam angle
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 92 |
| Min. recessed depth (mm) | 140 |
| Thickness of mounting surface (mm) | max.16 |
| IP | IP65 |
| IK | IK06 |
| Weight (kg) | 0.49 |
| Adjustability | 0° to 20° swiveling, 355° rotatable |
| Information | LENS SP-10°
EXCL.LED POWER SUPPLY 350-700mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | CB, ENEC, EPD |
Lightsource
| Light source | LED |
| LED information | LED array 3,9-8,2W / CRI>90 (R9: 55) / 3000K / 385-677lm |
| TM-30 Values | rf: 92 / Rg: 98 |
| SDCM | SDCM2 |
| Riskgroup | RG2 (threshold 0,6m) |
| LM80 | L90B10 > 41000 |
| LED technics (light source) | 677lm // 8,2W // 83lm/W |
| LED technics (luminaire) | 553lm // 9,4W // 59lm/W |
Additional
| Requirements | LED POWER SUPPLY 350 / 500 / 700mA-DC DIM |
| Options | ENTERO RD-M MOUNTING SET S2 |
| Accessories | ENTERO M HONEYCOMB |
Technical data was measured in optimum conditions.
