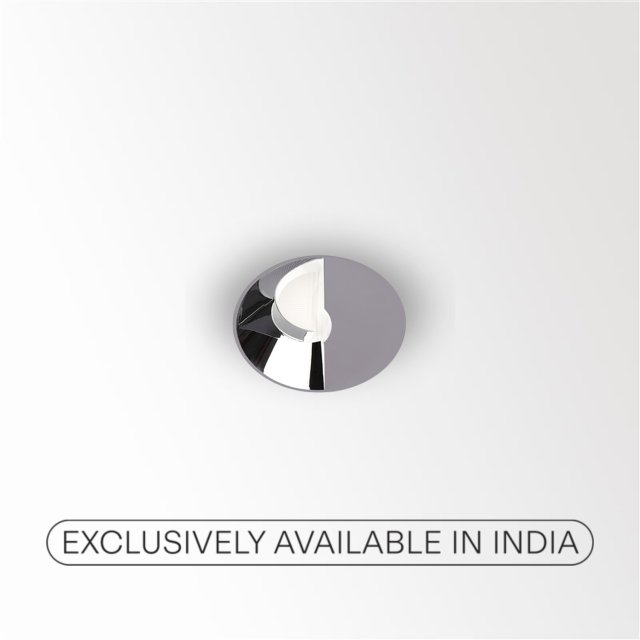

COMPO S WALLWASH HP TW 965 C
COMPO SMALL HP WALL WASH
Chromed - 9 15725 9000 C
Beam angle
CRI
CCT
General
| Location | Indoor |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 120 |
| Min. recessed depth (mm) | 114 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP20 |
| Weight (kg) | 0.18 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | BIS |
Lightsource
| Light source | LED |
| LED information | LED array 7,4W / CRI>90 / 2700K-6500K / 760lm |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 56000 |
| LED technics (light source) | 760lm // 7,4W // 90lm/W |
| LED technics (luminaire) | 288lm // 8,5W // 34lm/W |
Additional
| Requirements | LED POWER SUPPLY 200 mA - DC |
| Options |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
Finish your specifications
Use the information listed below to complete your product
requirement
Mounting kits
| Product name | Cutout shape | Cutout size | Thickness of mounting surface | ||
|---|---|---|---|---|---|
 | MOUNTING KIT COMPO S TRIM B | round | 55 | max.25 | Add to pinlist |
| | MOUNTING KIT COMPO S TRIM W | round | 55 | max.25 | Add to pinlist |
 | MOUNTING KIT COMPO S TRIMLESS | round | 55 | max.25 | Add to pinlist |
LED Power supply
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | ||
|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTIPOWER 12W DALI DT8 200mA | 220-240V | II | - | IP20 | rectangle | - | Add to pinlist |
