New

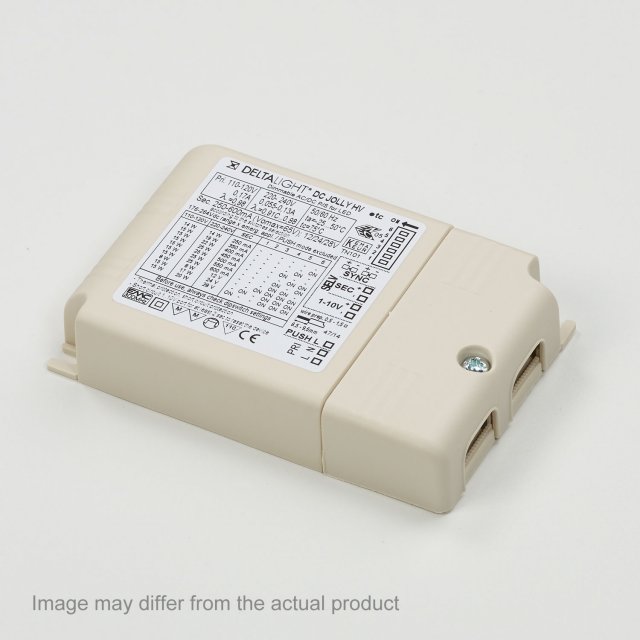

LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
General
| Location | Interior |
| Cutout shape | round |
| Cutout size (mm) | 72 |
| IP | IP20 |
| Weight (kg) | 0.2 |
| Information | OUTPUT: 250mA / 13W (110V:13W) / 15-53V-DC 350mA / 18W (110V:15W) / 10-53V-DC 450mA / 23W (110V:15W) / 5-52V-DC 500mA / 25W (110V:15W) / 2-50V-DC 650mA / 32W (110V:15W) / 2-49V-DC 700mA / 32W (110V:15W) / 2-46V-DC 900mA / 20W (110V:15W) / 2-22V-DC λ > 0,9 Inrush current : 5A - 50µs @ 230V-AC Max. 50 units on circuit breaker B 16A @ 230V-AC |
Electrical
| Voltage | 110-240V / 0|50-60Hz |
| Class | II |

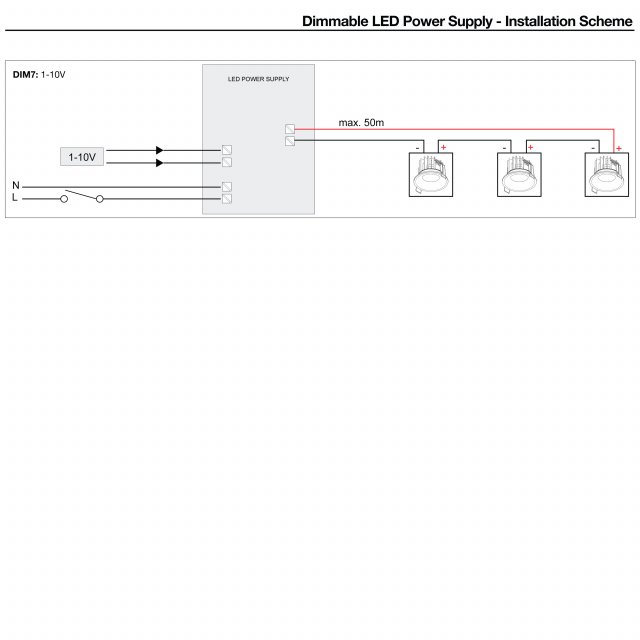

| Dimming type | 1-10V or push button |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
