New

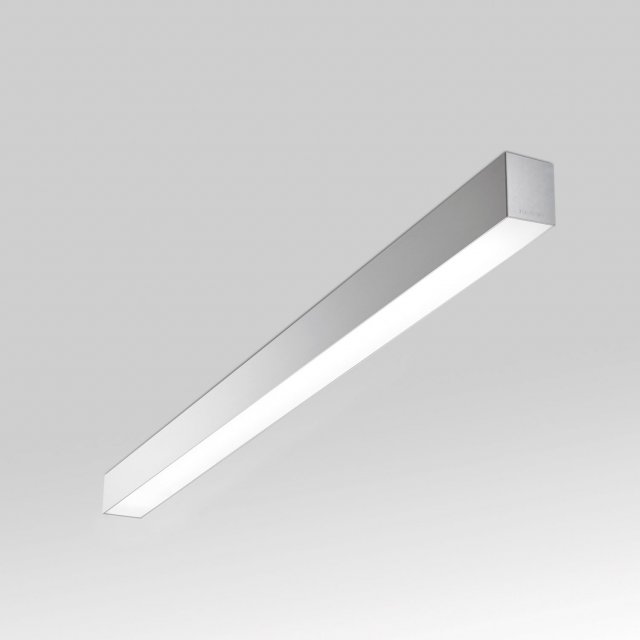

STREAMLINER 70S P2483 ANO
ALU ANODIZED - 389 011 243 E ANO
CRI
CCT
General
| Location | Interior |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted, Suspended |
| IP | IP20 |
| Weight (kg) | 3.6 |
| Adjustability | non adjustable |
| Information | INCL.SRL PC SBL |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | non-dimmable |
| Energy class | C |
Lightsource
| Light source | LED |
| LED information | LED cluster 24,5W / CRI>90 / 3000K / 3802lm |
| TM-30 Values | R9: 50 / Rf: 92 / Rg: 100 |
| SDCM | SDCM3 |
| Riskgroup | RG2 |
| LM80 | L80 > 60000 |
| LED technics (light source) | 3802lm // 24,5W // 155lm/W |
| LED technics (luminaire) | 2957lm // 28W // 105lm/W |
Additional
| Options | SUSPENSION SET 22 1.6m
CABLE BASE R / S
COVERSET R 62-90-100 / S 62-80-90 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Electric connection parts
| Product name | Class | ||
|---|---|---|---|
 | CONNECTION ST B | I | Add to pinlist |
 | CONNECTION ST W | I | Add to pinlist |
Current supply
Suspension parts
| Product name | ||
|---|---|---|
 | SUSPENSION SET 22 1,6m | Add to pinlist |
