Specifications | Downloads | Finish your specifications
CRI
Beam angle
CCT

General

Location
Interior
CCT
2700K
IP
IP20
Weight (kg)
0.3
Adjustability
0° to 85° swiveling, 360° rotatable
Information
REFLECTOR FL-30° EXCL.LED POWER SUPPLY 48V-DC SPY 27 L TUBE B included

Electrical

Voltage
48V-DC
Class
III
Dimming type
DALI
Energy class
D

Lightsource

Light source
LED
LED information
LED array 5,8W / CRI>90 (R9: 60) / 2700K / 753lm
TM-30 Values
Rf: 89 / Rg: 100
SDCM
SDCM1
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
753lm // 5,8W // 129lm/W
LED technics (luminaire)
276lm // 7W // 41lm/W

Additional

Remarks
Requirements
LED POWER SUPPLY 48V-DC
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Finish your specifications

Use the information listed below to complete your product

requirement

Compatibility

Interesting projects

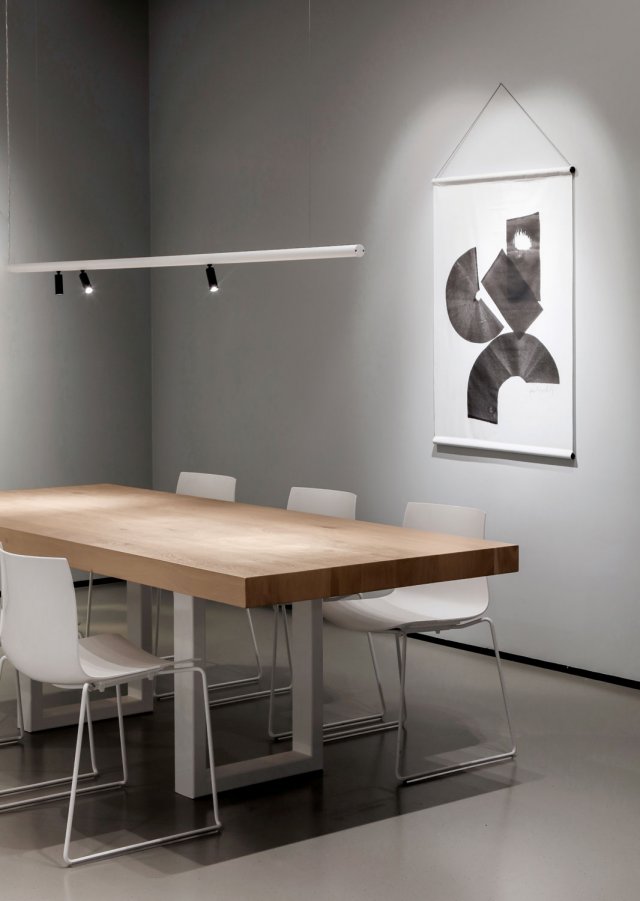

Delta Light HQ showroom 2019 (BE)

2019 is the year we celebrate 30 YEARS of Delta Light. 30 years of striving for product and service excellence. A 30 year young family business, grown from a local Belgian manufacturer to become a global business, providing architectural lighting solutions for small and large projects. The Delta Light HQ Showroom is undeniably the showcase of the very latest creations. You will discover, among other things, the slender NEEDLE, designed by Niteo Lighting. You will find the slim and playfull LASS-OH that glides through the room as a snake sliding through the greensward. New magnetic profiles which can now be mounted in a matrix web. And in our cosy corner, the whole Reflections range. The Delta Light showroom is a model of expertise, innovation and creativity. Visiting is experiencing Pure Lighting Pleasure.
